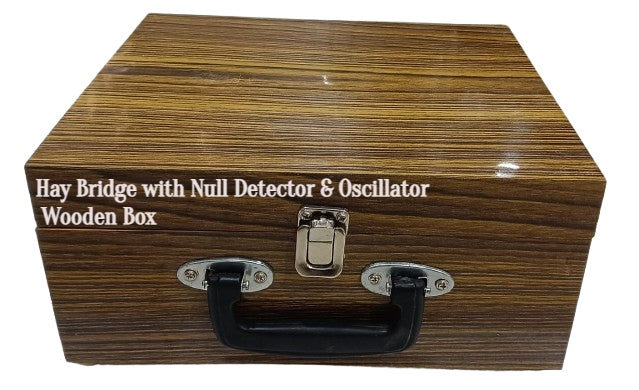

Hays Bridge with Null Detector & Oscillator With Wooden Box

SPECIFICATION: Hay’s Bridge (With Inbuilt Detector & Oscillator With Wooden Box)
➢ EXPERIMENT-Measurement of unknown self inductance of high quality factor Using
hay's bridge

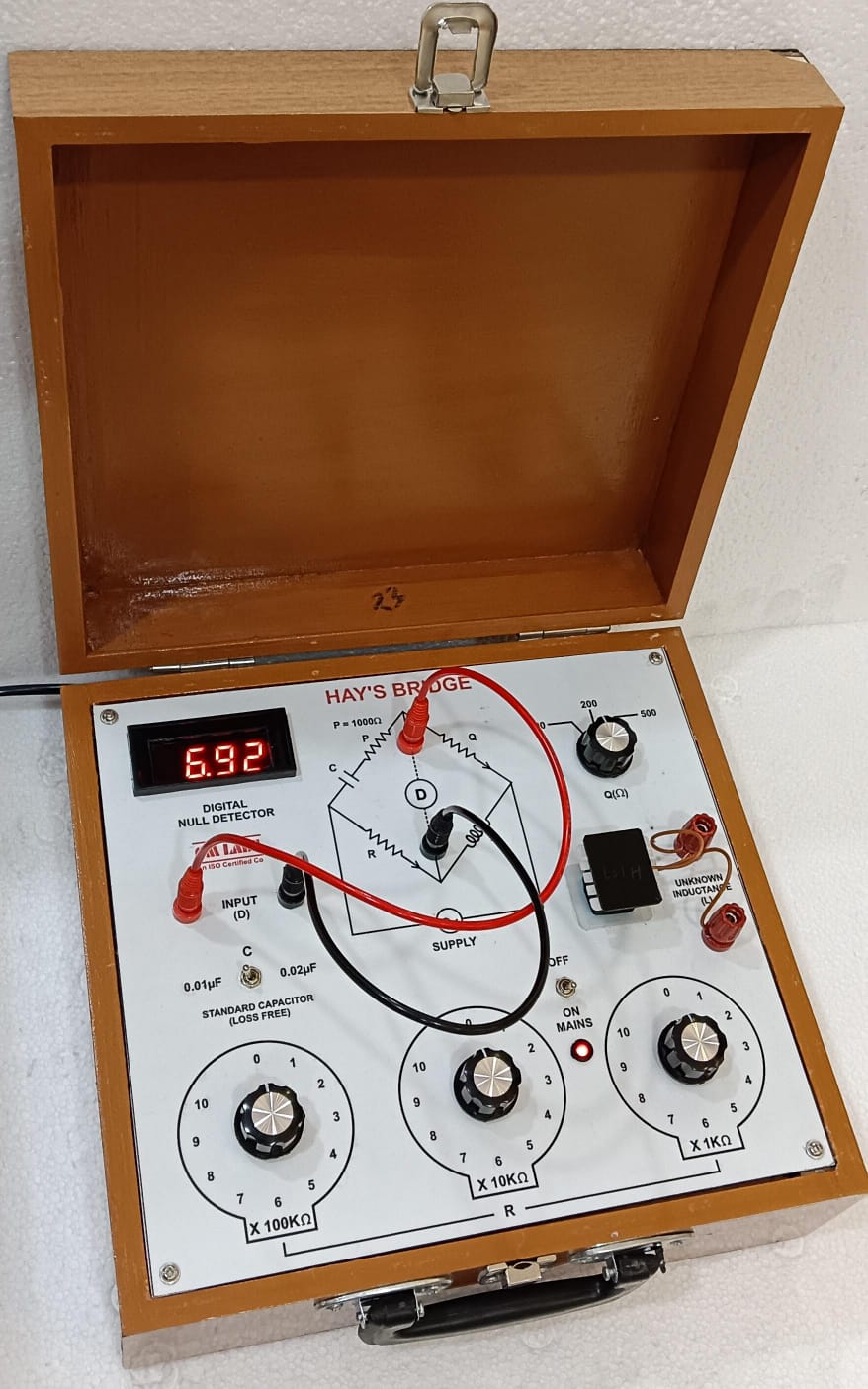

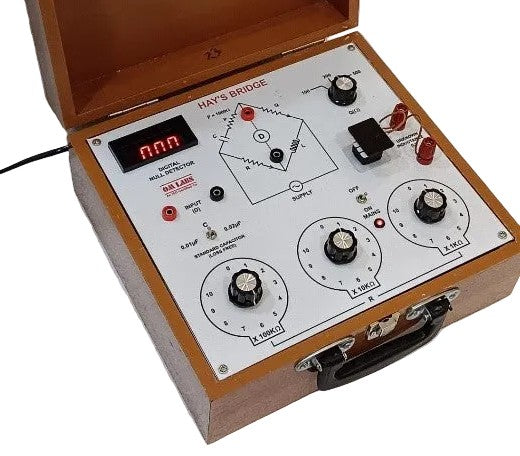

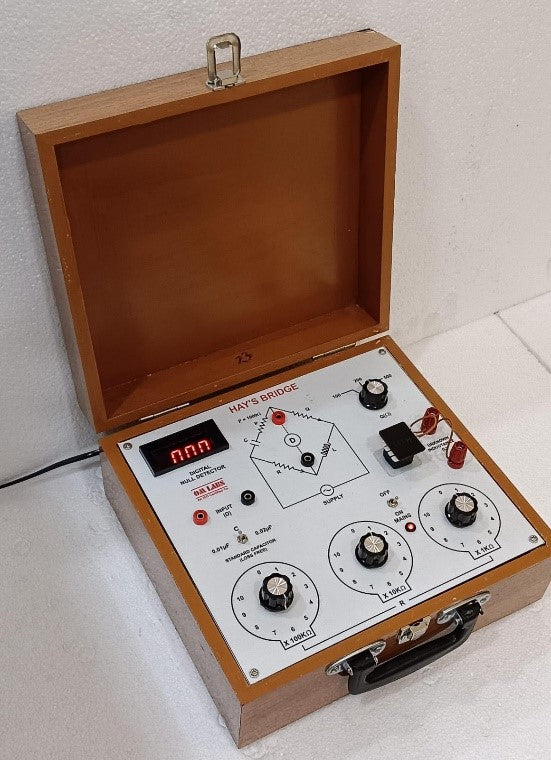

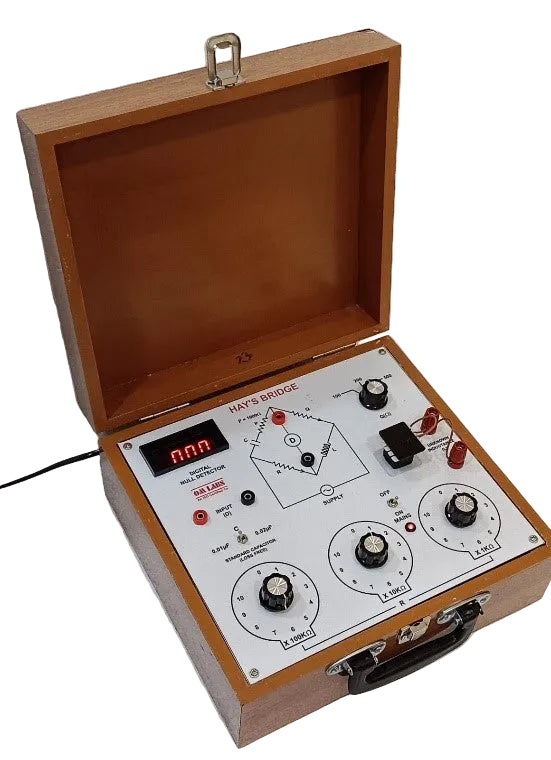

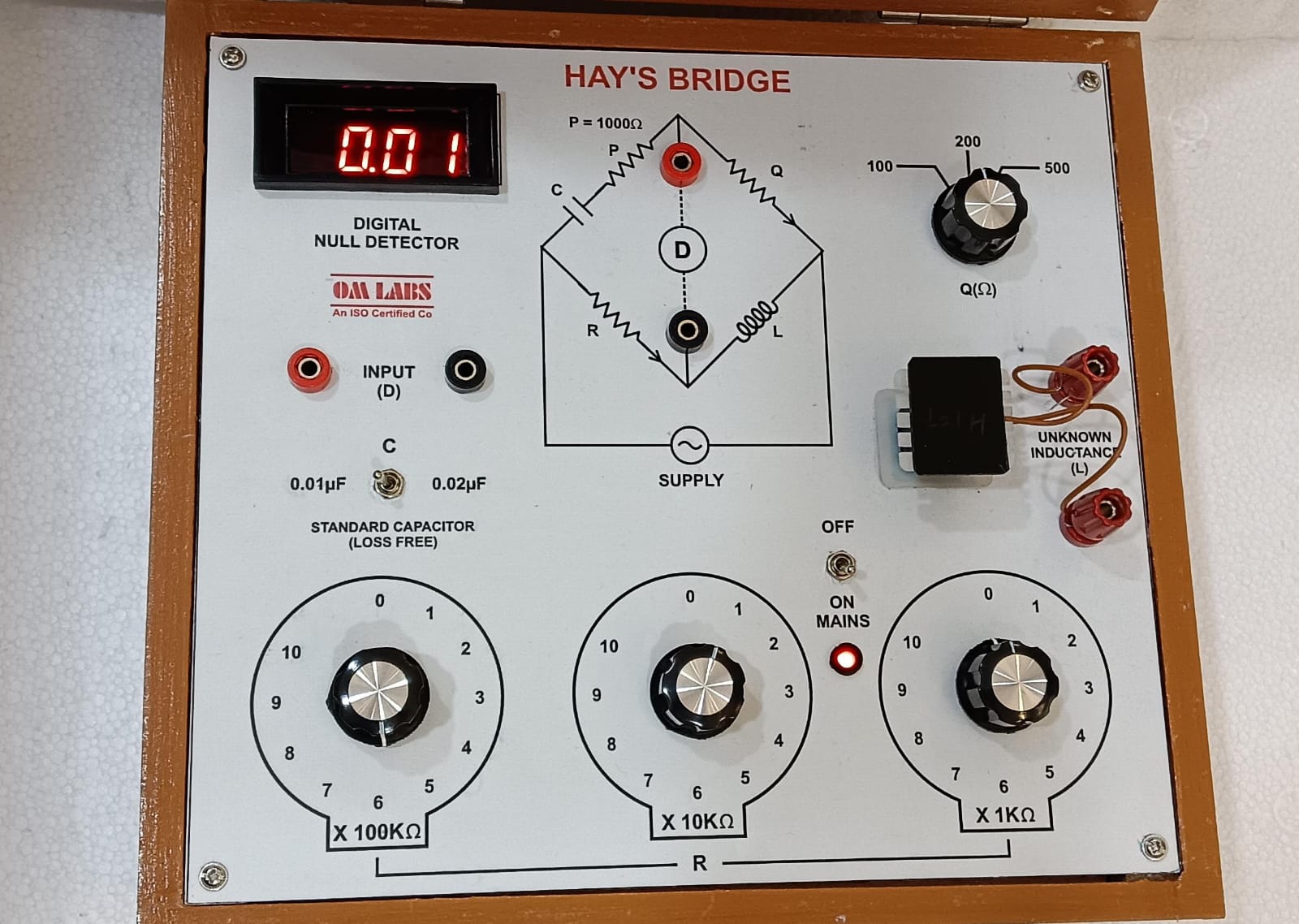

➢ MAIN FEATURES OF THE BRIDGE:
o R--- Three decade resistance dial having value 10-100ΚΩ, 10-10ΚΩ, 10-1ΚΩ
o Q--- resistance having value 100Ω, 200Ω, 500Ω.
o C--- Two fixed standard capacitors having values 0.01μf and 0.02μf.
o P--- Fixed standard resistance having value 1000 ohm.
o Terminals are provided for external connections to connect unknown inductance and
digital null detector
➢ FORMULA USED: L = QRC
➢ Where R and Q are standard resistances and C is a standard capacitor.
➢ Dimensions:32 x 28 x 16cm Approx.
➢ Weight:3.1 kg Approx.
➢ GST: General Standard 18%
➢ Packing: Card Board Box
➢ CATAGORIES: Electronics
➢ BRAND: OM LABS
➢ Product Code: OM-715
