Hall Effect Exrperiment

Specification:

Features: Hall Effect is an instrument for determination of mobility of charge carriers.

Experiment: Hall Effect is an instrument to determination of mobility of charges carriers.

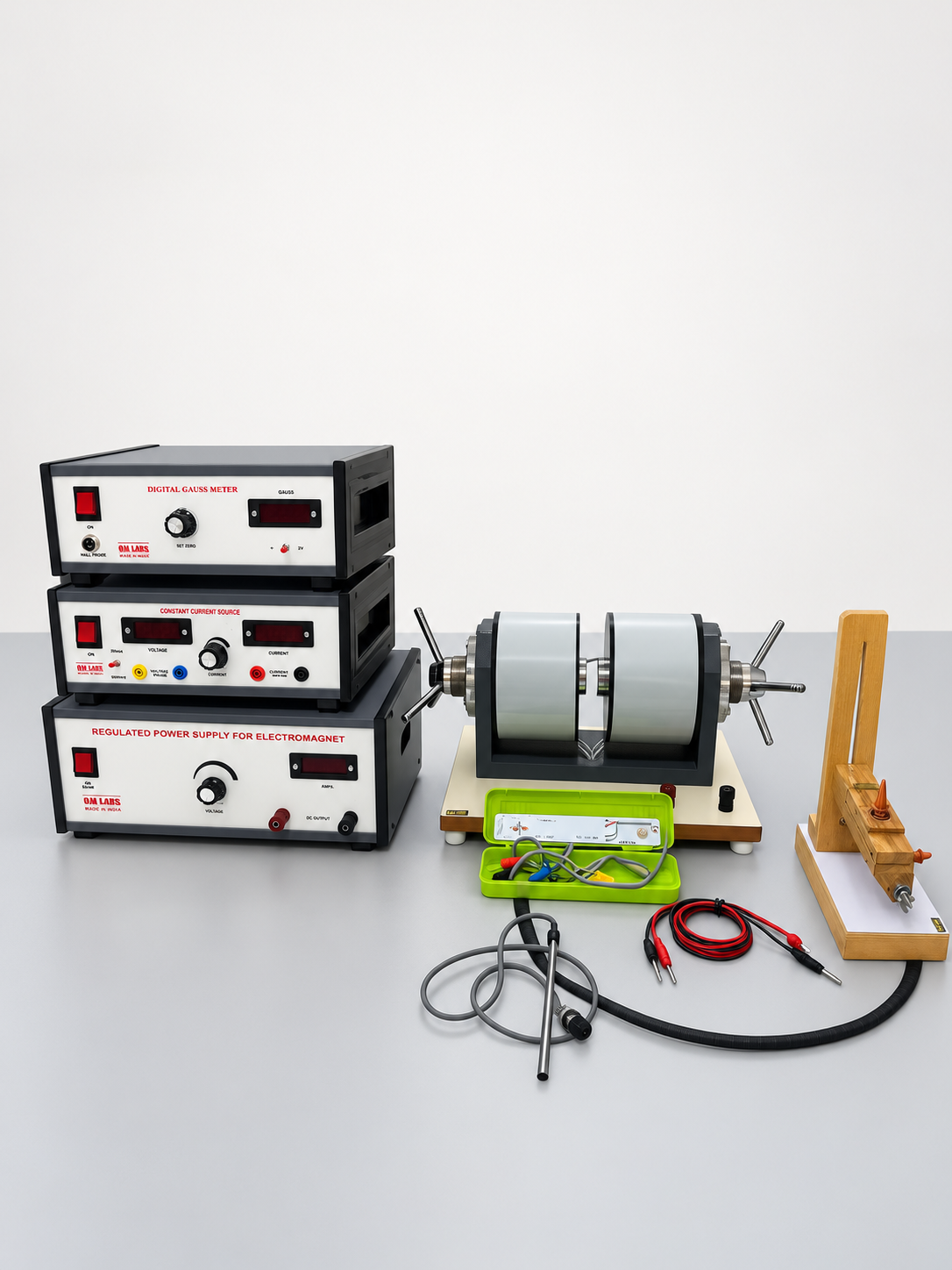

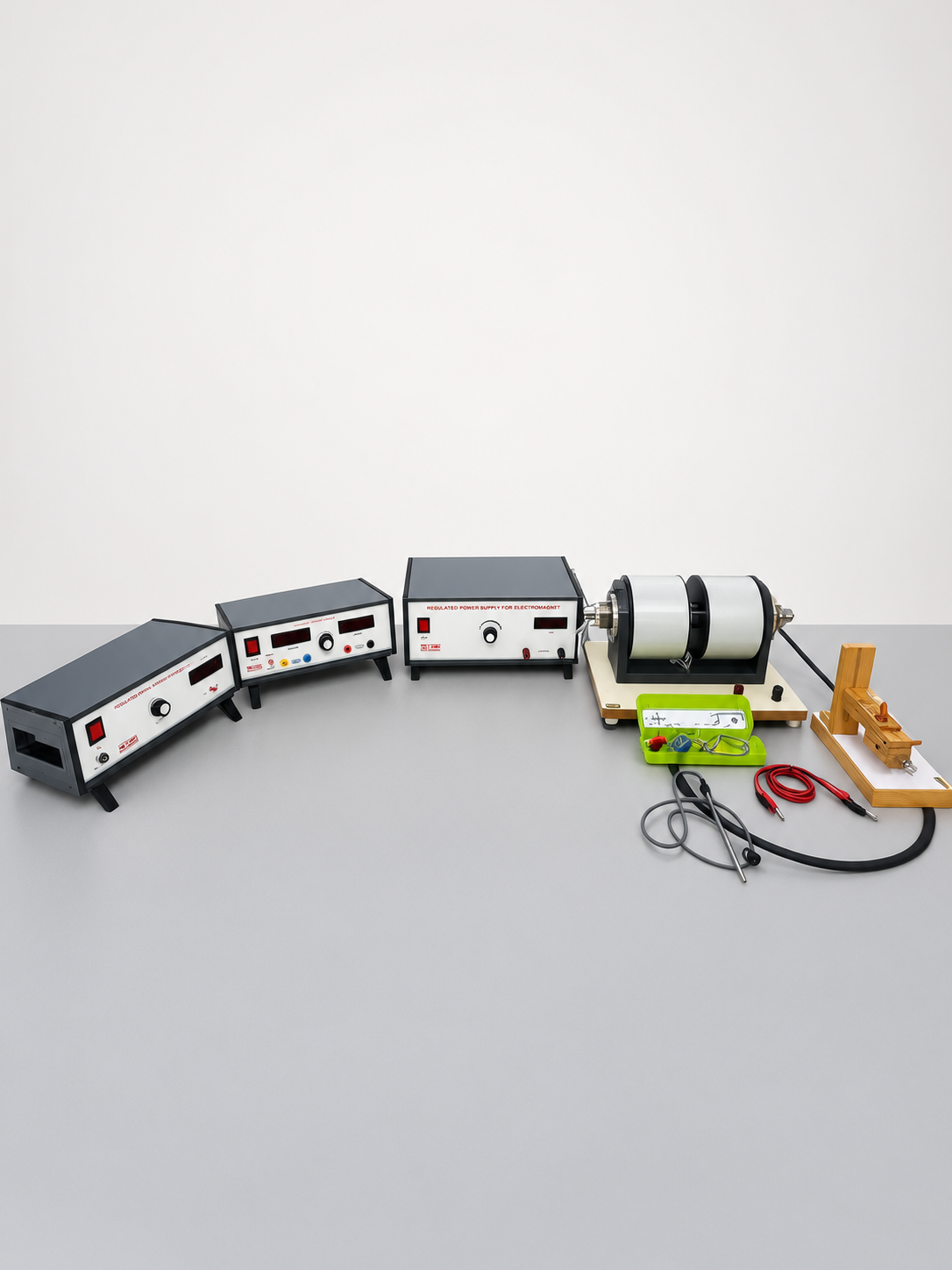

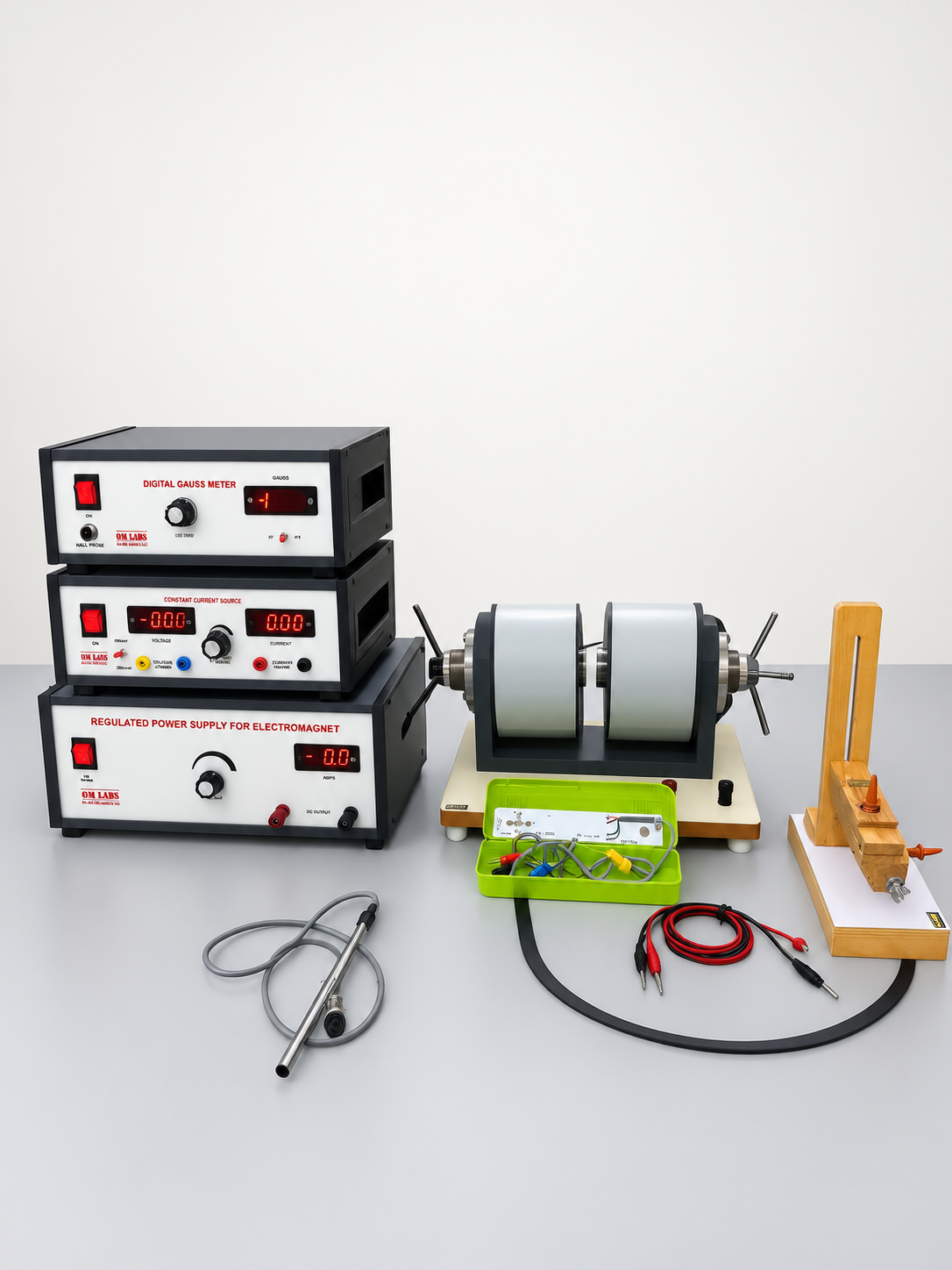

Apparatus Supply:

1. Electromagnet
2. Digital Power Supply for Electromagnet
3. Digital Gauss Meter
4. Constant Current Power Supply
5. Wooden Stand
6. Hall Crystals

• N and P Type Hall Crystal Mounted on PCB
• Termination: 4 Nos. (2mm for Voltage and 4mm for Current)
• 10mm Rod mounted on PCB to be held at Wooden Stand
• Type: N
• Size: 10mm × 8mm
• ELECTROMAGNET — (7.5K GAUSS)
• Apparatus Supply: Electromagnet
• Made of soft iron, specially designed for Hall Effect experiments.
• Mounted on a wooden base for stable performance.
• Pole pieces: 50mm dia., tapered type.
• Field: 7.5 Kg at 10mm air gap.
• Energizing coils: Two coils, each with total resistance of approximately 9 ohms.
• Termination: 4mm terminals (30A).
• Optional DC Power Supply 0–65V, 6A.
• Patch Cords: 4mm, 1 meter length, 2 Nos.
• DC POWER SUPPLY 0-65V, 6A (For Electromagnet)
• Main Features:
• Independent Output with Verica Control
• Supplies up to 350W total Power Highest Output Resolution: 1mV/1mA
• Insulation between three output channels effectively reduce the interference
• Low ripple Noise: < 300 u Vrms/mVpp
• Dimensions: 320mm (L) × 140mm (H) × 200mm (D)
• Weight: About 5.8 Kg
• Display Type: 3½ Digit LED Display for Current
• Protection: With Thermal Circuit Breaker
• DC Output Ratings: Voltage: 0–65V; Current: 0–6A
• Line Regulation: Variable Output: CV: < 0.01%+2mV, CC: < 0.01%+1mA
• Load Regulation: Variable Output: CV: < 0.01%+3mV, CC: < 0.01%+3mA
• Noise and Ripple( 20Hz - 7 Mhz): Variable Output: CV: < 300uVrms/2mV Vpp, CC: < 3mArms
• Setting Resolution: Voltage: 1mV; Current: 1mA
• DIGITAL GAUSS METER:
• Gauss Meter is an instrument to find the magnetic Field of any Object.
• Experiment: To Find Magnetic Flux (Electromagnetic Field Of any Object.)
• Range: 0–2K Gauss & 0–20K Gauss
• Resolution: 1 Gauss at 0–2K Gauss range
• Accuracy: ±0.5%
• Display: 3½ Digit, 7 Segment LED
• Power: 220V, 50Hz
• Special Feature: Indicates the direction of the magnetic field
• Gauss Probe

• CONSTANT CURRENT POWER SUPPLY
  • Digital Millivoltmeter
  • Range: 0–200mV / 2000mV
  • Minimum: 100µV
  • Accuracy: ±0.1% of reading ±1 digit
  • Selection: Through Toggle Switch
  • Digital Milli Ammeter
  • Range: 0–10mA / 20mA
  • Accuracy: ±0.1% of reading ±1 digit
  • Selection: Through Toggle Switch
  • Constant Current Power Supply Current:
  • Constant Current Supply: 0–20mA
  • Resolution: 10µA
  • Load Regulation: 0.03% for 0 to full load
  • Line Regulation: 0.05% for 10% variation
  • Termination: 4 Nos. (2mm for Voltage and 4mm for Current)




  Packing: Card Board Box

  Total Overall Dimension: 82 x 30 x 40cm

  Weight: 34.450kg

  GST: General Standard 18%

  HSN: 8541

  Category: Electronics

  Brand: OM LABS
