Specification:
To Study the Half wave rectifier and effect of different filter circuits on AC Ripple at different loads.

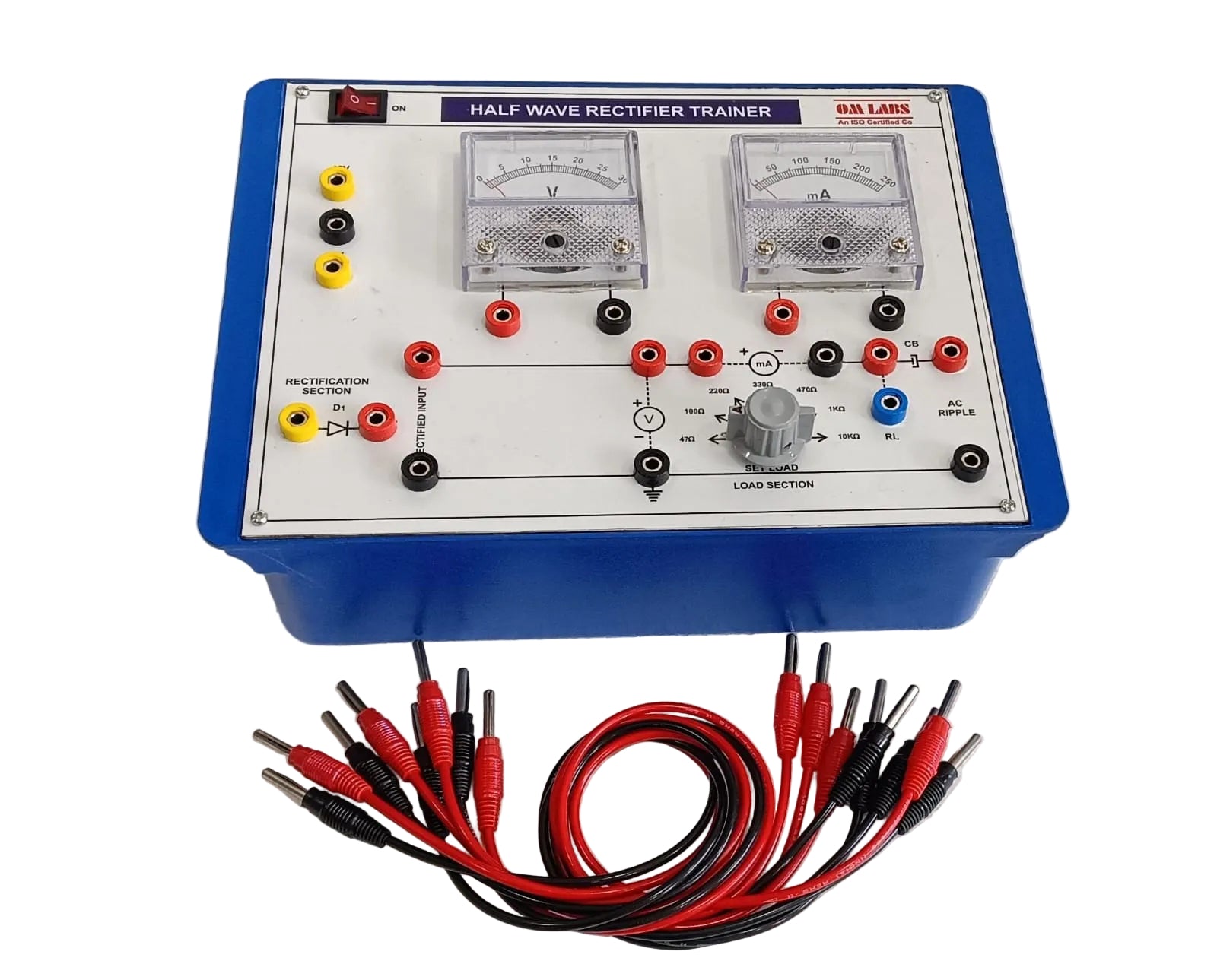

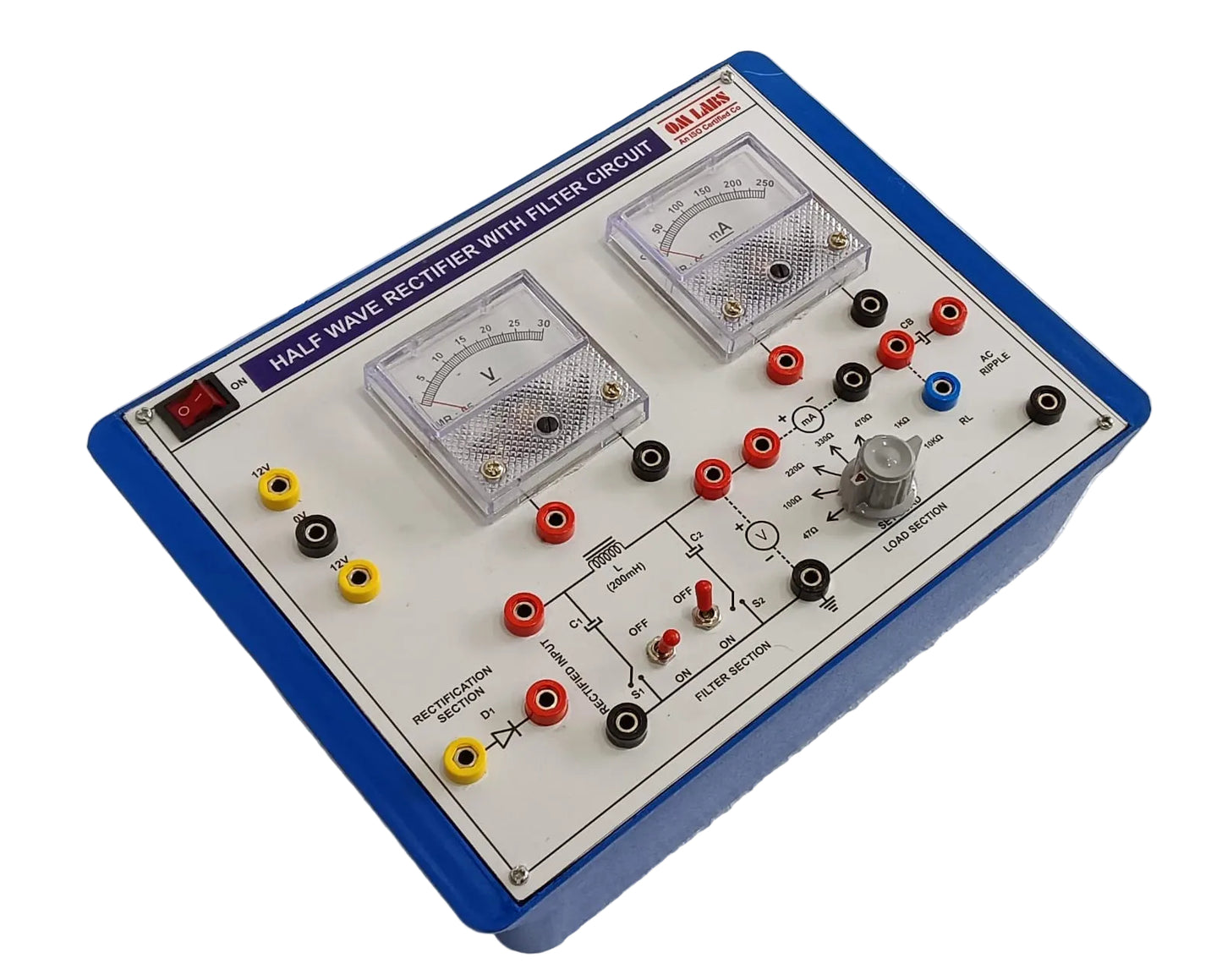

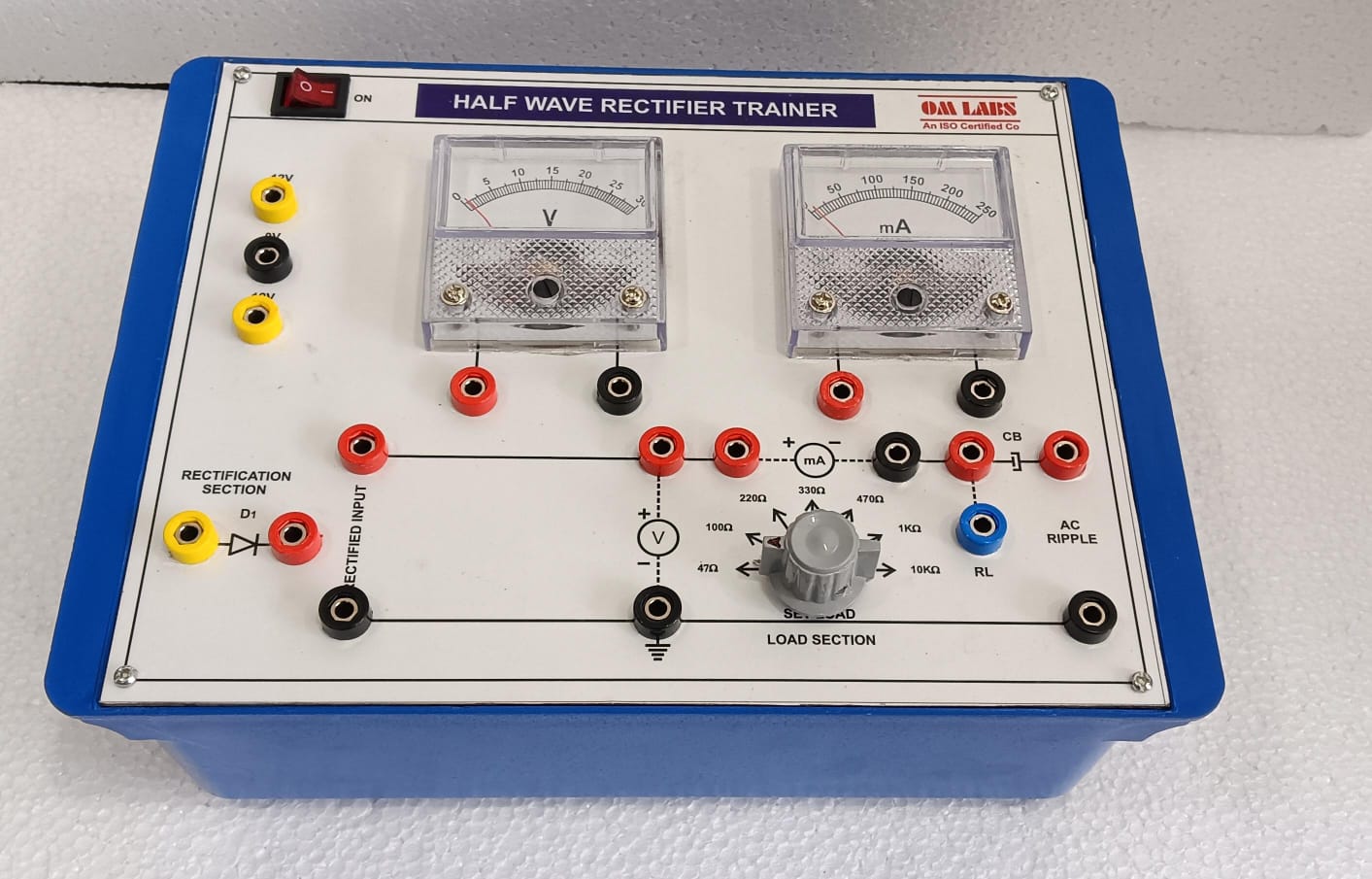

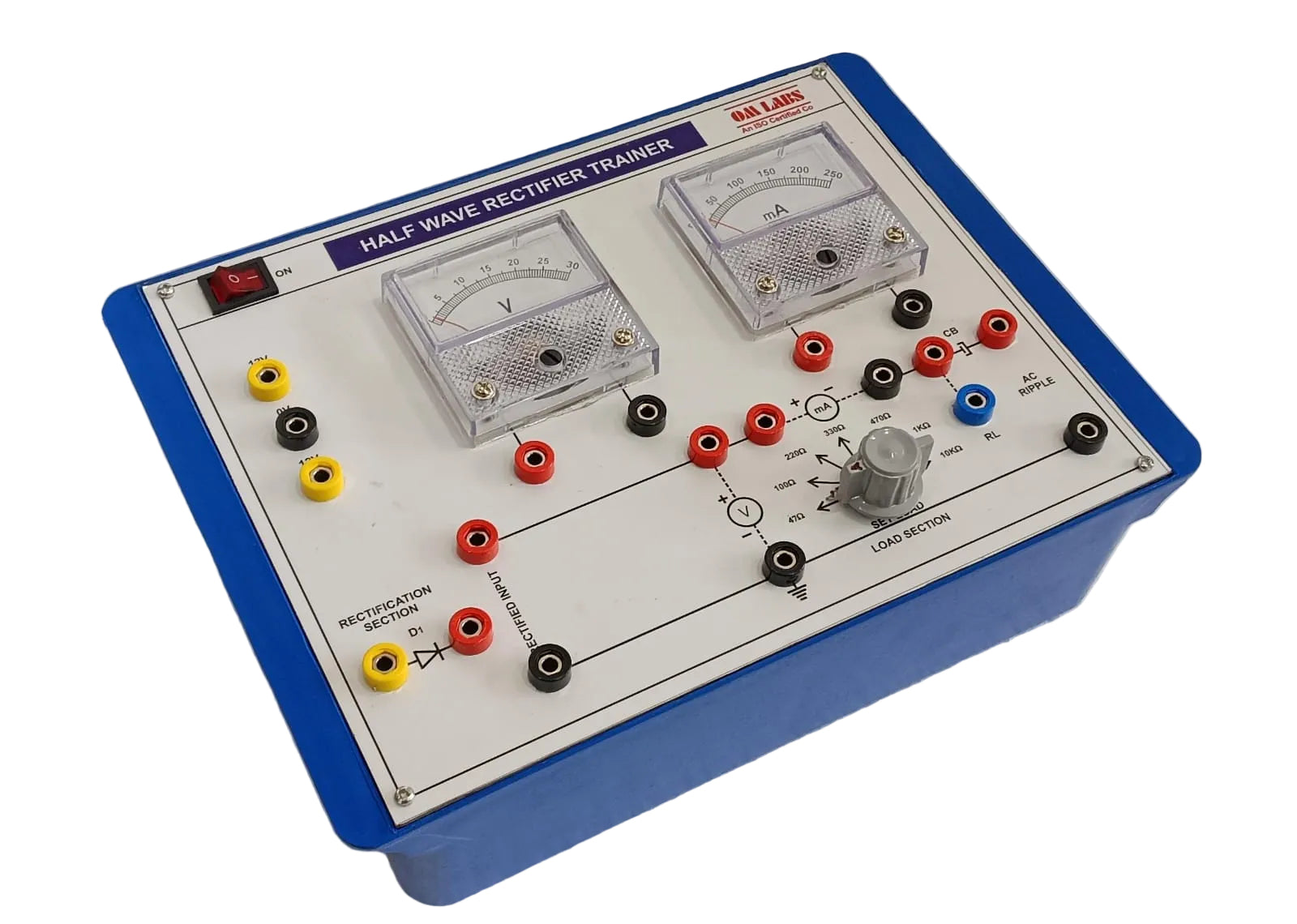

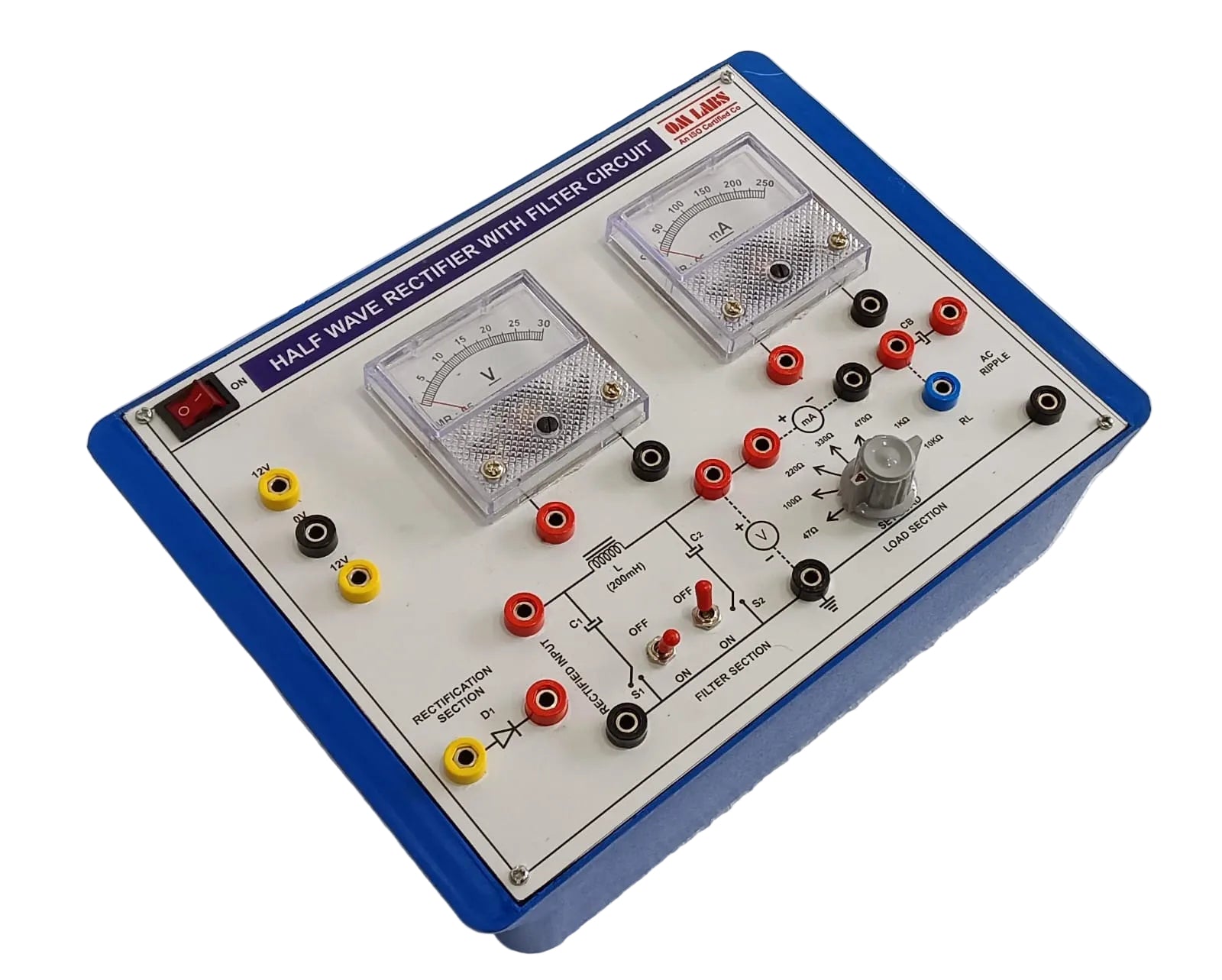

This instrument comprises of the following built in parts:-
- AC Stepdown Transformer of secondary output taps 12-0-12v /AC.
- One Diodes are mounted behind the front panel for rectification purpose.
- Filter section consists of two filter (capacitor) selected using toggle switches.
- Different types of load resistances from 47 ohm's to 10k ohm's can be selected through band switch provided on front panel .
- Two Meters to measure voltage & current are mounted on the front panel & connections brought out on 4mm Sockets.
Accessories:
- Patch cords
- Instruction manual
- Dimensions: 28 X 21 X 10 cm
- Weight: 1.5 kg Approx.
- HSN Code: 9031
- GST: General Standard 18%
- Brand: OM LABS
