Specifications:

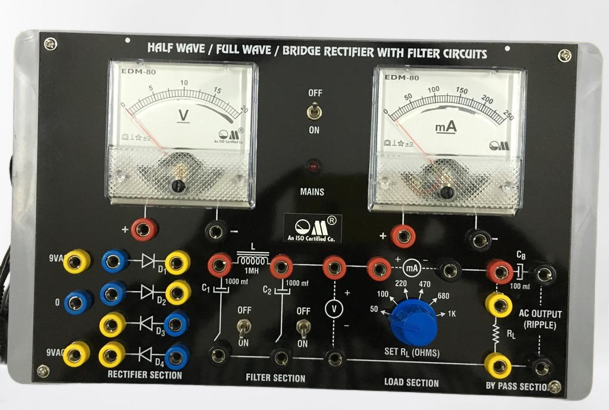

Half wave, Full wave & Bridge Rectifier Apparatus is designed to study the effect of different filter Circuits on AC Ripple at different loads
This Instruments comprises :
- AC Step down transformer of secondary output taps 9-0-9 Volts
- Four diodes are mounted behind the front panel for rectification purpose
- Filter section consists of two filters(capacitors) selected using toggle switches
- Different types of load resistances from 50 ohm to 500 ohm can be selected through bend switch provided on front panel
- Two Analog meters to measures Voltage & Current are mounted on the front panel and connections brought out on 4 mm sockets
-
Packing: Corrugated Box
-
Weight: 1.9 kg Approx.
-
Dimensions: 34 cm x 22 cm x 11 cm Approx.
-
Brand: OM LABS
-
HSN CODE: 8541
-
GST: General Standard 18%
| Weight |
2.0 kg
|
| Dimensions |
12 × 22 × 35 cm |
