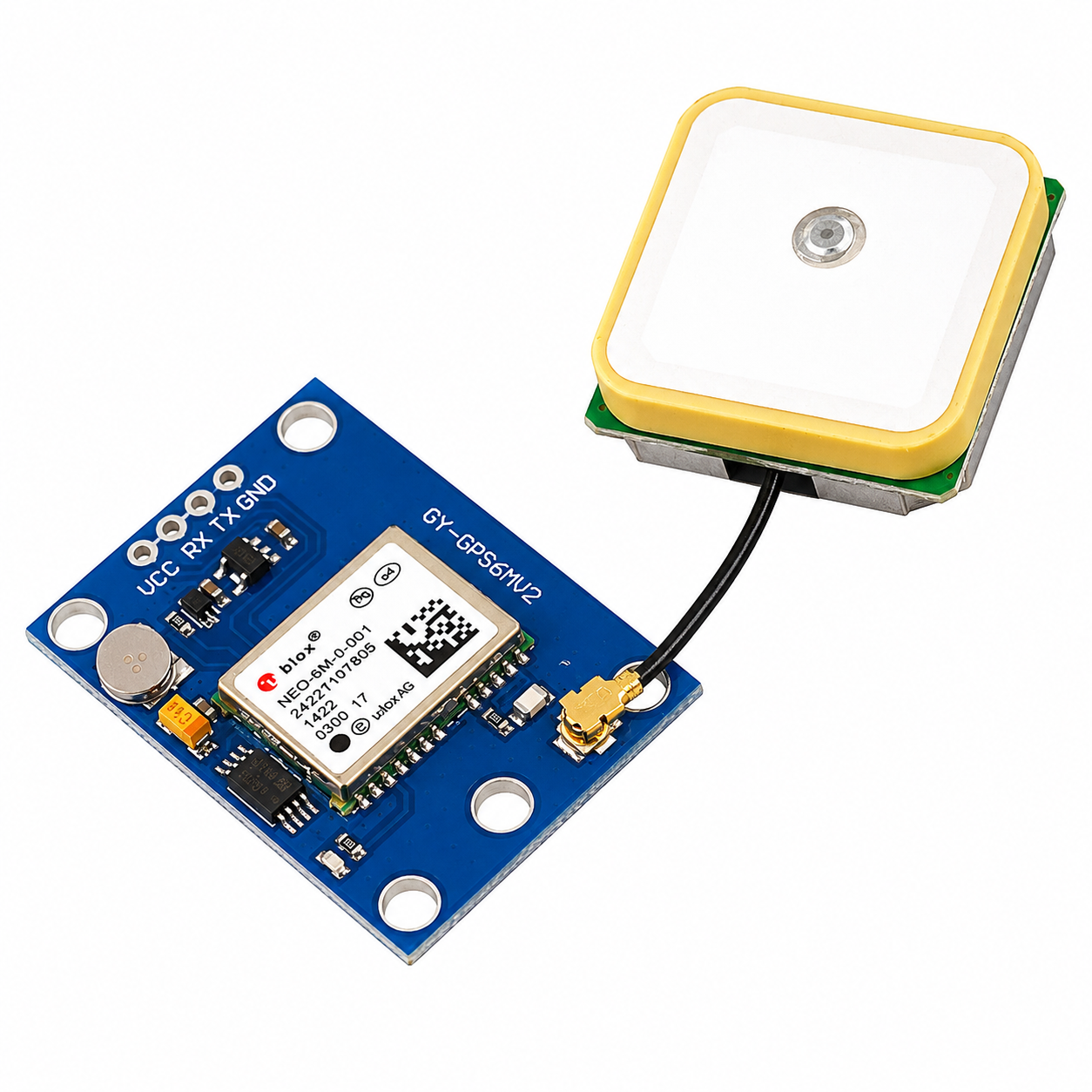

GY-NEO6MV2 GPS Receiver Module

Specification: The GY-NEO6MV2 is a compact GPS receiver module based on the u-blox NEO-6M chip, designed for integrating global positioning capabilities into embedded systems and prototypes. In a laboratory setting, it is primarily used for outdoor navigation tracking, time synchronization projects, and spatial data logging where high-precision positioning is required.

Technical Specifications:
* Module: u-blox NEO-6M
* Supply Voltage: 3.0V – 5.0V DC
* Interface: UART (TTL)
* Default Baud Rate: 9600 bps
* Antenna: External high-gain ceramic antenna
* Protocol: NMEA 0183
* Horizontal Position Accuracy: 2.5m CEP
* Time-to-First-Fix (Cold Start): 27s
* Update Rate: 1Hz (default), up to 5Hz
* Operating Temperature: -40°C to +85°C

Package: 9.7x6x0.5 cm Weight: 16gm
