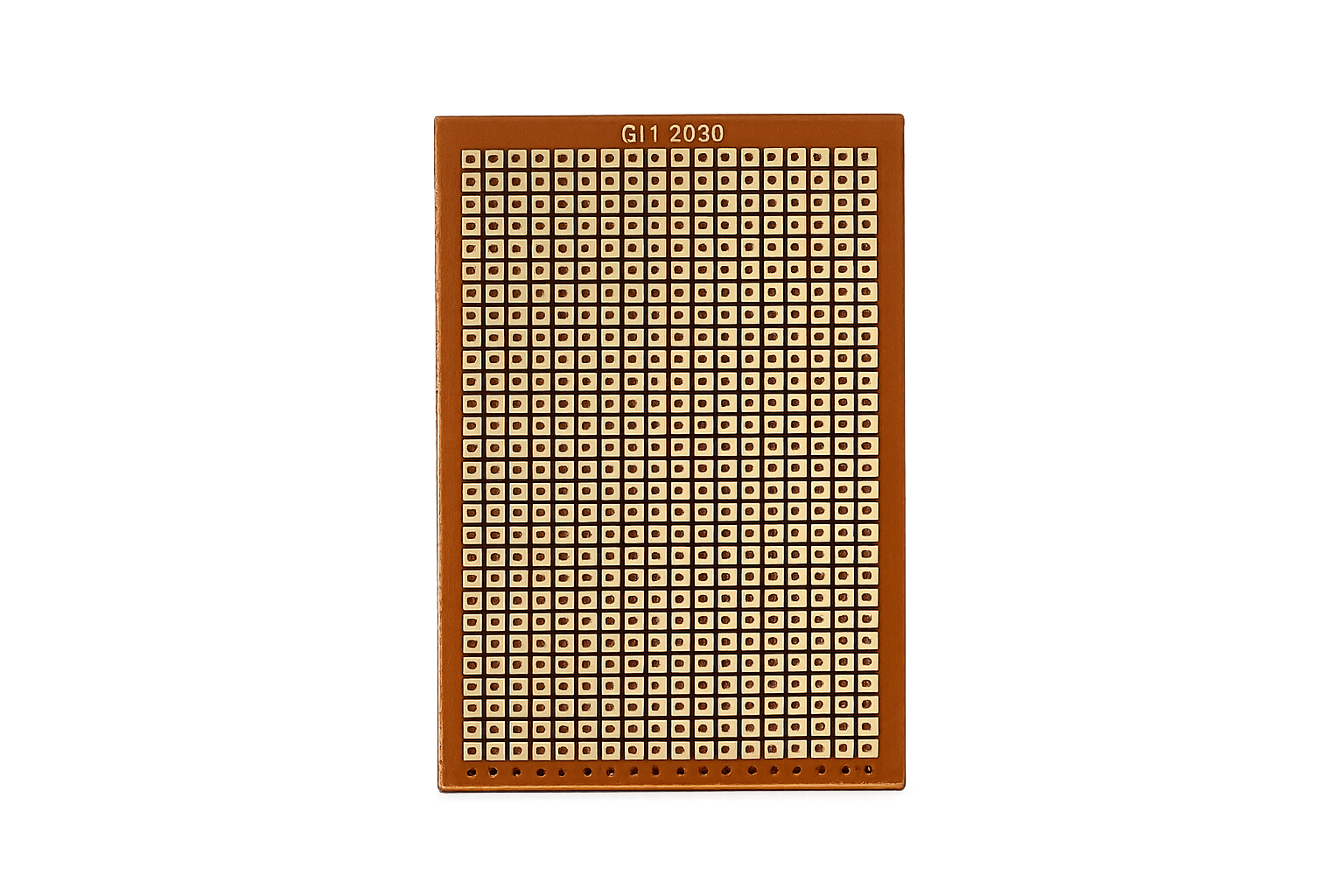

General Purpose PCB (Solderable Board) 80X55mm

Specification:

Ø  Product Name: General Purpose PCB

Ø  Model Number: GM 2030

Ø  Board Type: Single-Sided Prototype PCB

Ø  Base Material: Phenolic Paper Laminate (FR-2)

Ø  Board Colour: Brown

Ø  Pad Finish: Tinned Copper Pads

Ø  Hole Configuration: Individual Isolated Pads

Ø  Hole Pitch (Centre-to-Centre):2.54 mm (0.1")

Ø  Hole Diameter: 1.0 mm ± 0.1 mm

Ø  Pad Diameter: 2.0–2.2 mm

Ø  Board Dimensions: 80 mm × 55 mm

Ø  Board Thickness: 1.6 mm ± 0.2 mm

Ø  Board Weight: 6GM

Ø  Matrix Size: 20 × 30 Hole Grid

Ø  Number of Pads: Approximately 600 Pads

Ø  Copper Thickness: 35 µm (1 oz/ft²) Typical

Ø  Operating Temperature           -10°C to +85°C

Ø  Insulation Resistance: >100 MΩ

Ø  Dielectric Strength: ≥10 kV/mm

Ø  PCB design: Rectangular Shape

Ø  Electrical Specifications

Ø  Individual isolated copper pads for custom circuit design.

Ø  Suitable for low-voltage electronic circuits.

Ø  Good solder adhesion and electrical conductivity.

Ø  Supports prototype and educational circuit assembly.

Ø  Applications: STEM & Robotics Projects, Arduino and Microcontroller Circuits, Sensor Interface Boards, Educational Laboratory Experiments, DIY Electronics Projects

Ø  Testing and Development of Electronic Designs

Ø  Dimensions:9 x 8 x 3cm Approx.

Ø  Weight: 26gm
