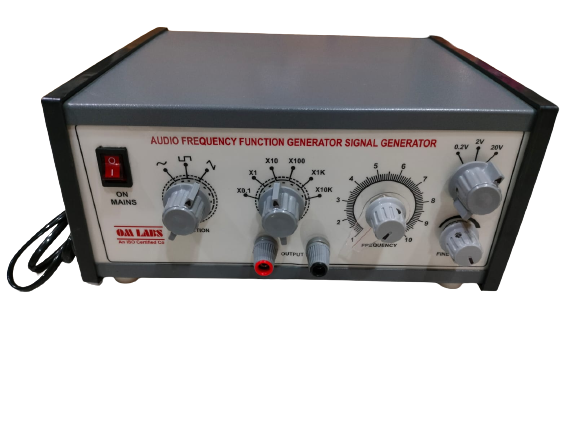

Function Generator up to 100 KHz

SPECIFICATIONS:

The Signal generator, which produces the Periodic signal having a frequency of Audio Frequency (AF) range is called AF Signal Generator.

It is easy to use, compact 1H_Z to 1MH_Z signal generator. The function generator can be used to test the frequency response of low frequency amplifiers, attenuators, filters etc. Besides being a source of the most commonly used waveforms. This unit is used to drive speakers in physical laboratory.

This Signal Generator Comprises of:

• Waveform: Sine, Square and Triangle, TTL synchronizing ramp and pulse.
• Frequency Range: 0.2H_Z to 100KH_Z
• Frequency Ranges: 0.2H_Z, 2H_Z, 20H_Z, 200H_Z, 2KH_Z, 20KH_Z, 100KH_Z
• Function out: 1_mv to 20V p-p
• Attention: -20dB, -40Bb
• DC Offset: ±15V
• Symmetry Control: Control for ramp and pulse
• General Power: 1 Phase 220V, 50H_Z ± 10%
• Fuse Protected: 0.5A
• Box: Metal Box
• Packing: Corrugated Box
• Weight: 1.9 kg Approx.
• Dimensions: 27 cm X 27 cm X 13 cm Approx.
• GST: General Standard 18%
• HSN CODE: 8541
• Brands: OM LABS
