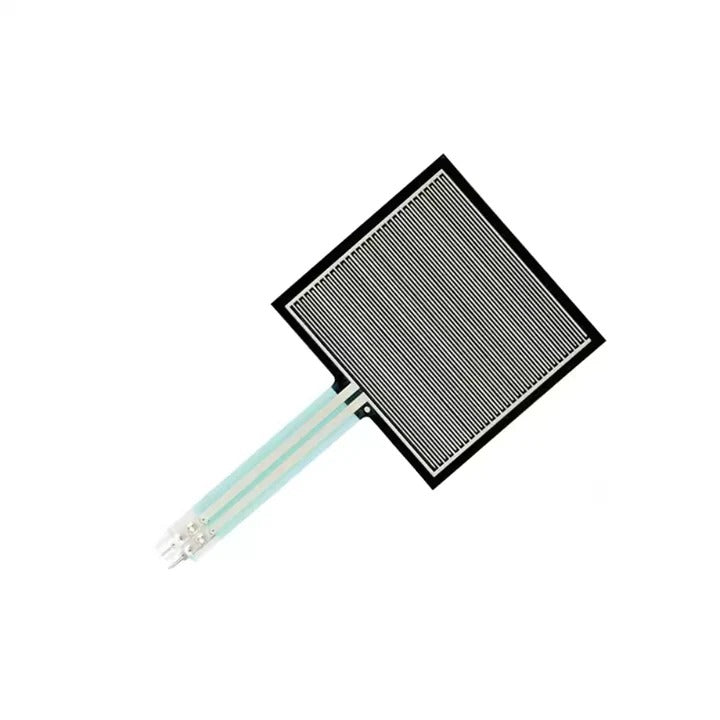

FORCE PRESSURE SENSOR

Specification: A force pressure sensor is a transducer that converts mechanical force or pressure into an electrical signal, typically used to measure load, tension, or compression. In a laboratory setting, it is essential for material testing, biomechanics research, and precision weighing applications where quantitative force data is required.

Technical Specifications:
* Sensing Type: Resistive or Capacitive
* Force Range: 0.1 N to 500 N (model dependent)
* Sensitivity: ±0.5% full scale
* Output Signal: Analog voltage (0–5V) or Digital (I2C/SPI)
* Operating Temperature: -20°C to +85°C
* Response Time: < 1 ms
* Interface: 4-pin header or shielded cable
* Durability: Up to 10 million actuations

Dimension: 4.2x 9cm, Weight: 1gm
