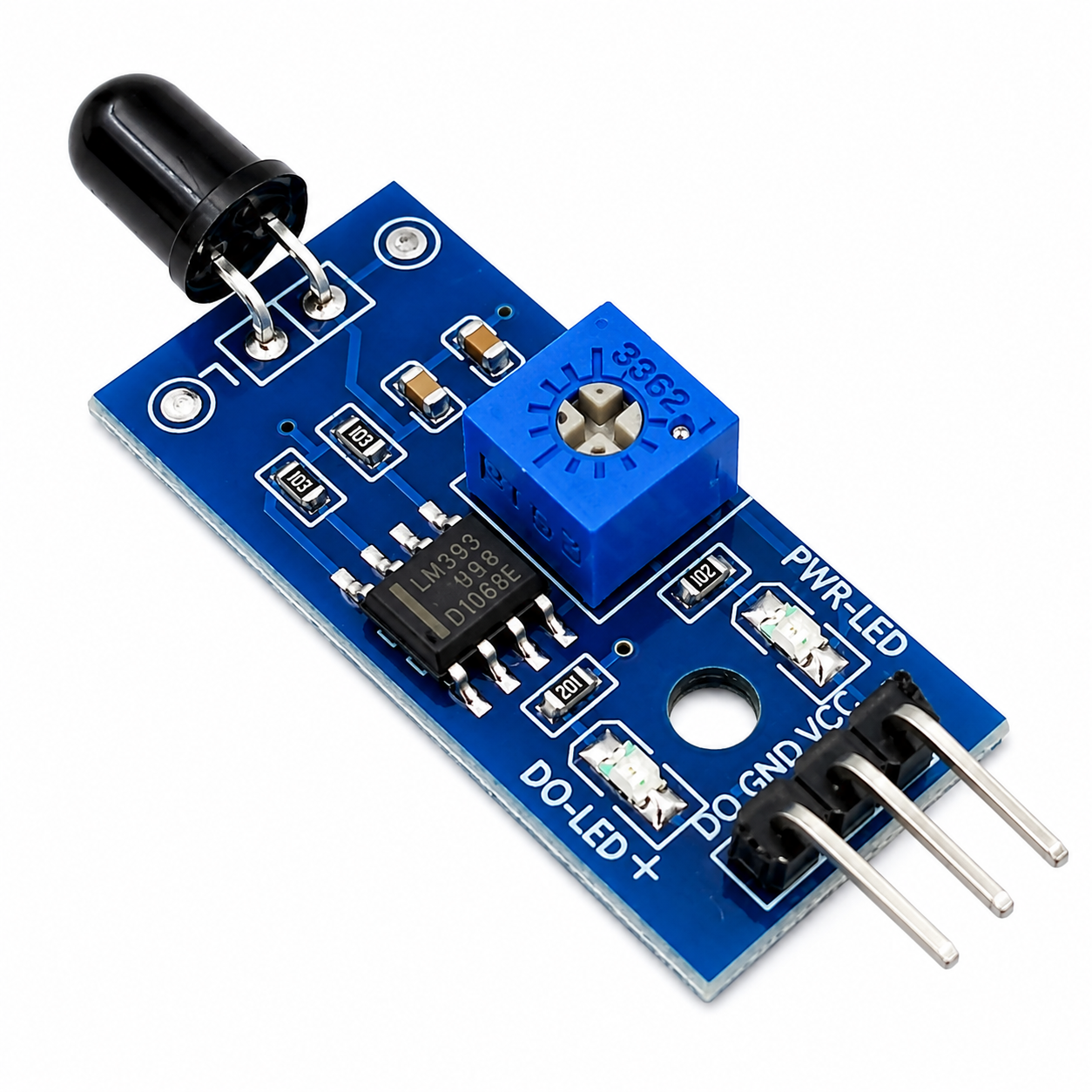

Flame IR Sensor Module

Flame IR Sensor Module

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 45.00
Rs. 65.00 Rs. 45.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31092
Tags: Analog Flame Sensor , Arduino Flame Sensor , Automation Sensor , Digital Flame Sensor , DIY Electronics , Electronics Component , Embedded System Sensor , Emergency Alarm Sensor , ESP32 Flame Sensor , Fire Alarm Module , Fire Detection Module , Fire Detection Sensor , Flame IR Sensor , Flame Sensor Module , Heat Detection Sensor , Industrial Fire Sensor , Infrared Flame Sensor , Infrared Sensor Module , IoT Fire Sensor , IR Flame Detector , Microcontroller Sensor , Raspberry Pi Flame Sensor , Robotics Sensor , Safety Sensor , Smart Home Sensor
View full details

Specification: The Flame IR Sensor Module is a specialized infrared-sensitive electronic component designed to detect electromagnetic radiation in the 760nm to 1100nm range. In a laboratory setting, it is primarily used for fire detection experiments, monitoring combustion processes, or as a flame-presence safety interlock for automated experimental setups.

Technical Specifications:
* Spectral Sensitivity Range: 760nm to 1100nm
* Detection Angle: Approximately 60 degrees
* Output Signal: Digital (high/low) and Analog (voltage)
* Operating Voltage: 3.3V to 5V DC
* Response Time: Microsecond scale
* Sensitivity Adjustment: On-board potentiometer
* Integrated Comparator: LM393 voltage comparator chip
* Mounting: M3 screw holes for easy integration into breadboards or test rigs
Dimension:32*14mm
Package: 9.3*6*1cm
Weight:3gm

Weight

0.025 kg

Dimensions 5 × 5 × 5 cm
