EMG Muscle Sensor Module V 3.0

EMG Muscle Sensor Module V 3.0

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 1,729.00
Rs. 2,470.00 Rs. 1,729.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31086
Tags: Analog EMG Sensor , Arduino EMG , Bio Signal Sensor , Bioelectric Sensor , Biofeedback Sensor , Biomedical Electronics , Biomedical Sensor , DIY Electronics , Electromyography Sensor , Electronics Module , EMG Muscle Sensor Module , EMG Sensor , ESP32 EMG , Health Monitoring Sensor , Human Machine Interface , IoT Sensor , Maker Project , Medical Sensor Module , Muscle Activity Sensor , Muscle Detection Module , Muscle Monitoring , Muscle Sensor , Muscle Signal Sensor , Prosthetic Sensor , Raspberry Pi EMG , Rehabilitation Sensor , Robotics Sensor , Sensor Module , Wearable Sensor
View full details

Specification: The EMG Muscle Sensor Module V3.0 is a signal acquisition board designed to measure the electrical activity of skeletal muscles via surface electromyography (Smeg). It is primarily used in laboratory settings for biomedical research, human-computer interface development, and physiological data logging.

Technical Specifications:
* Supply Voltage: ±3.3V to ±5V
* Form Factor: Compact PCB with mounting holes
* Signal Output: Analog (proportional to muscle activity)
* Connector Type: 3.5mm Jack (for electrodes)
* Adjustable Gain: On-board potentiometer for sensitivity calibration
* Compatibility: Arduino, Raspberry Pi, and other microcontrollers
* Operating Current: < 10mA
* Signal Processing: Built-in rectifying and smoothing circuit
Length of connecting cable: 1m
Dimension: 27x27mm

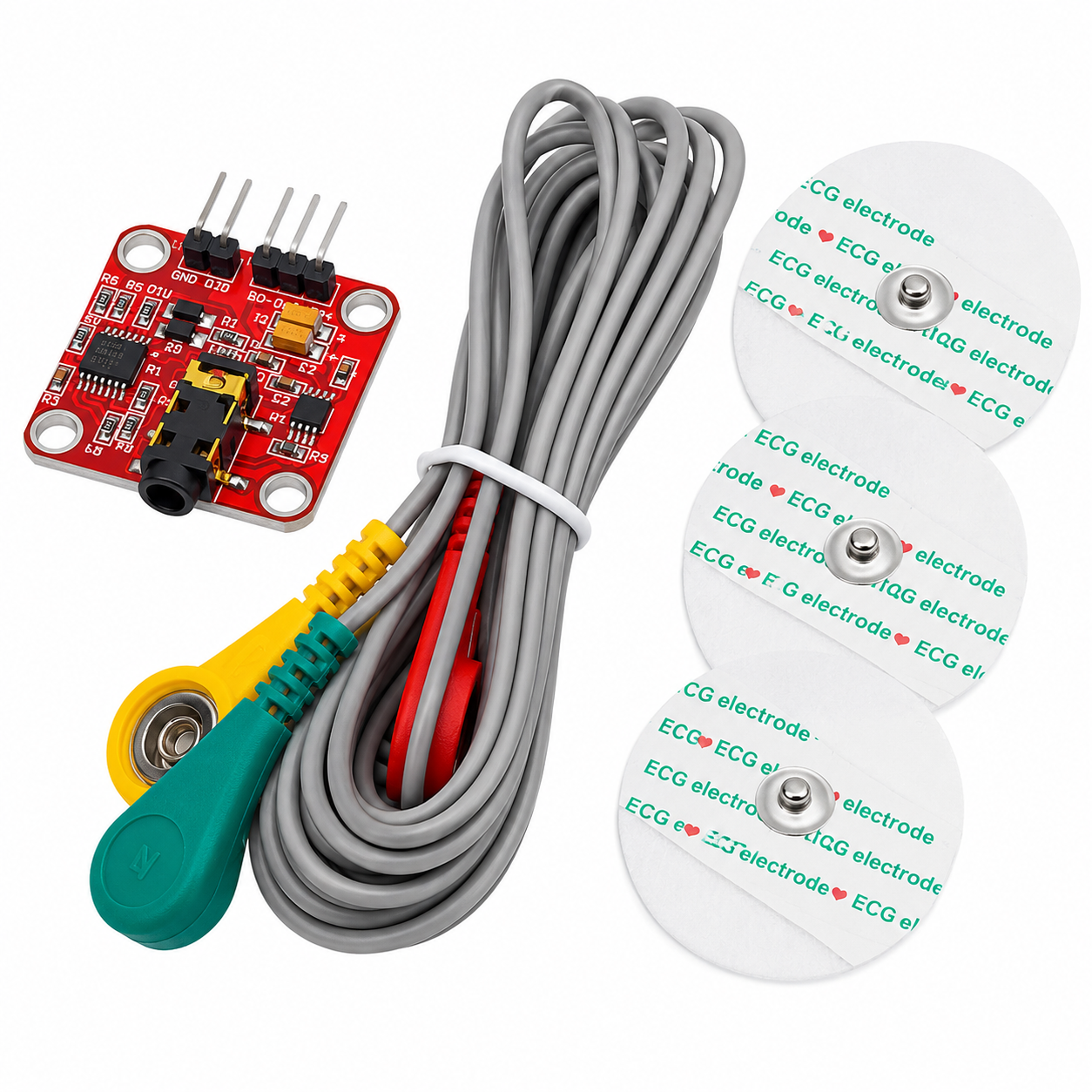

Package Includes:
1 x EMG Muscle Sensor V3.0 Module.
3 x Electrode Pad.
1 x Connecting Cable.
package: 15x9x1cm
Weight: 49gm

Weight

0.144 kg

Dimensions 4 × 12 × 18 cm
