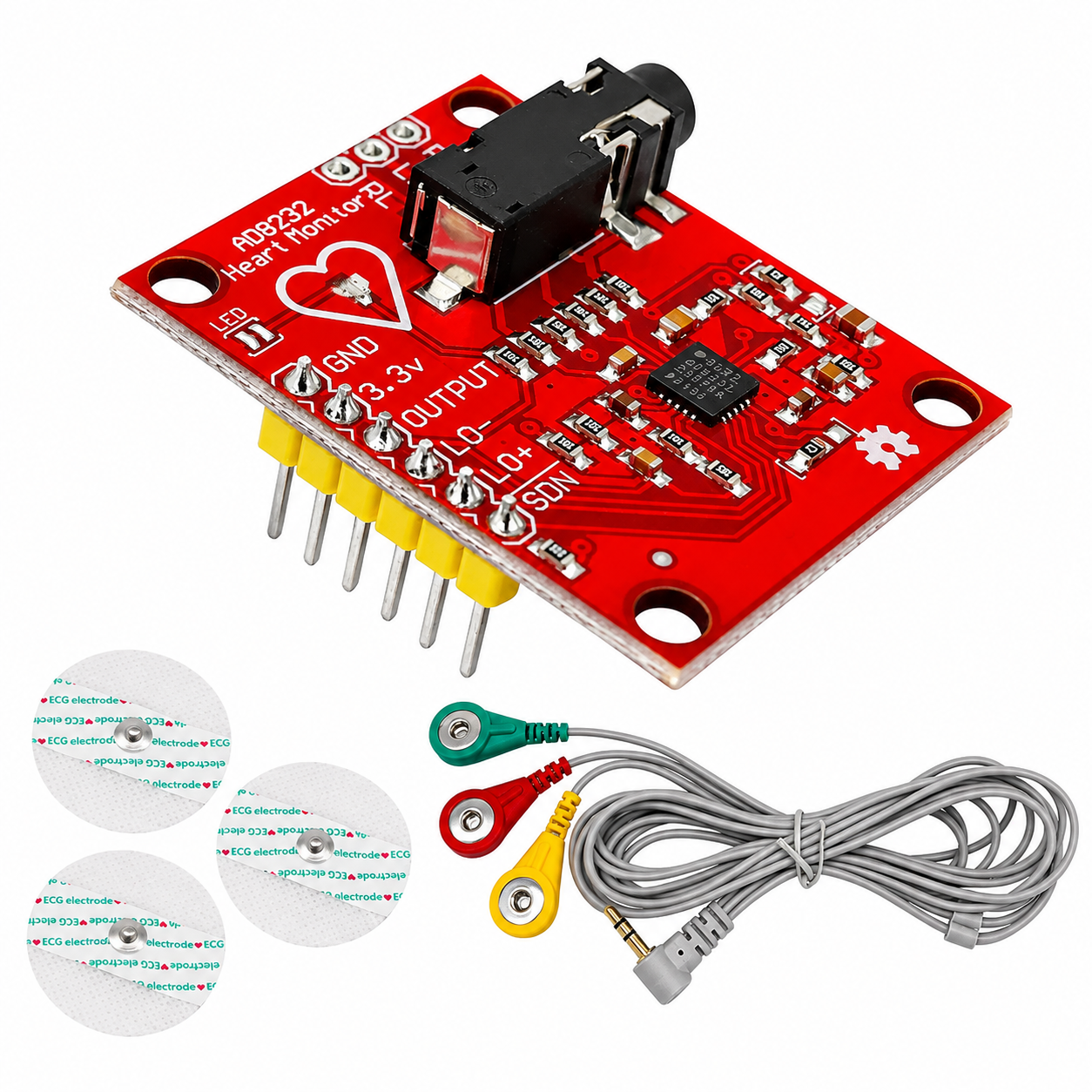

ECG SENSOR MODULE AD8232

ECG SENSOR MODULE AD8232

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 1,275.00
Rs. 1,820.00 Rs. 1,275.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31096
Tags: AD8232 , AD8232 ECG Module , Analog ECG Output , Arduino ECG Sensor , Arduino Sensor Module , Biomedical Sensor , Biopotential Sensor , DIY ECG Project , ECG Amplifier Module , ECG Heart Monitor , ECG Monitoring Kit , ECG Sensor Module , Electrocardiogram Sensor , Embedded Systems , ESP32 ECG Module , Health Monitoring Sensor , Heartbeat Detection , Medical Electronics , Patient Monitoring , Raspberry Pi ECG , Single Lead ECG , Wearable ECG
View full details

Specification: The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions. In a lab setting, it is primarily used for prototyping wearable health monitors, heart rate variability studies, and clinical-grade physiological signal acquisition systems.

Technical Specifications:
* Supply Voltage: 2.0V to 3.5V
* Integrated right leg drive (RLD) amplifier
* Lead-off detection capability
* Built-in high-pass and low-pass filtering
* Common-mode rejection ratio (CMRR): 80 dB (DC to 60 Hz)
* Operating temperature range: -40°C to +85°C
* Gain: 100 V/V
* Form factor: Small breakout board typically 35mm x 28mm

Package(Dimension): 15*9*1cm
Weight: 41gm

(The dimensions and weight mentioned in the additional information section are of the product with box/packaging.)

Weight

0.144 kg

Dimensions 4 × 12 × 18 cm
