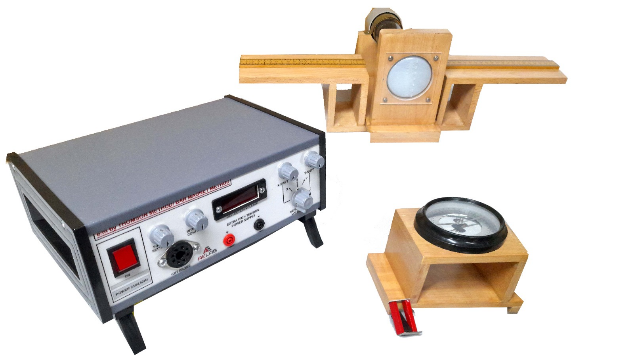

E/M Measurement setup (Thomson Method)

Specification:

Power supply unit that contains CRT

1.LED Panel Meter for Voltage measurement

2.Focus Intensity knob

3.Positive and Negative polarity adjustment

4.supply: 0 to 50 volts variable

>Cathode ray tube mounting on wooden stand

>Deflection magnetometer

>Pair bar magnet and Compass box

>Product Tutorial

Technical Specifications

Cathode Ray Tube

Distance between Plates:d=1.4cm

Length of Plates:l=3.23cm

Distance between Screen :L=14.5cm

and Plates (edge)

Focusing Voltage :Variable 0 - 300V DC

Intensity Adjustment Voltage:Variable 0 - 60V DC

Deflection Voltage :Variable 0 - 50V

Scale :0 - 30cm each side

CRT connection :Octal socket

Deflection magnetometer :0 to 90°

Mains :230V AC ±10%, 50Hz

Fuse :500mA

Product Dimensions & Weight

•  Dimensions 30 × 20.5 × 12.5 Cm | Weight: 2.860 kg
• Packing: Cardboard Box
• Packed Apparatus: Dimensions 33.4 × 26.5 × 13.5 Cm | Weight:3.140 kg
• Packed Accessories(Box-1): Dimensions 66× 15.5 × 13.5 Cm | Weight:1.740 kg
•  Packed Accessories(Box-2): Dimensions 34.5× 23.5 × 16 Cm | Weight:1.540 kg
• Overall Packing Dimensions: 69 x42 x16Cm
• Total Gross Weight: 6.420 kg
• GST: 18%
• HSN Code:9023
• Categories: Education Electronics Instrument & Apparatus
• Brand: OM LABS
