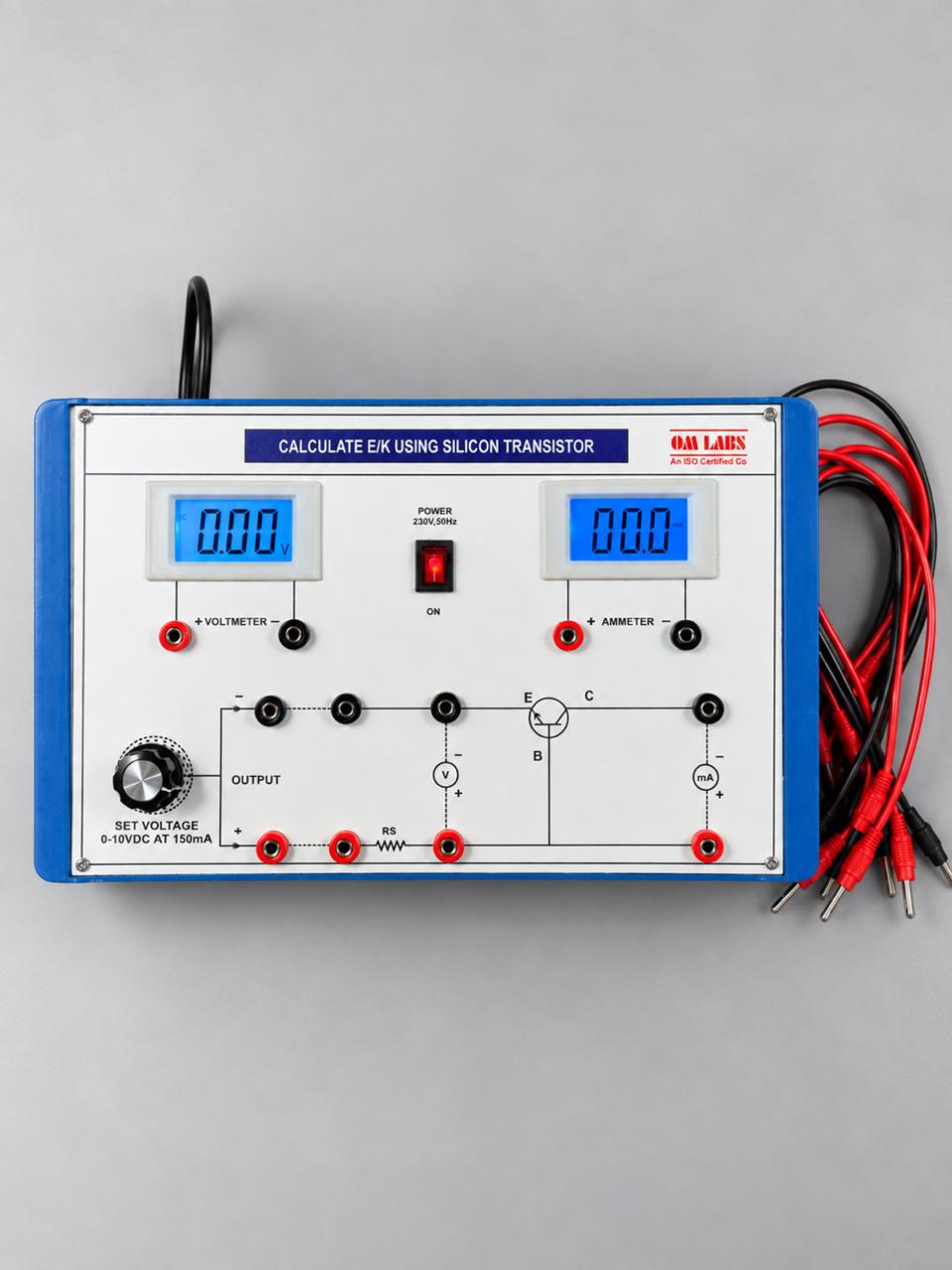

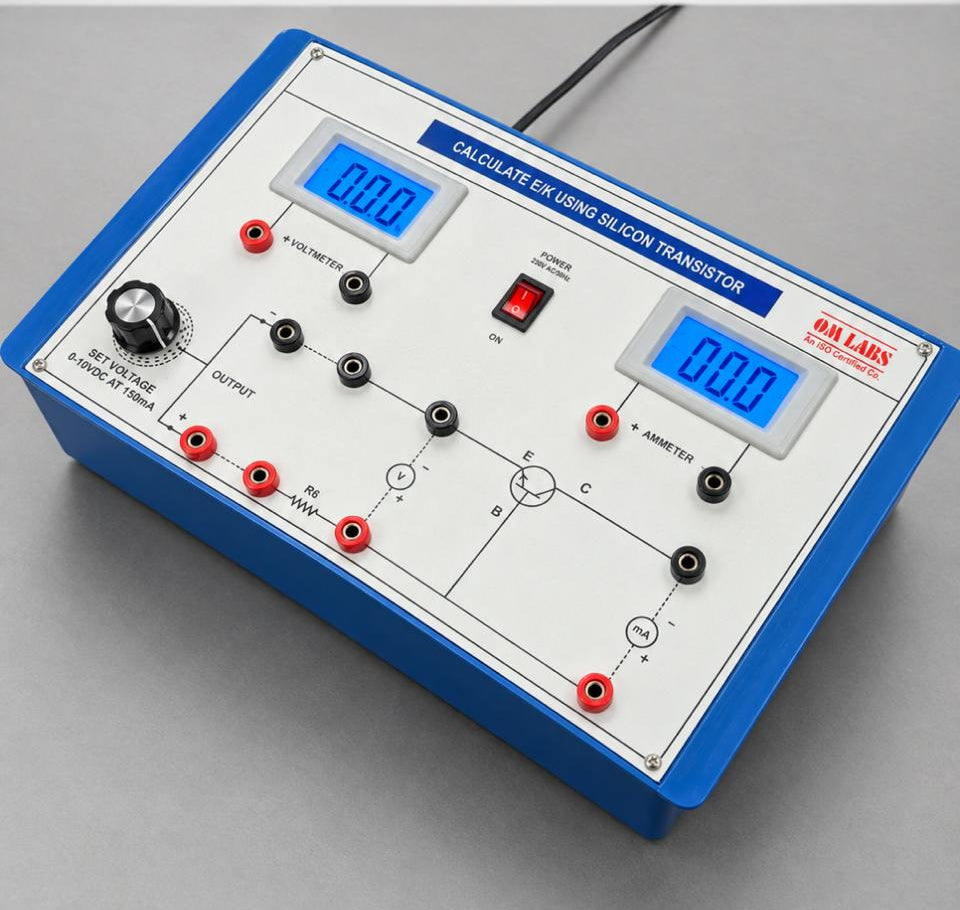

E/K Using Silicon Transistor Trainer Kit | 2 Digital Meter

E/K Using Silicon Transistor Trainer Kit | 2 Digital Meter

• DISPATCHED WITHIN 1-5 Days
• 24 HOURS RETURN/EXCHANGE POLICY
Rs. 6,300.00
Rs. 9,000.00 Rs. 6,300.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-736
Tags: Digital Electronics Trainer , Digital Meter Trainer , E/K Trainer Kit , Educational Electronics Kit , electronics , Electronics Laboratory Kit , Electronics Trainer Kit , Lab Training Equipment , Semiconductor Trainer , Silicon Transistor Trainer Kit , Transistor Experiment Kit , Transistor Testing Kit , Transistor Trainer
View full details

Specification:

Product Name: E/K Using Silicon Transistor Trainer Kit

Application: Experimental study and calculation of E/K using a silicon transistor

Transistor Type: Silicon Transistor

Transistor Terminals: E (Emitter), B (Base), C (Collector)

Built-in Voltmeter: Digital Voltmeter

Built-in Ammeter: Digital Ammeter

Voltage Supply: Variable DC supply, 0–10 V DC

Current Capacity: Up to 150 mA

Voltage Adjustment: Front-panel variable voltage control

Circuit Components: Built-in transistor circuit with resistor and test terminals

Connection Type:4 mm banana-type terminals

Power Switch: ON/OFF rocker switch

Display: Dual digital display for voltage and current

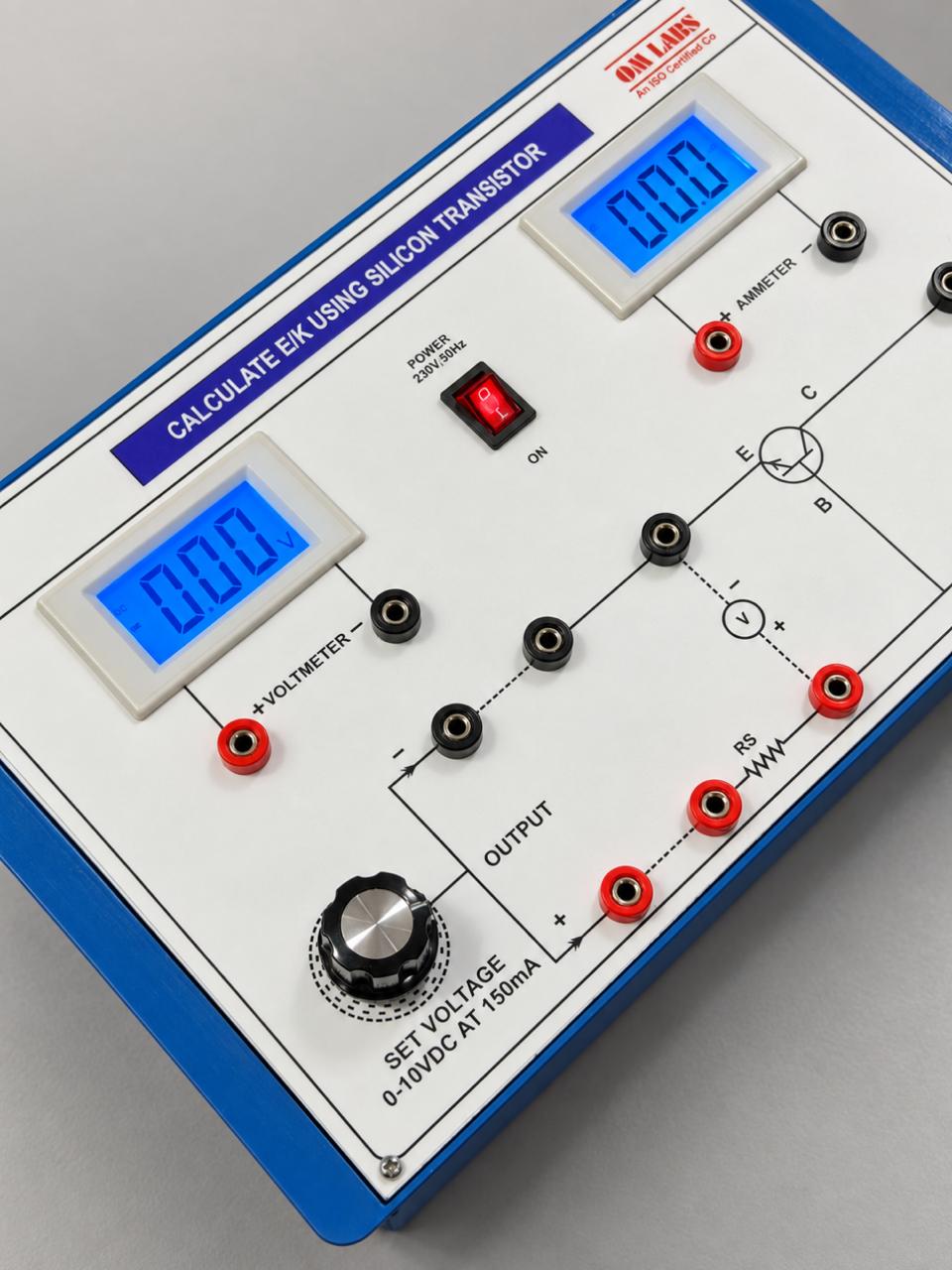

Panel Marking: Clearly marked circuit diagram and E, B, C terminals

Construction: Bench-top trainer with rigid blue housing and laminated front panel

Operating Supply: AC mains operated

Suitable For: B.Sc., undergraduate physics/electronics laboratories

Experiment: Determination/calculation of E/K using a silicon transistor



  • Dimensions: 28 X20 X8cm.
  • Weight:1.440kg
  • Packing: Card Board Box
  • HSN CODE: 8541
  • Box Dimensions:29 x 23.2 x13cm
  • Weight: 1.660 kg
  • GST: General Standard 18%
  • CATAGORIES: ELECTRONIC APPARATUS
  • BRAND: OM LABS



Weight

3.0 kg

Dimensions 16 × 26 × 32 cm
