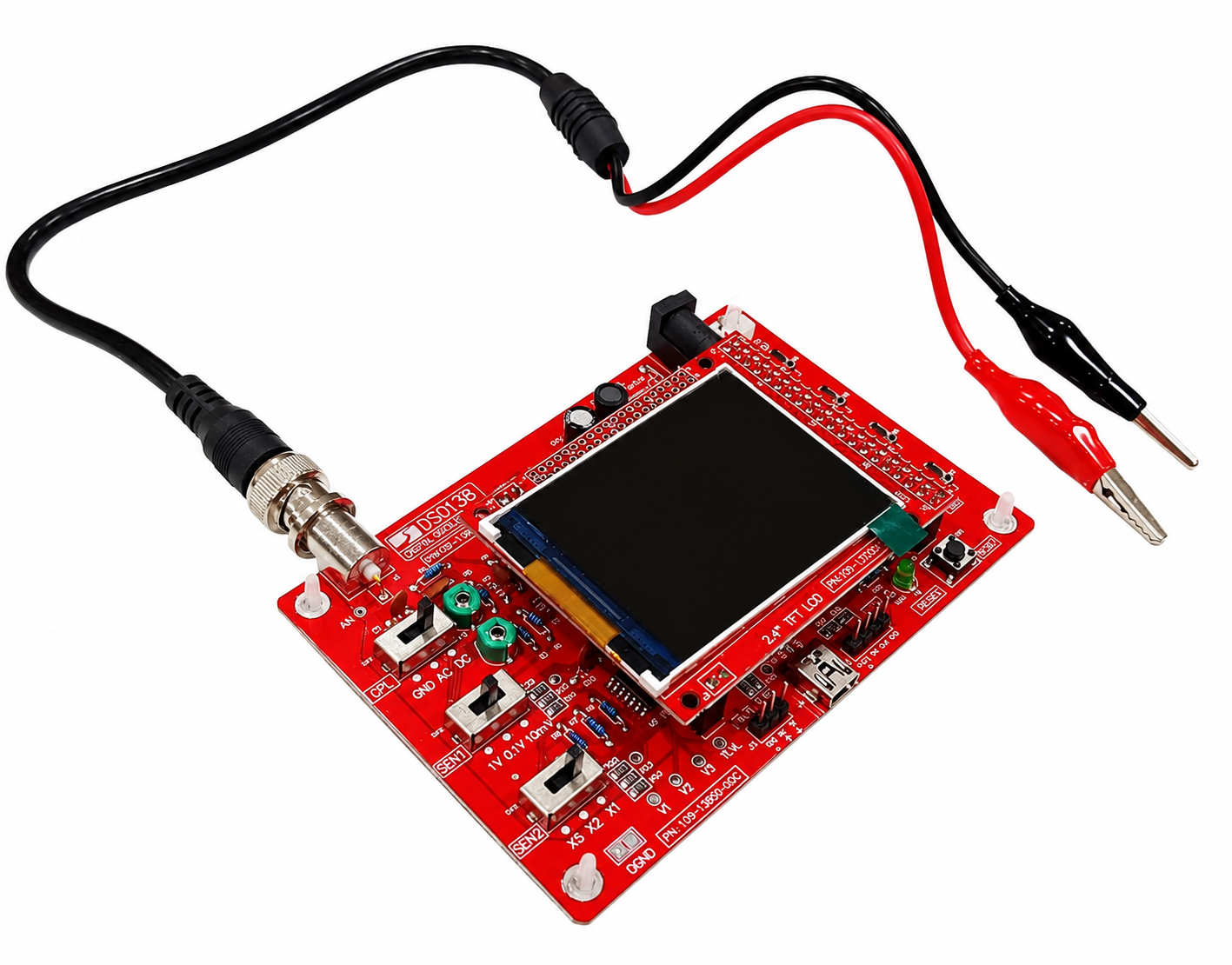

DSO138 Digital Oscilloscope Kit (Up to 100kHz)

DSO138 Digital Oscilloscope Kit (Up to 100kHz)

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 2,450.00
Rs. 3,510.00 Rs. 2,450.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31068
Tags: Arduino Testing , Bench Oscilloscope , Debugging Tool , Digital Oscilloscope , DIY Electronics , DIY Oscilloscope , DSO138 , Educational Kit , Electronic Test Equipment , Electronics Lab , Electronics Project , Embedded Systems , Engineering Tools , Frequency Measurement , Handheld Oscilloscope , Maker Tools , Mini Oscilloscope , Oscilloscope Kit , PCB Testing , Signal Analyzer , Voltage Measurement , Waveform Display
View full details

Specification: The DSO 138 is a compact, entry-level digital storage oscilloscope kit designed for basic signal visualization and educational electronics projects. It is commonly used in laboratory settings for hobbyists and students to observe low-frequency waveforms, test circuit timing, and troubleshoot simple analog signals.

Technical Specifications:
* Maximum real-time sampling rate: 1 MS a/s
* Analog bandwidth: 0 - 200 kHz
* Vertical sensitivity: 10mV/ DIV - 5V/DIV
* Horizontal time base range: 10μs/DIV - 500s/DIV
* Input voltage: 50Vpk (max)
* Display: 53x53mm TFT color display
* Coupling: DC/AC/GND
* Power supply: 9V DC (standard 5.5mm/2.1mm jack)

Dimension: 11.5x7.5x2.5cm, Weight: 73gm /102gm

Package Dimension: 22.5*14*2.5cm, Weight: 126GM

Weight

0.17 kg

Dimensions 3 × 16 × 17 cm
