SKU: OM-642/1
Couldn't load pickup availability
Specification:

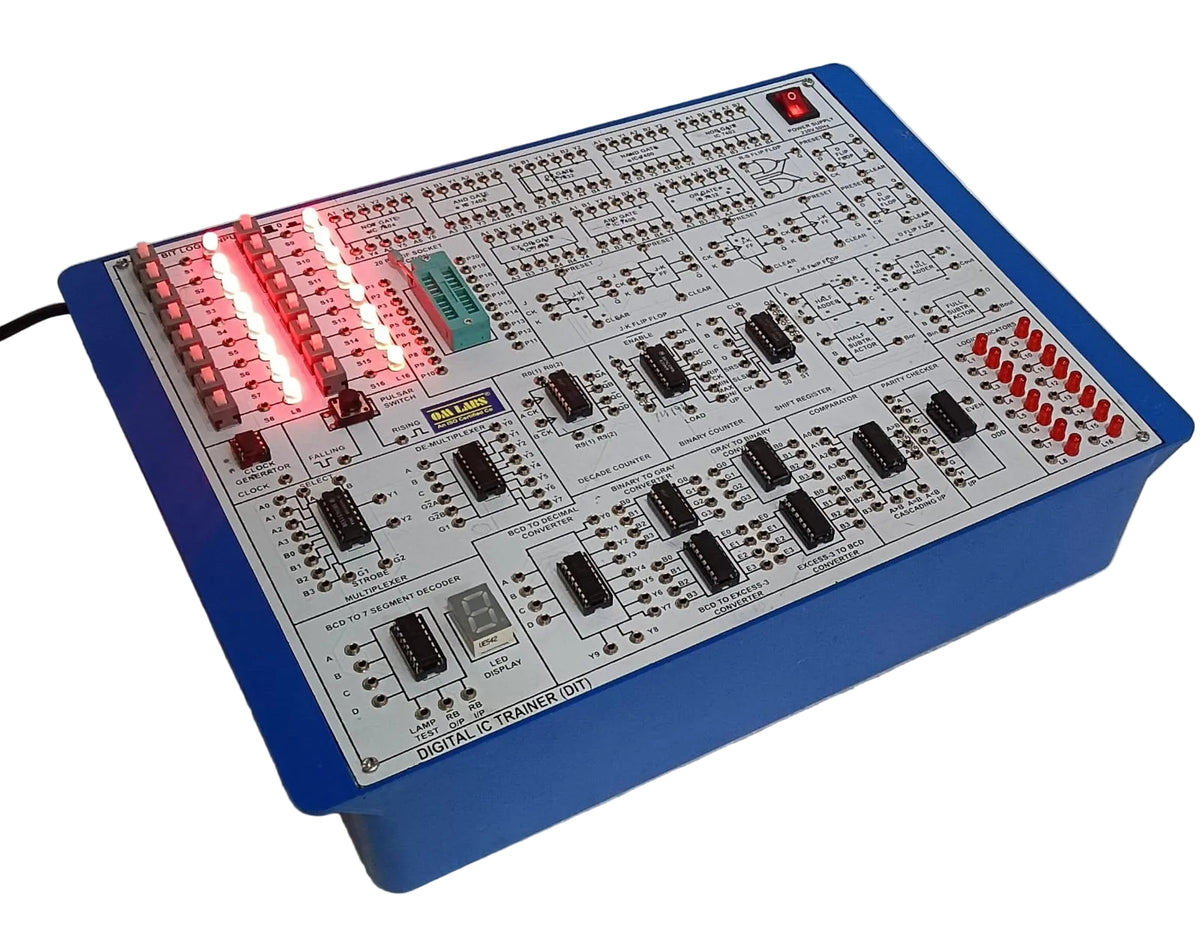

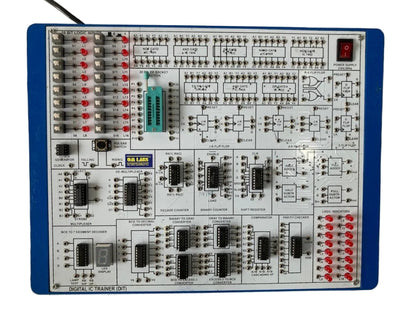

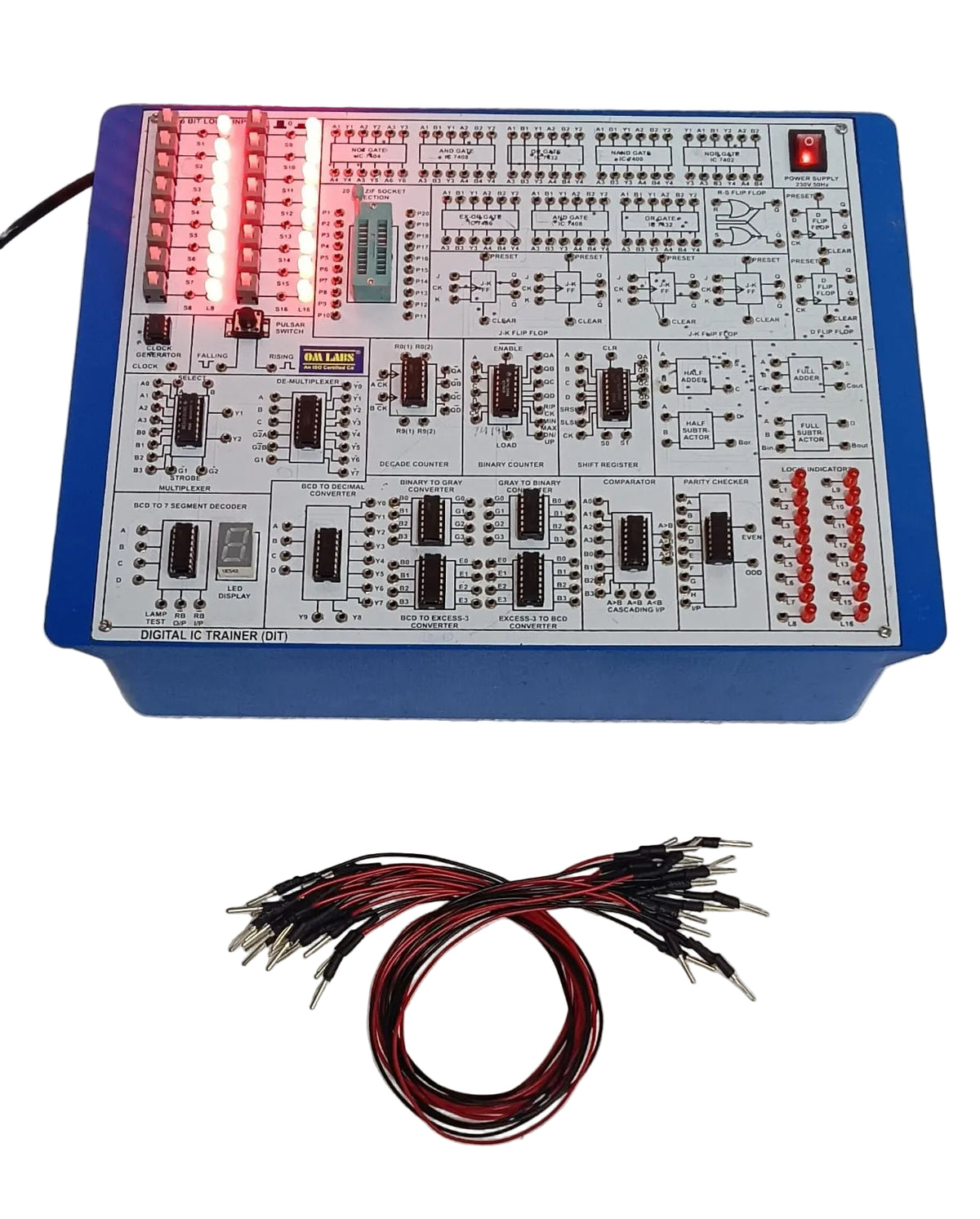

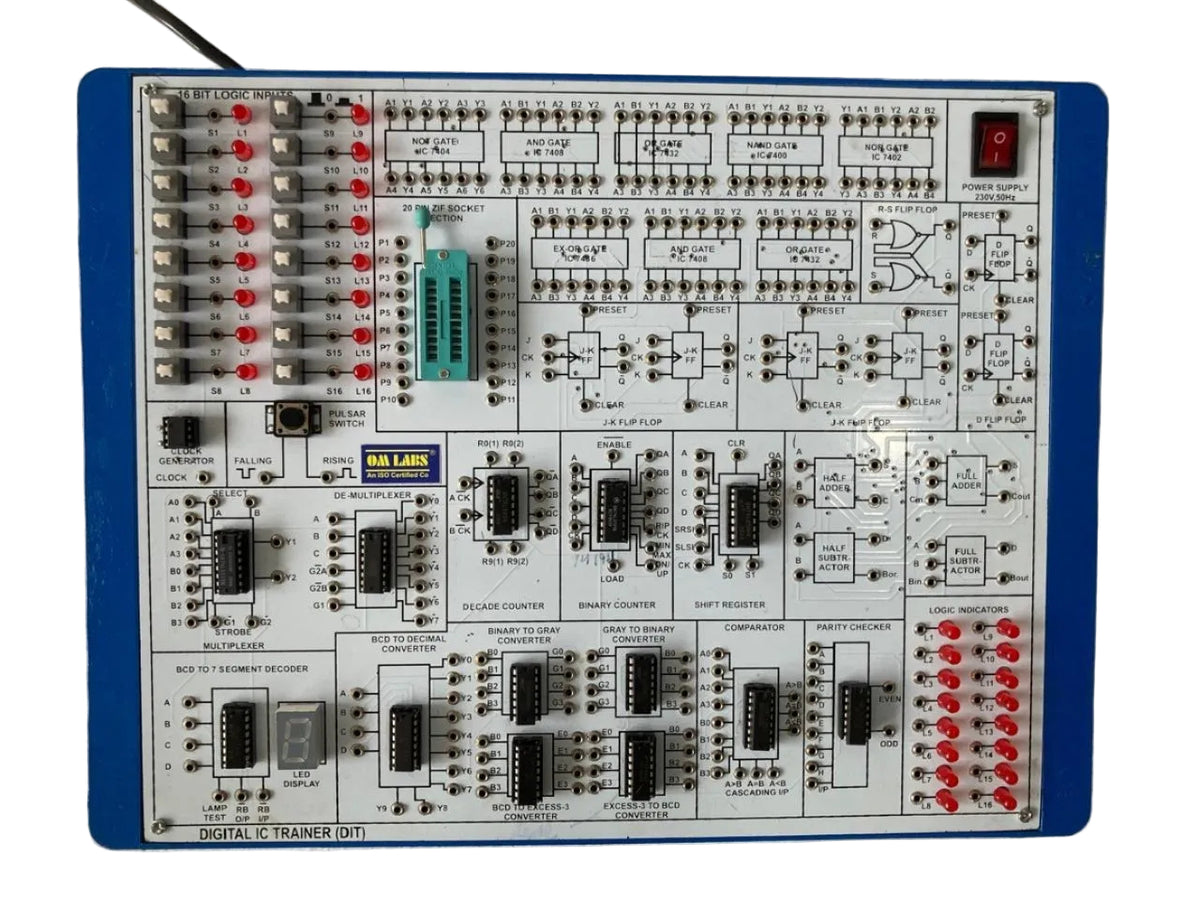

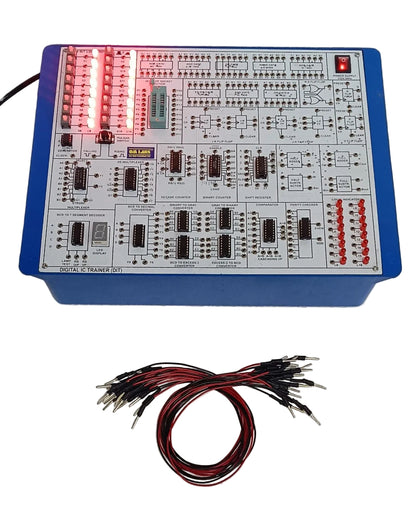

Ø Product Name: Digital IC Trainer (DIT) Advance Model
Ø Type: Digital Electronics Training & Experimentation Unit
Ø IC Socket: Standard IC Sockets for Easy IC Replacement
Ø Logic Gates: AND, OR, NOT, NAND, NOR, XOR, XNOR
Ø Power Supply: Built-in Regulated DC Power Supply
Ø Output Indication: LED Indicators
Ø Input Control: Logic Input Switches / Toggle Switches
Ø DC Supply: Regulated 5 V DC
Ø Power Input: 230 V AC, 50 Hz
Ø Built-In Sections:16-Bit Logic Input, Logic Indicators, NOT, AND, OR, NAND & NOR Gates, EX-OR Gate, Multiplexer, D Flip-Flops, J-K Flip-Flops, Decade Counter, Binary Counter, Shift Register, Half Adder, Full Adder, Half Subtractor, Full Subtractor, BCD to 7-Segment Decoder, Binary to Gray Converter, Gray to Binary Converter, BCD to Excess-3 Converter, Clock Generator, Pulse Switch, 20-Pin ZIF IC Socket.
|
Sr. No. |
Name of Experiment |
|
1 |
TO STUDY AND GATE AND VERIFY ITS TRUTH TABLE. |
|
2 |
TO STUDY OR GATE AND VERIFY ITS TRUTH TABLE. |
|
3 |
TO STUDY NOT GATE AND VERIFY ITS TRUTH TABLE. |
|
4 |
TO STUDY NAND GATE AND VERIFY ITS TRUTH TABLE. |
|
5 |
TO STUDY NOR GATE AND VERIFY ITS TRUTH TABLE. |
|
6 |
TO STUDY EX-OR GATE AND VERIFY ITS TRUTH TABLE. |
|
7 |
TO PROVE THAT NAND GATE AND NOR GATE ARE UNIVERSAL GATES. |
|
8 |
TO STUDY DEMORGAN'S LAW. |
|
9 |
TO SIMPLIFY A BOOLEAN FUNCTION AND CONSTRUCT THE CIRCUIT FOR THE SAME. |
|
10 |
TO STUDY HALF ADDER AND VERIFY ITS TRUTH TABLE. |
|
11 |
TO STUDY FULL ADDER AND VERIFY ITS TRUTH TABLE. |
|
12 |
TO STUDY HALF SUBTRACTOR AND VERIFY ITS TRUTH TABLE. |
|
13 |
TO STUDY FULL SUBTRACTOR AND VERIFY ITS TRUTH TABLE. |
|
14 |
TO STUDY S R FLIP FLOP AND VERIFY ITS TRUTH TABLE. |
|
15 |
TO STUDY D FLIP FLOP AND VERIFY ITS TRUTH TABLE. |
|
16 |
TO STUDY J K FLIP FLOP AND VERIFY ITS TRUTH TABLE. |
|
17 |
TO CONSTRUCT ASYNCHRONOUS BINARY COUNTER USING J K FLIP FLOP AND VERIFY ITS TRUTH TABLE. |
|
18 |
TO CONSTRUCT RING COUNTER USING J K FLIP FLOP AND VERIFY ITS TRUTH TABLE. |
|
19 |
TO STUDY SYNCHRONOUS BINARY USING IC 74191 AND VERIFY ITS TRUTH TABLE. |
|
20 |
TO STUDY DECADE/BCD COUNTER USING IC 7490 AND VERIFY ITS TRUTH TABLE. |
|
21 |
TO STUDY UNIVERSAL SHIFT REGISTER USING IC 74194 AND VERIFY ITS TRUTH TABLE. |
|
22 |
TO STUDY FOUR BIT PARITY CHECKER USING IC 74280 AND VERIFY ITS TRUTH TABLE. |
|
23 |
TO STUDY 4:1 MULTIPLEXER (IC 74153) AND 3 TO 8 LINE DEMULTIPLEXER (IC 74138) AND VERIFY ITS TRUTH TABLE. |
|
24 |
TO STUDY BCD TO SEVEN SEGMENT DECODER USING IC 7447 AND VERIFY ITS TRUTH TABLE. |
|
25 |
TO STUDY FOUR BIT COMPARATOR USING IC 7485 AND VERIFY ITS TRUTH TABLE. |
|
26 |
TO PERFORM BINARY TO GRAY CONVERSION AND VERIFY ITS TRUTH TABLE. |
|
27 |
TO PERFORM GRAY TO BINARY CONVERSION AND VERIFY ITS TRUTH TABLE. |
|
28 |
TO PERFORM BCD TO EXCESS 3 CONVERSION AND VERIFY ITS TRUTH TABLE. |
|
29 |
TO PERFORM EXCESS 3 TO BCD CONVERSION AND VERIFY ITS TRUTH TABLE. |
|
30 |
TO PERFORM BCD TO DECIMAL CONVERSION AND VERIFY ITS TRUTH TABLE. |
| Weight |
3.455 kg |
|---|---|
| Dimensions | 16 × 29 × 37 cm |
