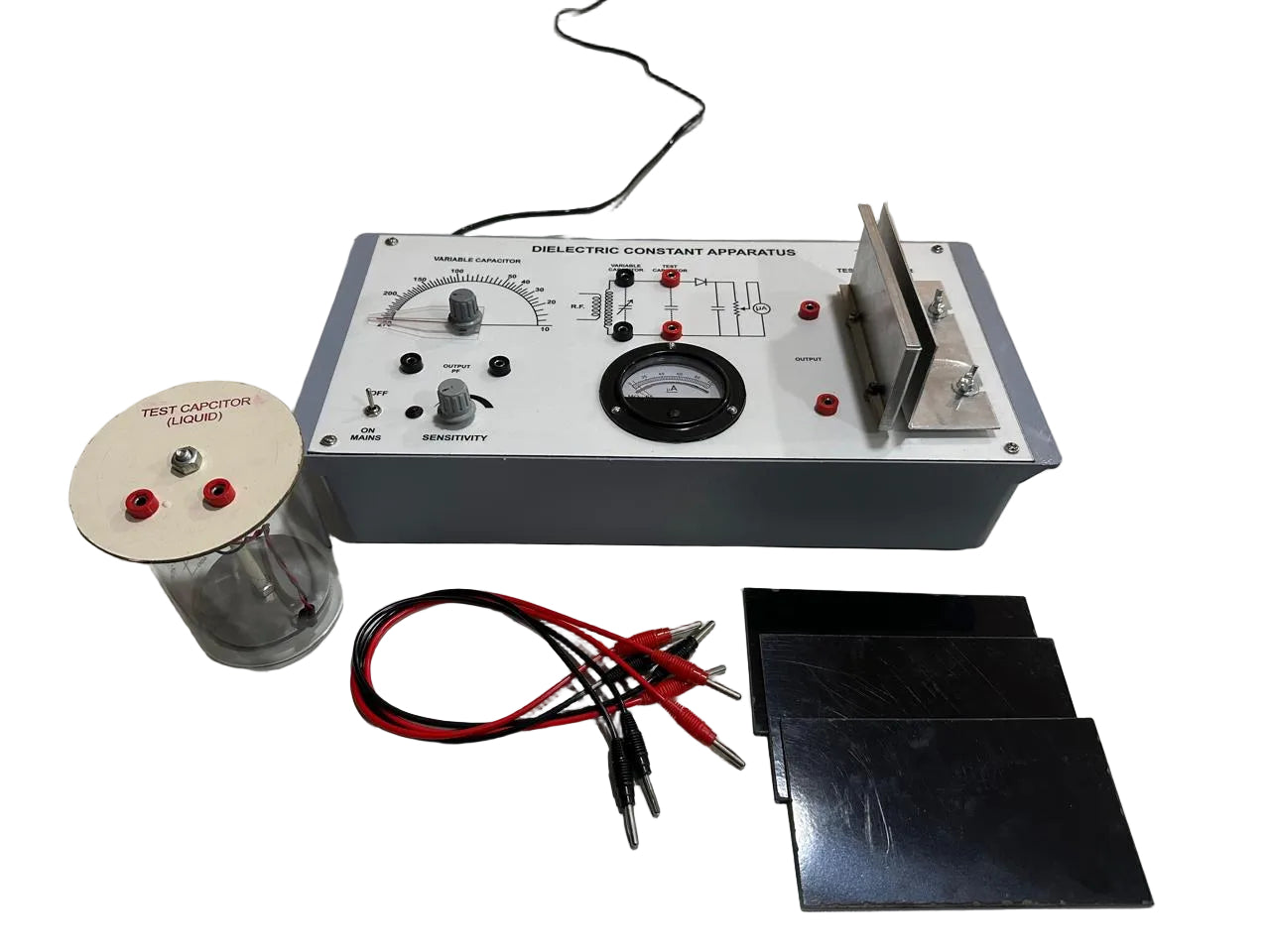

Dielectric Constant Apparatus

Product Name: Dielectric Constant Apparatus for Sound and Liquid

Experiment: measurement of dielectric constant K of a substance by resonance method.

Apparatus required: dielectric constant apparatus with variable gang capacitor and test capacitor for solid, dielectric material, connecting leads and Instructions manual

Formula used Dielectric constant, K is given by

K= C₁-C₂ / C₁-C₃

Where

C₁   =capacity of standard variable capacitor at resonance (maximum deflection)

C₂   =capacity of standard variable capacitor at resonance (maximum deflection) including test capacitor with dielectric in it.

C₃   =capacity of standard variable capacitor at resonance (maximum deflection) including test capacitor without dielectric in it.
