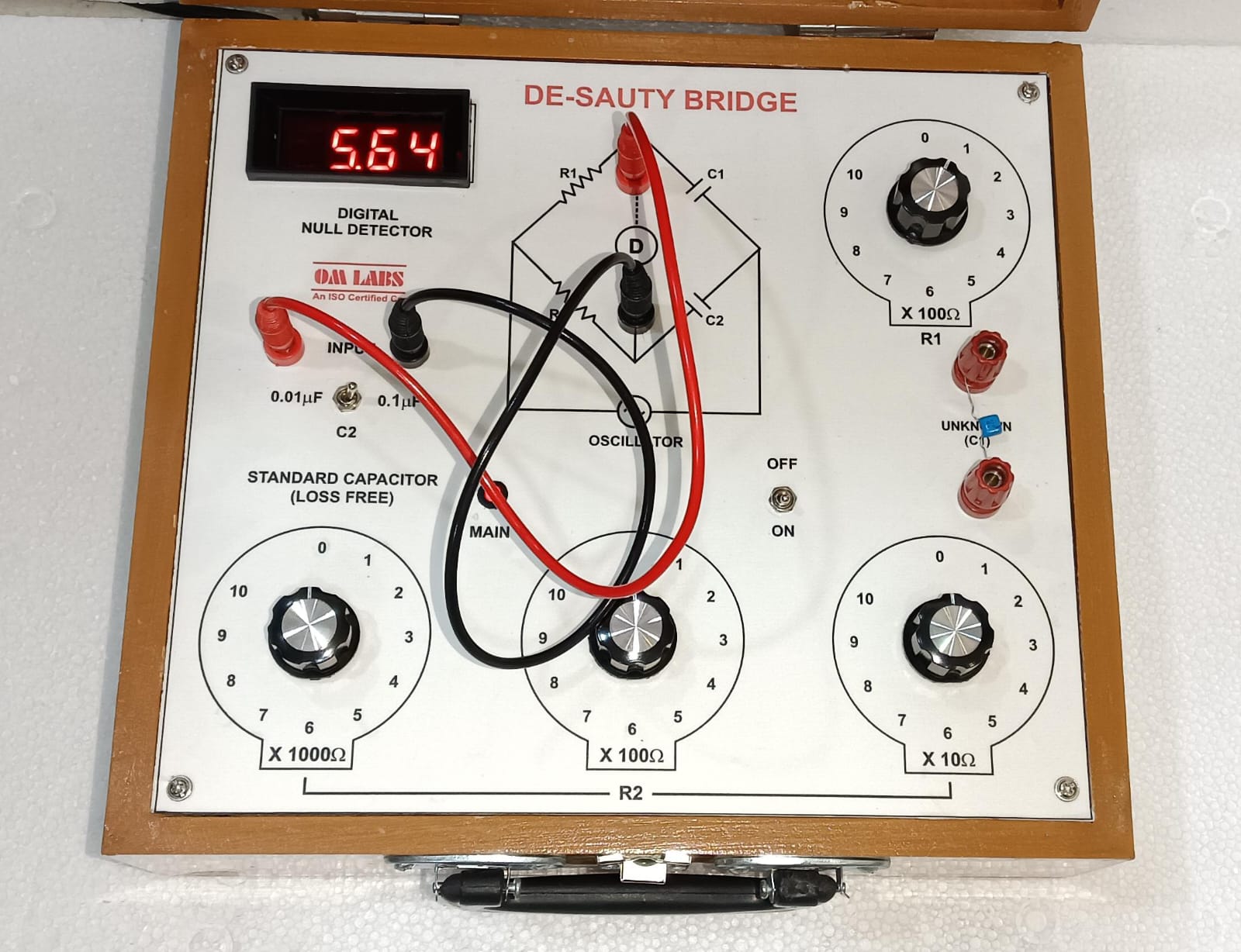

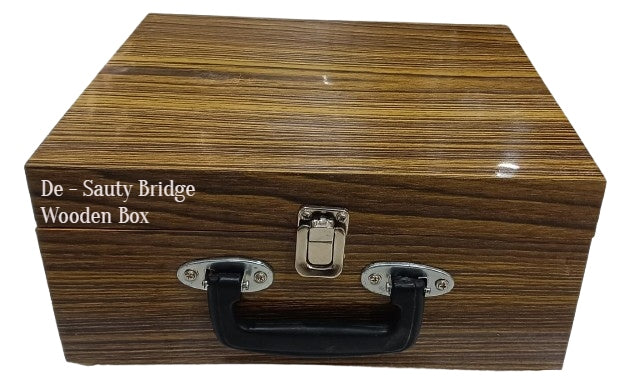

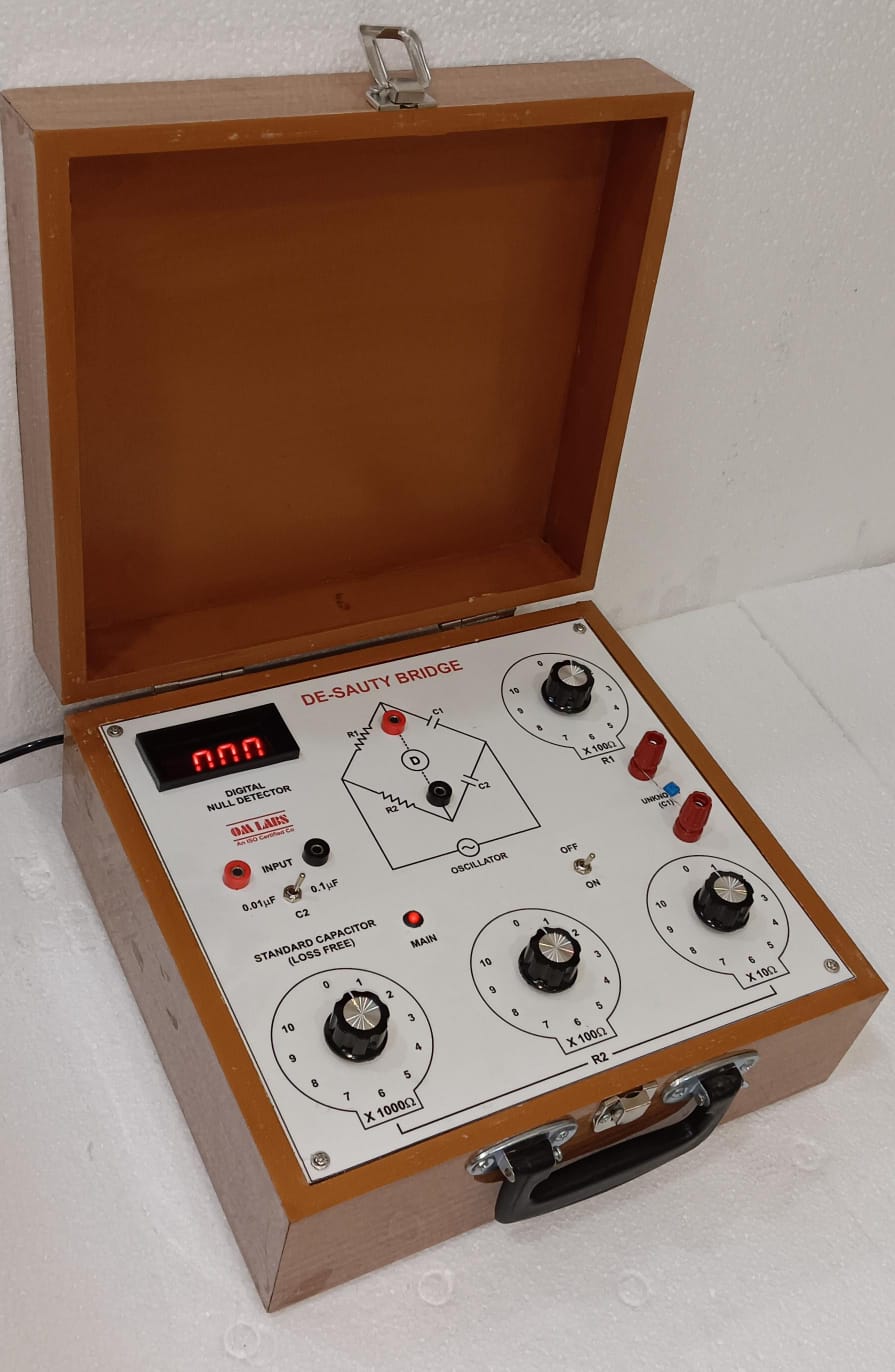

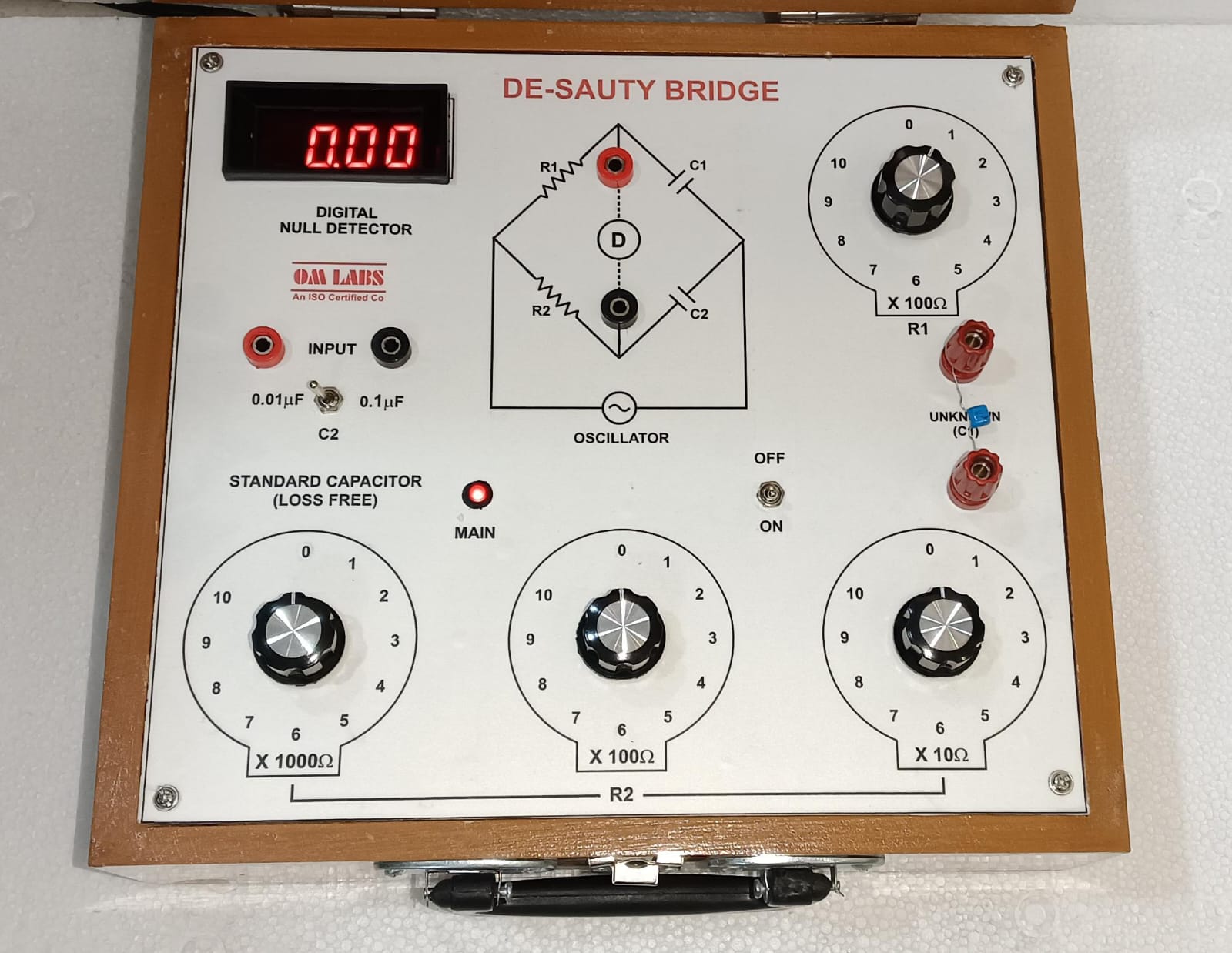

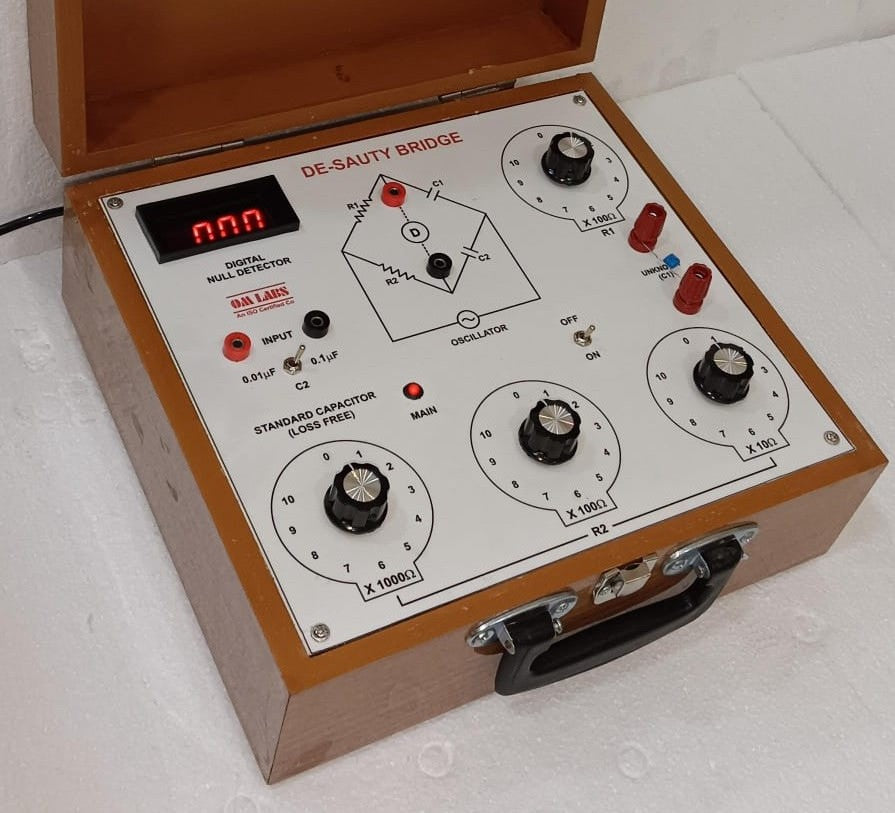

De-Sauty Bridge with Null detector & Oscillator with Wooden Box

SPECIFICATION: De-Sauty Bridge (With Inbuilt Oscillator And Digital Null Detector)

EXPERIMENT: Measurement of unknown capacitance using de-sauty bridge

Ø  MAIN FEATURES OF THE BRIDGE:

o   R_2… Three decade rearstance dials having value 10x10001Ω,10-100Ω and 10-10Ω

o   R_1…  Single decade resistance dial having value 10x100Ω.

o   C_1...   Unknown capacitor.

o   C_2… Two fixed standard capacitors having value 0.01uf & 0.1uf (loss free)

o   Terminals are provided for external connections to connect unknown capaclior and digital null detector or head phone

FORMULA USED: C₁ = (R2/R1)×C2

• Dimensions:31 x 28 x 16cm Approx.
• Weight:3.1Kg Approx.
• Packing: Card Board Box
• HSN CODE: 9023
• GST: General Standard 18%
• CATAGORIES: Electronics
• BRAND: OM LABS
