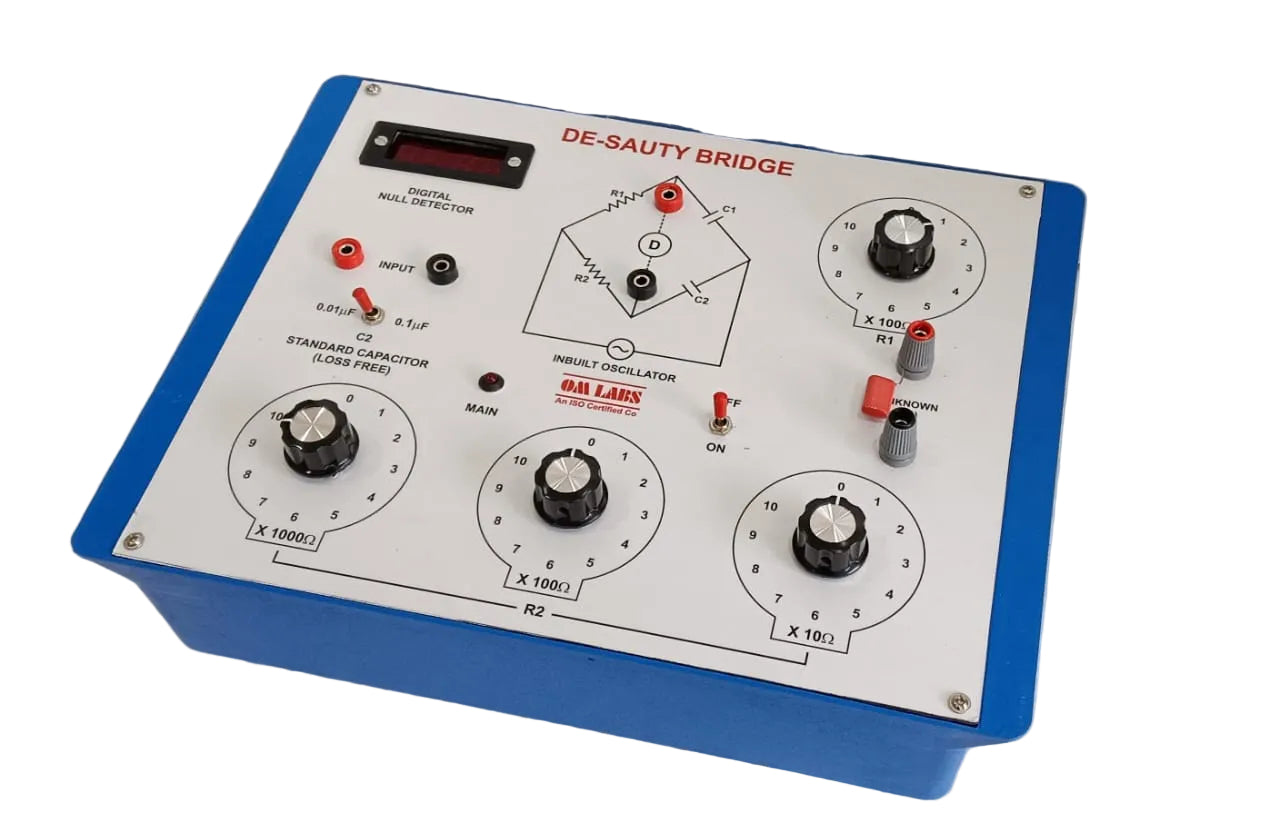

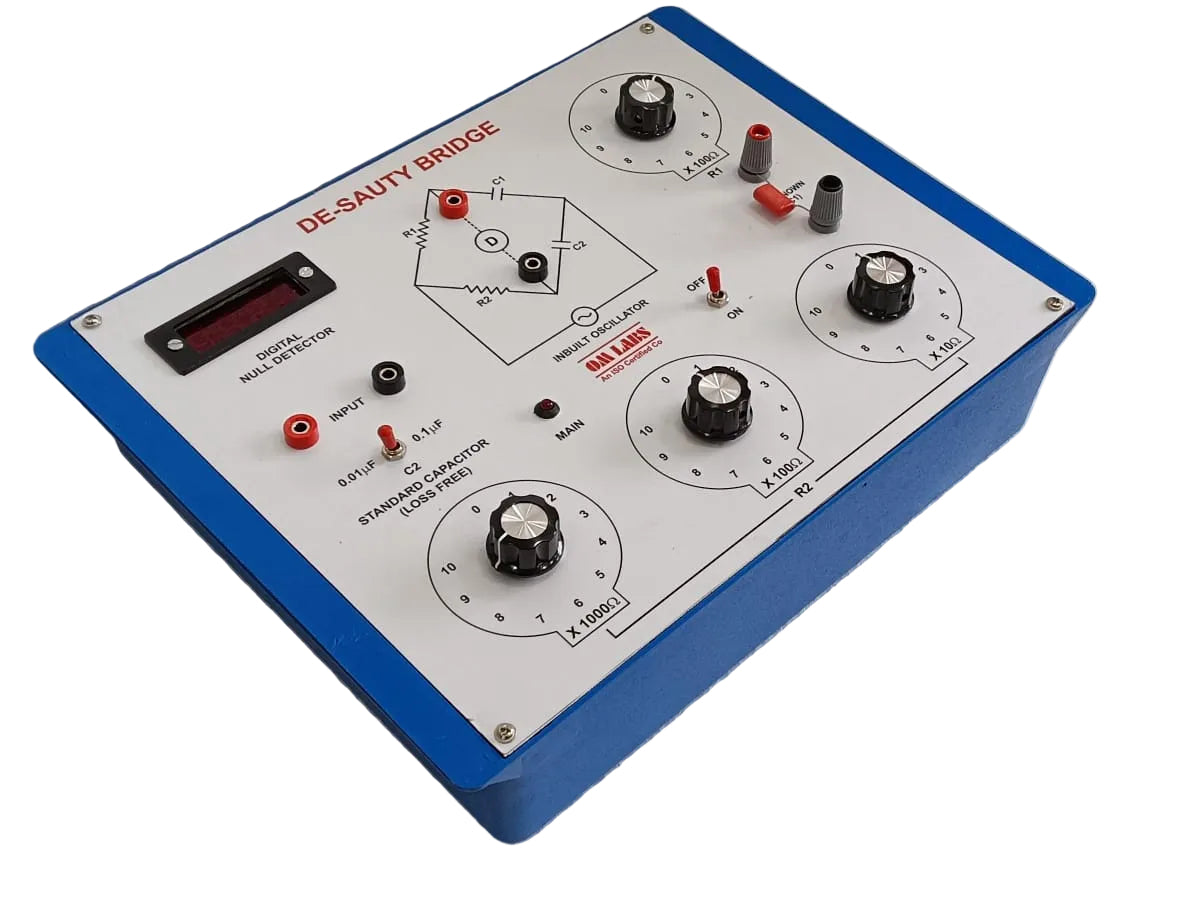

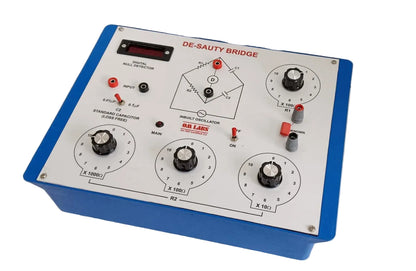

De-Sauty Bridge with Null detector & Oscillator with Plastic Box

De-Sauty Bridge with Null detector & Oscillator with Plastic Box

DISPATCHED WITHIN 1-5 Days
24 HOURS RETURN/EXCHANGE POLICY
Rs. 6,300.00
Rs. 9,000.00 Rs. 6,300.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-714/P
Tags: Anderson Bridge , Anderson Bridge (Plastic Box) , Anderson Bridge with Null detector & Oscillator (Plastic Box) , Anderson Bridge With Null Detector & Oscillator with Wooden Box , De-Sauty Bridge , De-Sauty Bridge with Null detector & Oscillator , De-Sauty Bridge with Null detector & Oscillator with Wooden Box , De-Sauty Bridge with Wooden Box , Portable Wheatstone Bridge , Portable Wheatstone Bridge with Wooden Box , Wheatstone bridge
View full details

SPECIFICATION: De-Sauty Bridge (With Inbuilt Oscillator And Digital Null Detector)

EXPERIMENT: Measurement of unknown capacitance using de-sauty bridge

Ø  MAIN FEATURES OF THE BRIDGE:

o   R2… Three decade rearstance dials having value 10x10001Ω,10-100Ω and 10-10Ω

o   R1…  Single decade resistance dial having value 10x100Ω.

o   C1...   Unknown capacitor.

o   C2… Two fixed standard capacitors having value 0.01uf & 0.1uf (loss free)

o   Terminals are provided for external connections to connect unknown capaclior and digital null detector or head phone

FORMULA USED: C₁ = (R2/R1)×C2

  • Dimensions:28 x 21 x 10cm Approx.
  • Weight:1.4 Kg Approx.
  • Packing: Card Board Box
  • HSN CODE: 9023
  • GST: General Standard 18%
  • CATAGORIES: Electronics
  • BRAND: OM LABS
Weight

3.5 kg

Dimensions 16 × 30 × 32 cm
