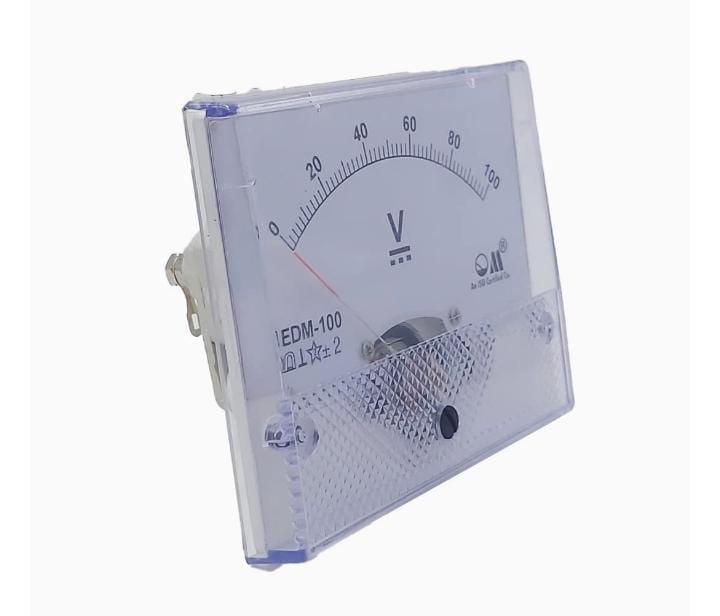

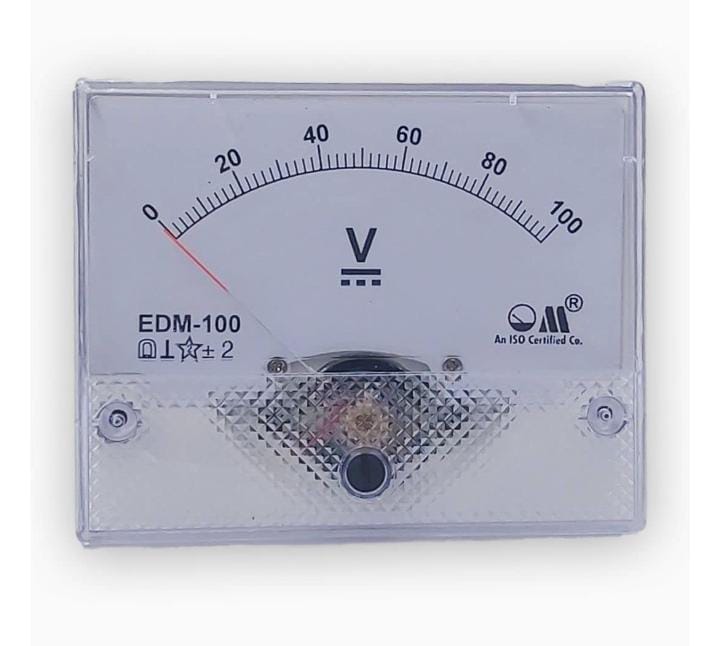

DC VOLTMETER (MODEL EDM-100 RECTANGULAR PANEL METER)

SPECIFICATION :

VOLTMETER is used for measuring Voltage in the Electrical Circuit.

• CASE : Clear Transparent case with white abs base
• ACCURACY : +/- 2% FSD
• SCALE LENGTH : 80mm (Approx) with knife edge pointer & Anti Parallax mirror
• OVERALL SIZE : 100 x 100 x 60 Mm
• PACKING : Card Board Box
• AVAILABLE RANGES : 0-1V DC To 600 Volts (Any Range)
• WEIGHT : 105 gm Approx.
• HSN CODE : 90303310
• GST : General Standard 18%
• BRAND : OM
• Packing Dimensions : 12x10x5cm @ weight: 140gm
