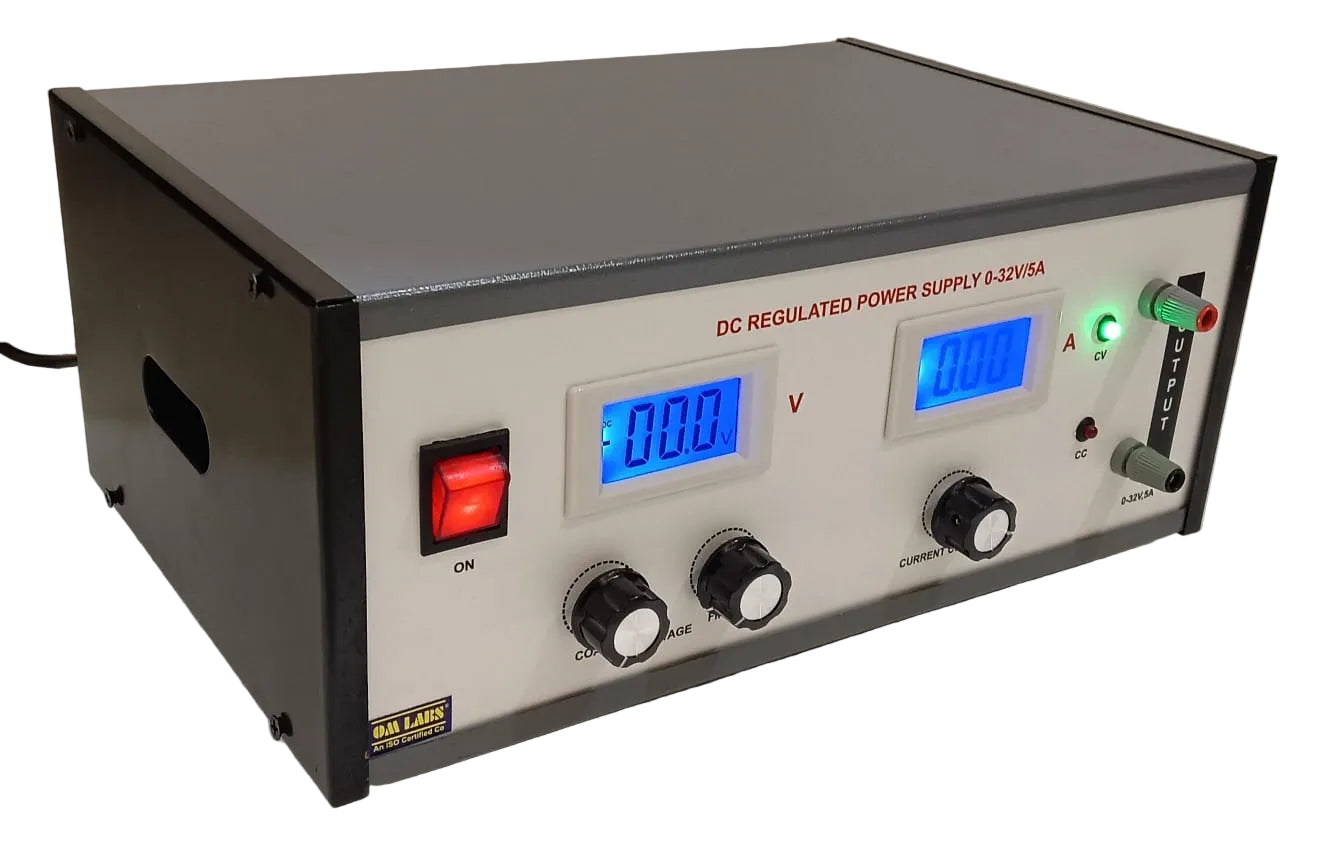

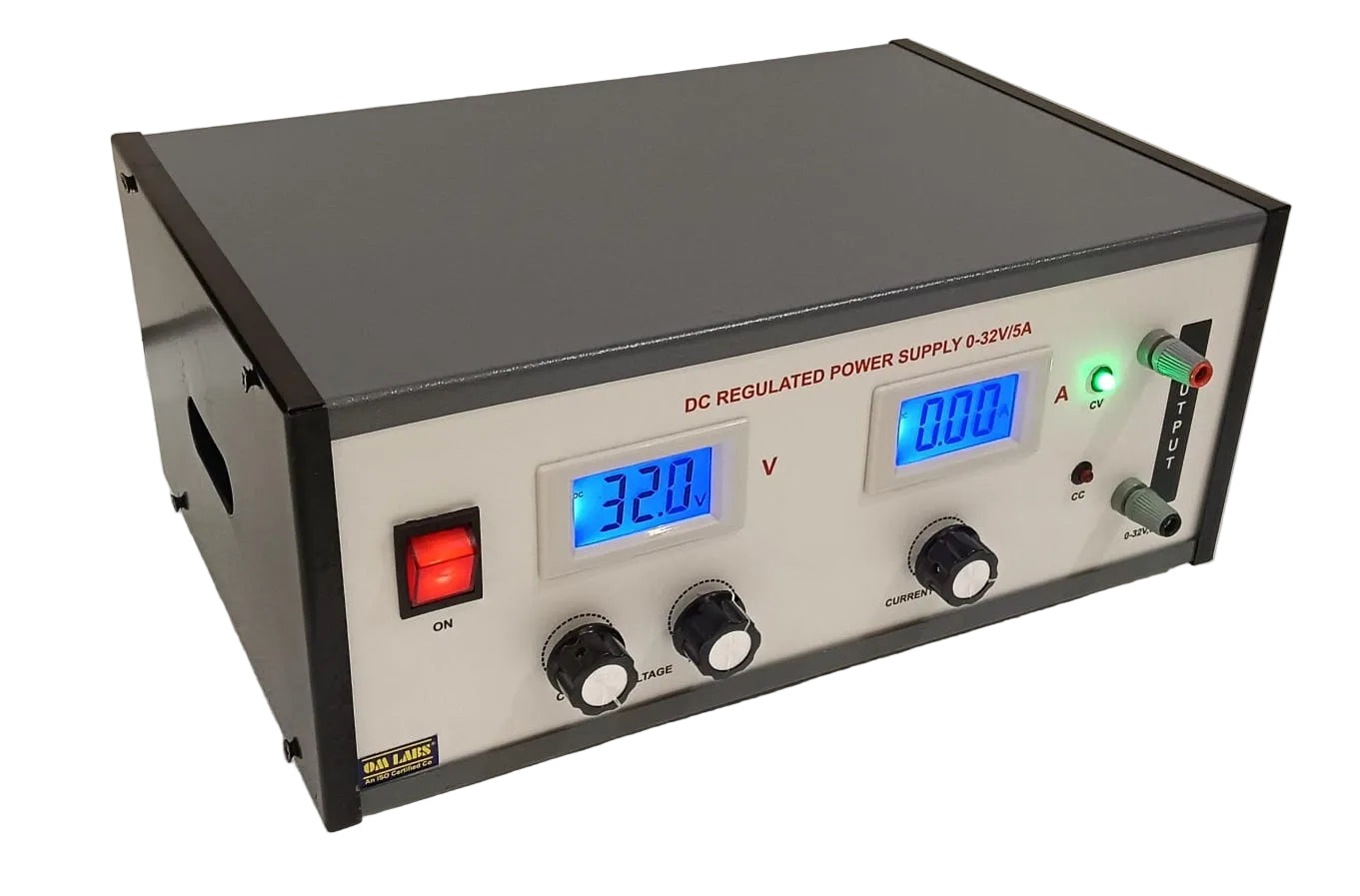

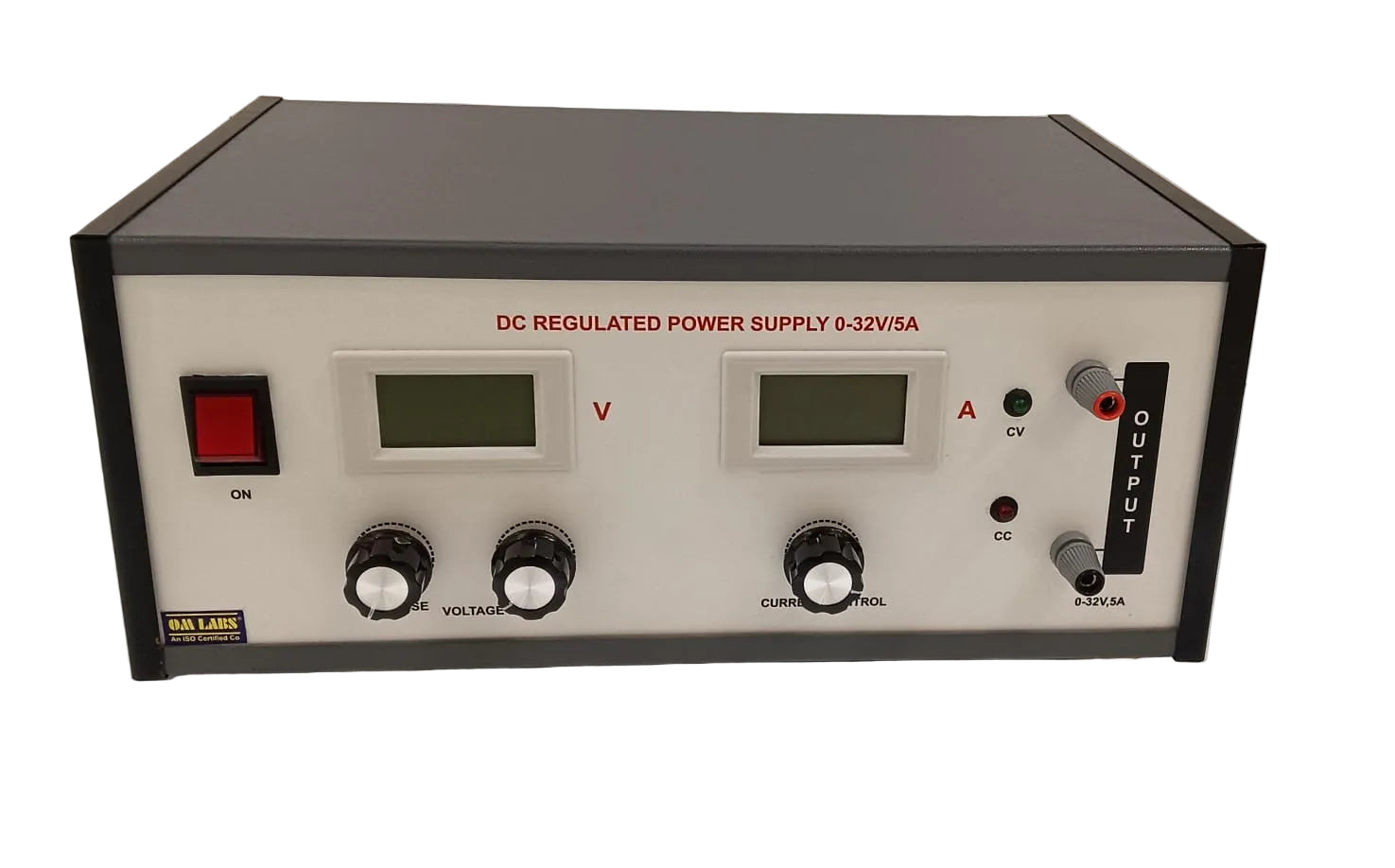

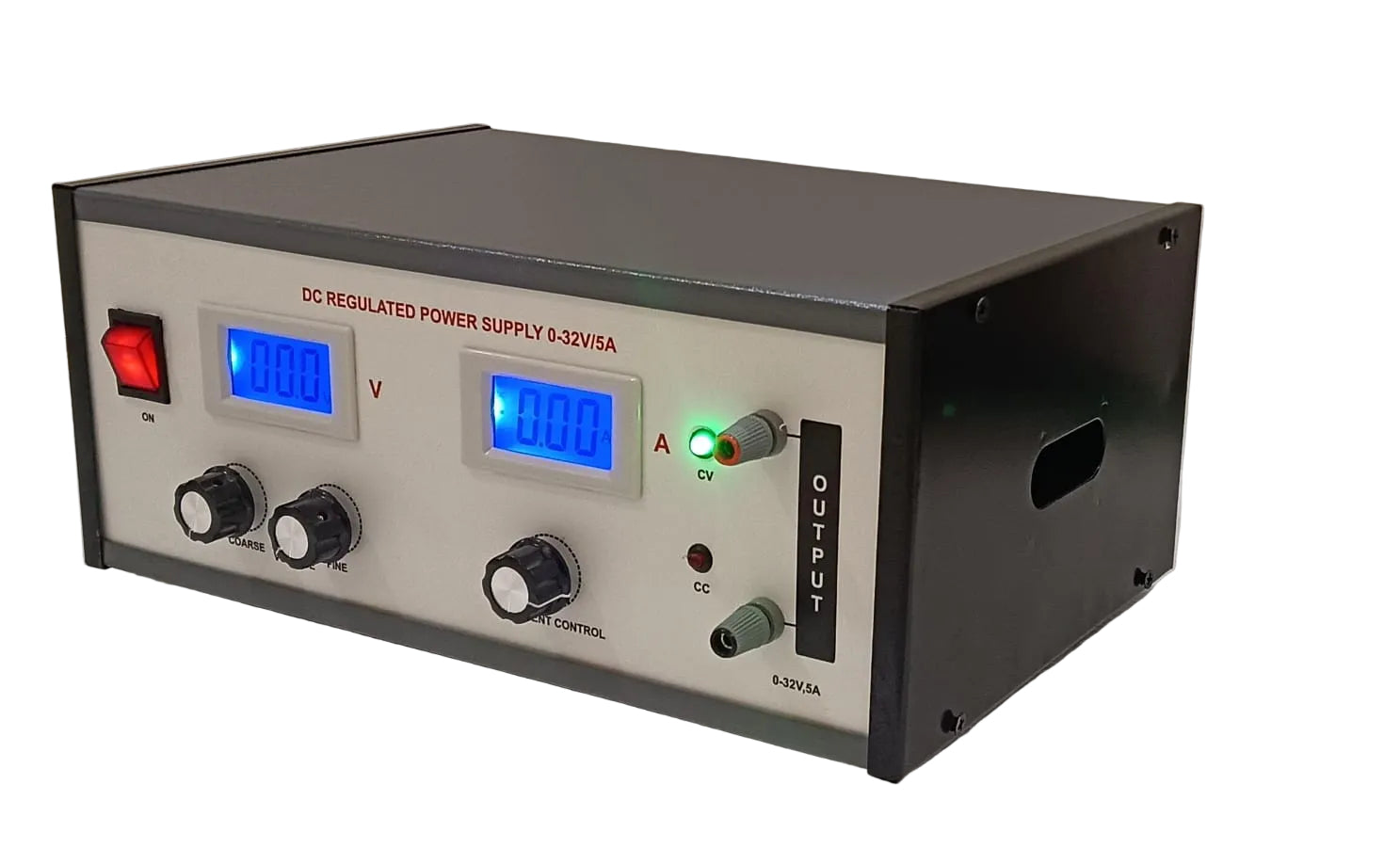

DC Regulated Power Supply with 2 Digital Meter ( 0-32V/5A)

DC Regulated Power Supply with 2 Digital Meter ( 0-32V/5A)

DISPATCHED WITHIN 1-5 Days
24 HOURS RETURN/EXCHANGE POLICY
Regular price Rs. 8,900.00
Regular price Rs. 13,600.00 Sale price Rs. 8,900.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-523/1

Quantity
View full details

       MAIN FEATURES:

  •         Independent Outputs with Separate Controls and One Fixed Output Supplies up to 150W total Power
  •          Highest Output Resolution: 1mV/1mA
  •          Insulation between three output channels effectively reduce the interference
  •      Low ripple noise: <300uVrms/mVpp

Ø  SPECIFICATIONS:

  •          Dimensions: 36cm(L) x 32cm(W)x15cm(H)
  •          Weights: 7.3 kg
  •          Display Type: 3 and Half Digit LED Display
  •          DC Output Ratings Voltage:0-32V Current: 0-5A
  •          Line Regulation: Variable Output: CV:<0.01%+2Mv, CC:<0.01%+1mA
  •         Load Regulation : Variable Output: CV:<0.01%+3mV, CC:<0.01%+3mA
  •         Noise and Ripple (20Hz-7MHz): Variable Output: CV:<300uVrms/2mVpp CC:<3mArms
  •       Setting Resolution: Voltage:1mV (Variable Output) Current: 1mA (Variable Output
  • Dimensions: 38 x 32 x 20cm Approx.
  • Weight: 7.220 Kg Approx.
  • Packing: Card Board Case
  • HSN CODE: 9031
  • GST: General Standard 18%
  • CATAGORIES: Others
  • BRAND: OM LABS
Weight

9.0 kg

Dimensions 23 × 35 × 41 cm
