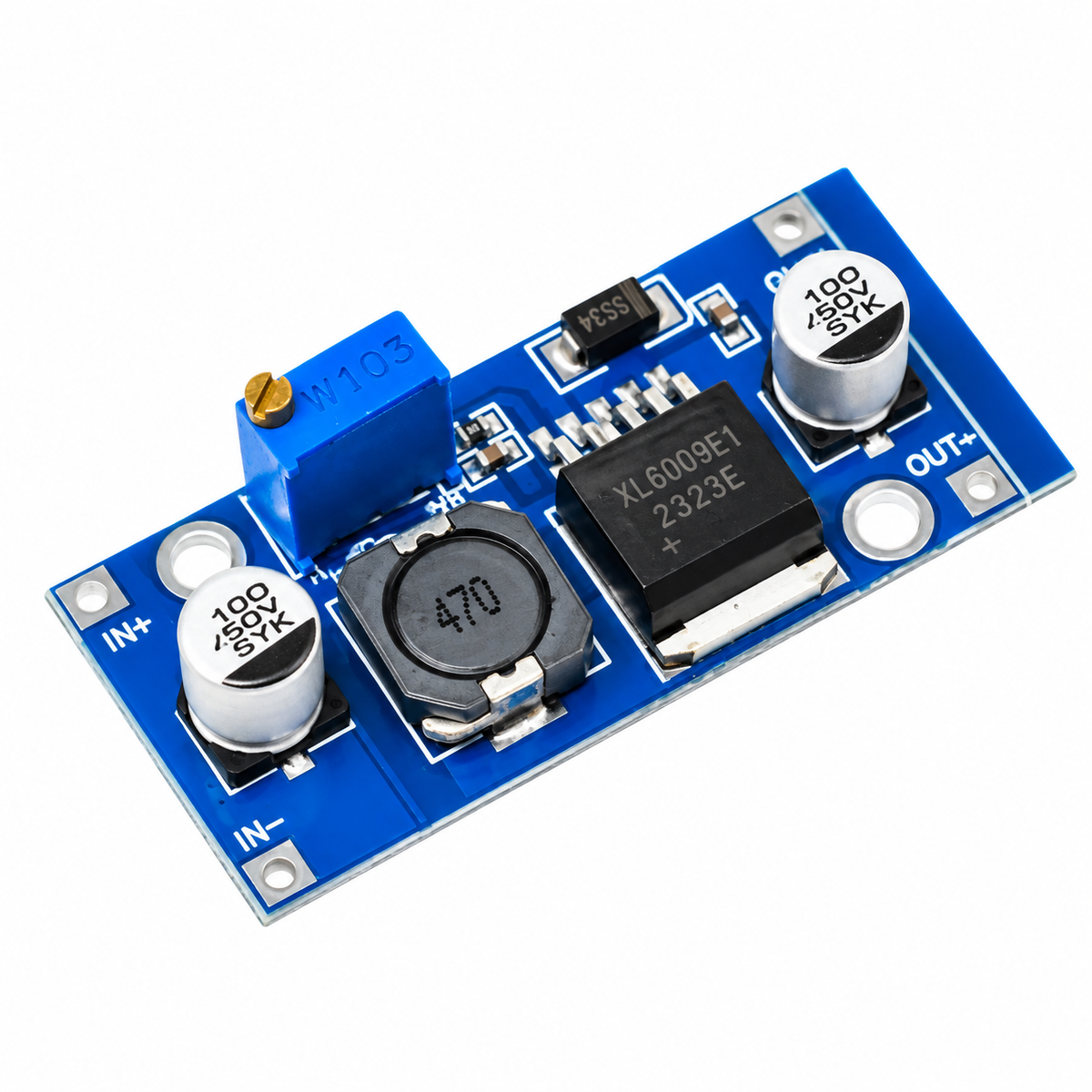

DC BOOST CONVERTER XL-6009 MODULE

DC BOOST CONVERTER XL-6009 MODULE

DISPATCHED WITHIN 1-5 Days
24 HOURS RETURN/EXCHANGE POLICY
Rs. 90.00
Rs. 130.00 Rs. 90.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31111
Tags: Adjustable Boost Converter , Adjustable Voltage Regulator , Arduino Power Module , Battery Voltage Booster , DC Boost Converter XL6009 Module , DC Voltage Converter , DC-DC Boost Converter , DC-DC Converter Module , DIY Electronics , DIY Power Supply , Electronic Components , Electronics Module , Embedded Projects , IoT Sensors and Modules , Power Supply Module , Robotics and IoT , Robotics Kit , Step Up Converter , Step Up Voltage Regulator , Voltage Booster Module , Voltage Step Up Module , XL6009 Boost Converter , XL6009 Module
View full details

Specification: The XL6009 is a high-performance, non-isolated DC-DC boost converter module capable of stepping up lower input voltages to a higher, regulated output voltage. In a laboratory setting, it is frequently utilized for prototyping portable electronic projects, powering high-voltage sensors, or stabilizing variable DC power sources for sensitive instrumentation.

  • Technical Specifications:
    * Module Properties: Non-isolated boost (step-up)
    * Input Voltage Range: 3V – 32V DC
    * Output Voltage Range: 5V – 35V DC (Adjustable via onboard potentiometer)
    * Maximum Input Current: 4A
    * Switching Frequency: 400KHz
    * Conversion Efficiency: Up to 94%
    * Rectification: Non-synchronous rectification
    * Load Regulation: ± 0.5%
    * Voltage Regulation: ± 0.5%
    * Operating Temperature: -40°C to +85°C
    * Dimensions: 43mm x 21mm x 14mm Approx.
  • Package: 7x8x0.3cm
  • Weight: 8gm

(The dimensions and weight mentioned in the additional information section are of the product with box/packaging.)
