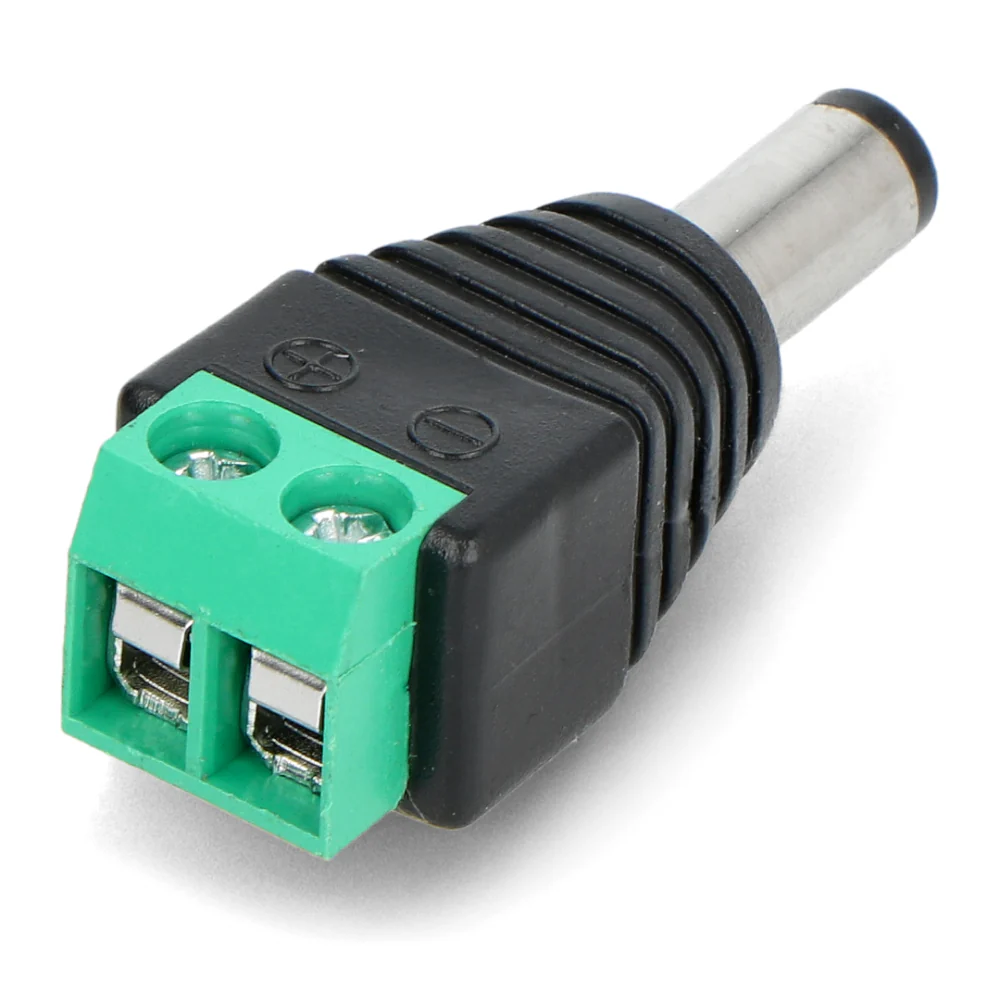

DC BARREL POWER JACK WITH SCREW TERMINALS

Specification: The DC barrel power jack with screw terminals is a versatile connector that allows for the easy attachment of power cables without the need for soldering. It is frequently used in laboratory prototyping, breadboarding, and test setups to quickly interface external DC power supplies with custom electronic circuits or equipment.

Technical Specifications:
* Connector Type: 5.5mm x 2.1mm DC Barrel Jack
* Terminal Type: 2-Pin Screw Terminal Block
* Polarity: Center Positive
* Material: Nickel-plated metal and flame-retardant plastic
* Max Voltage Rating: 30V DC
* Max Current Rating: 5A
* Operating Temperature Range: -20°C to +70°C
* Mounting Type: Surface/Panel mountable via screw holes

Dimension: 3.5*1.5*1cm
Weight: 5gm

(The dimensions and weight mentioned in the additional information section are of the product with box/packaging.)
