Specifications:

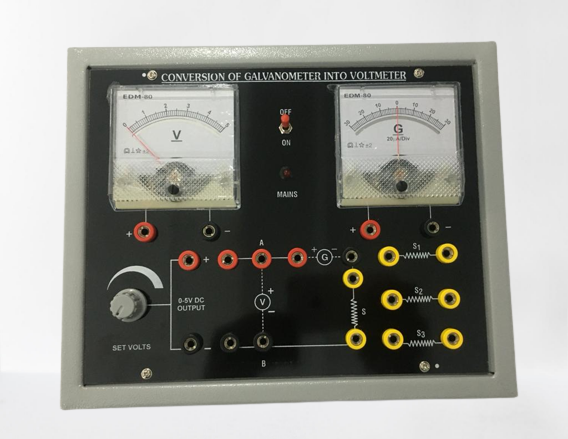

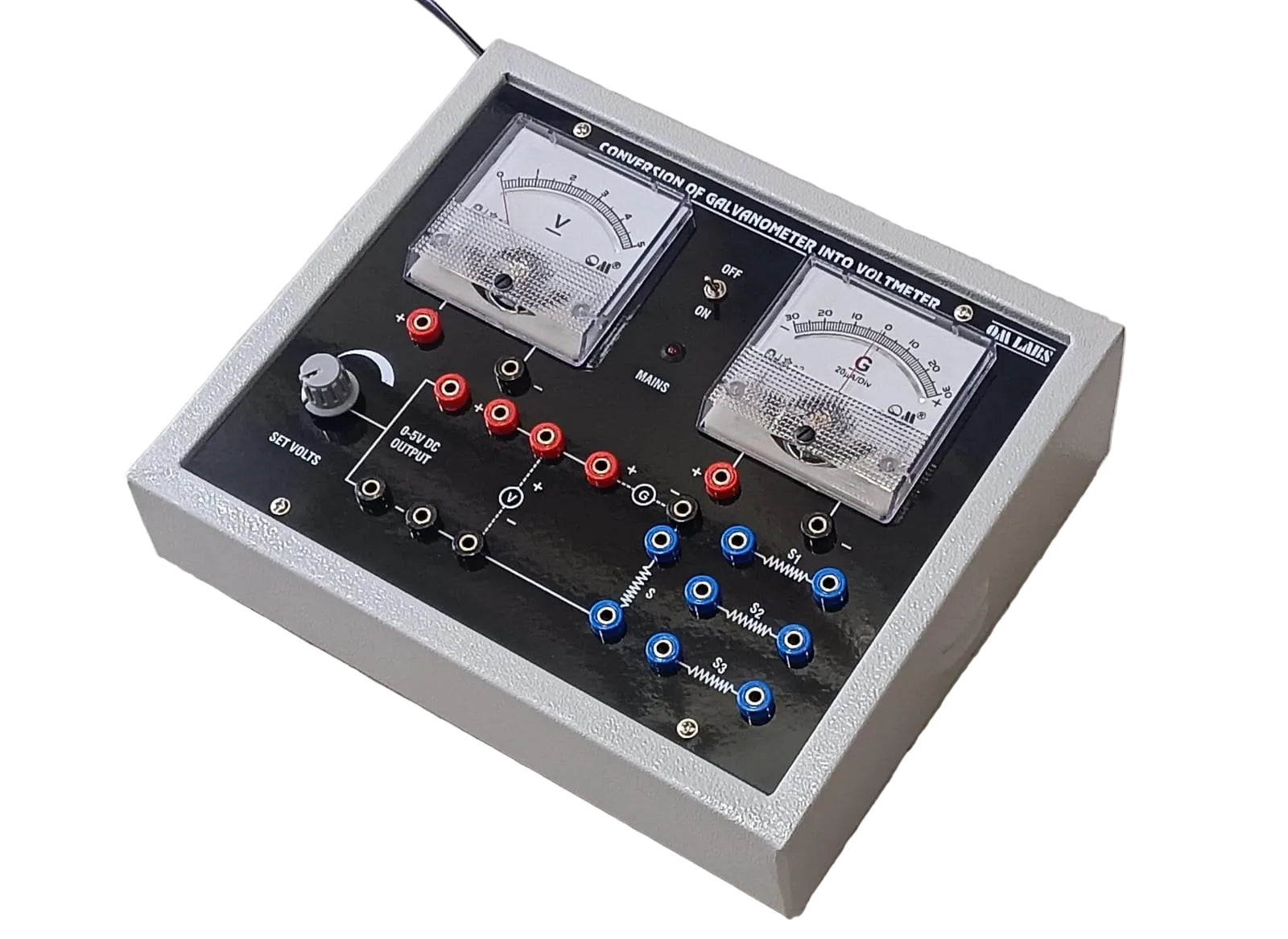

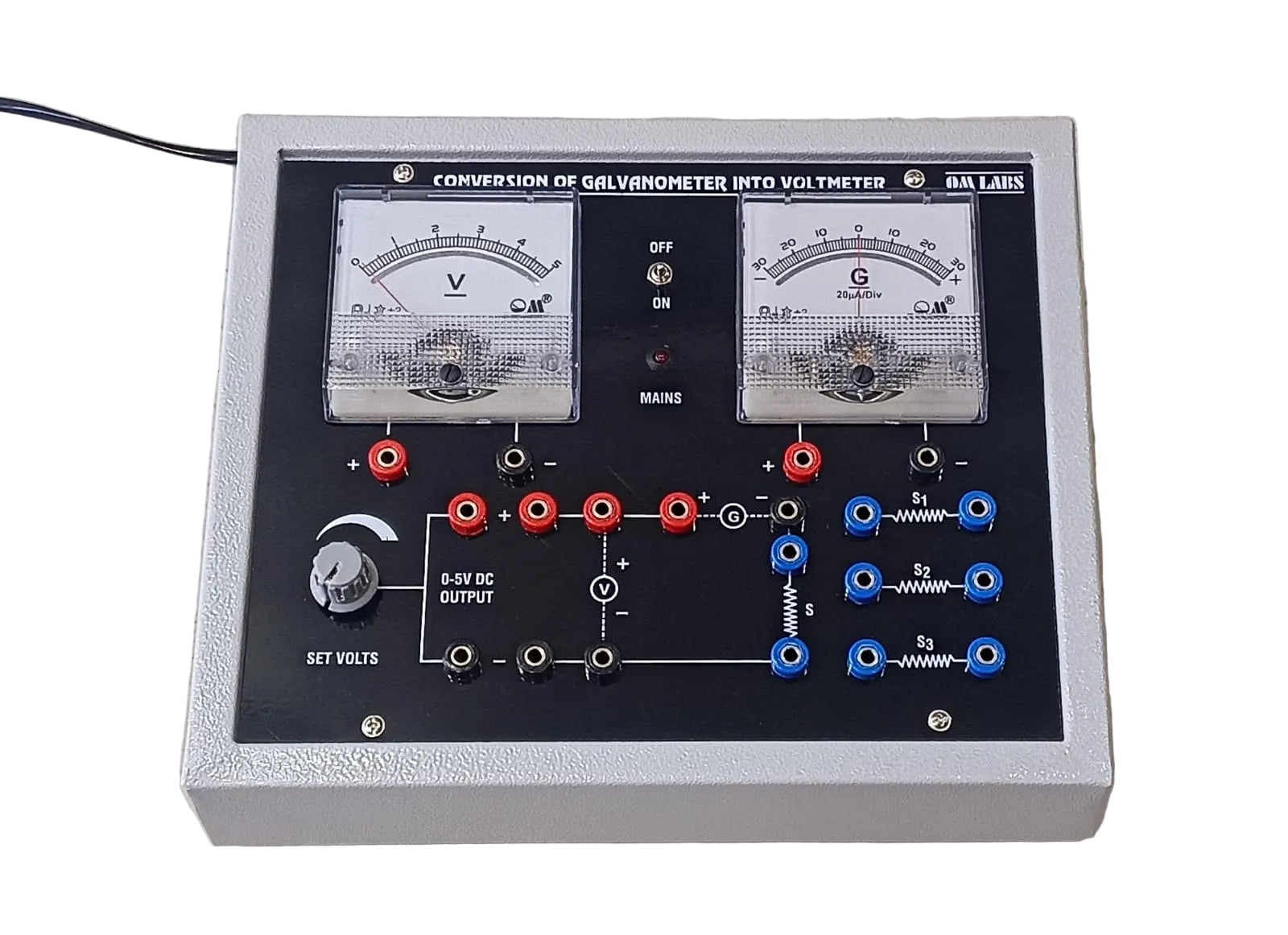

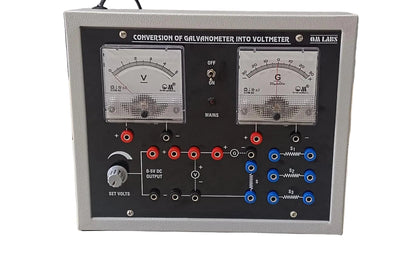

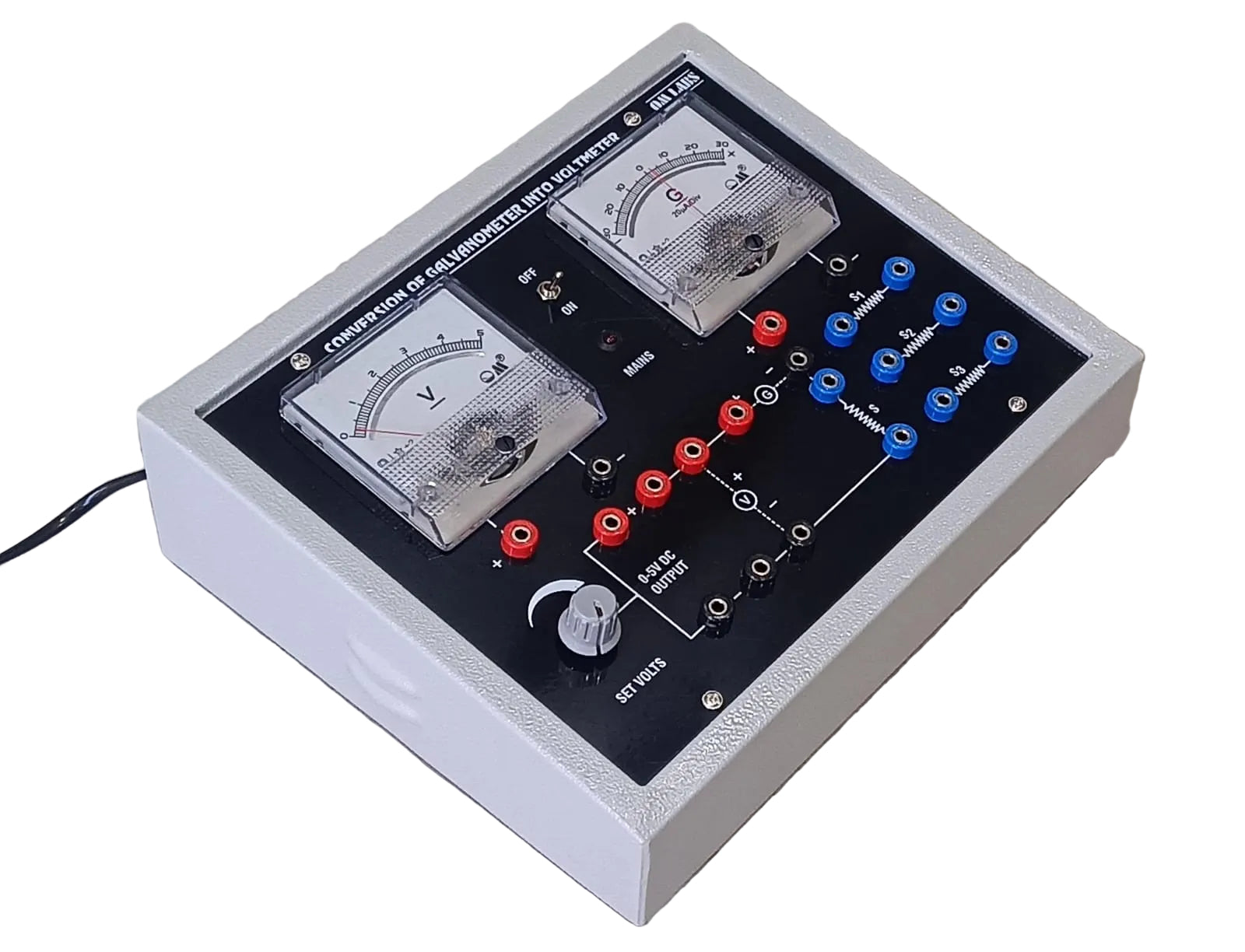

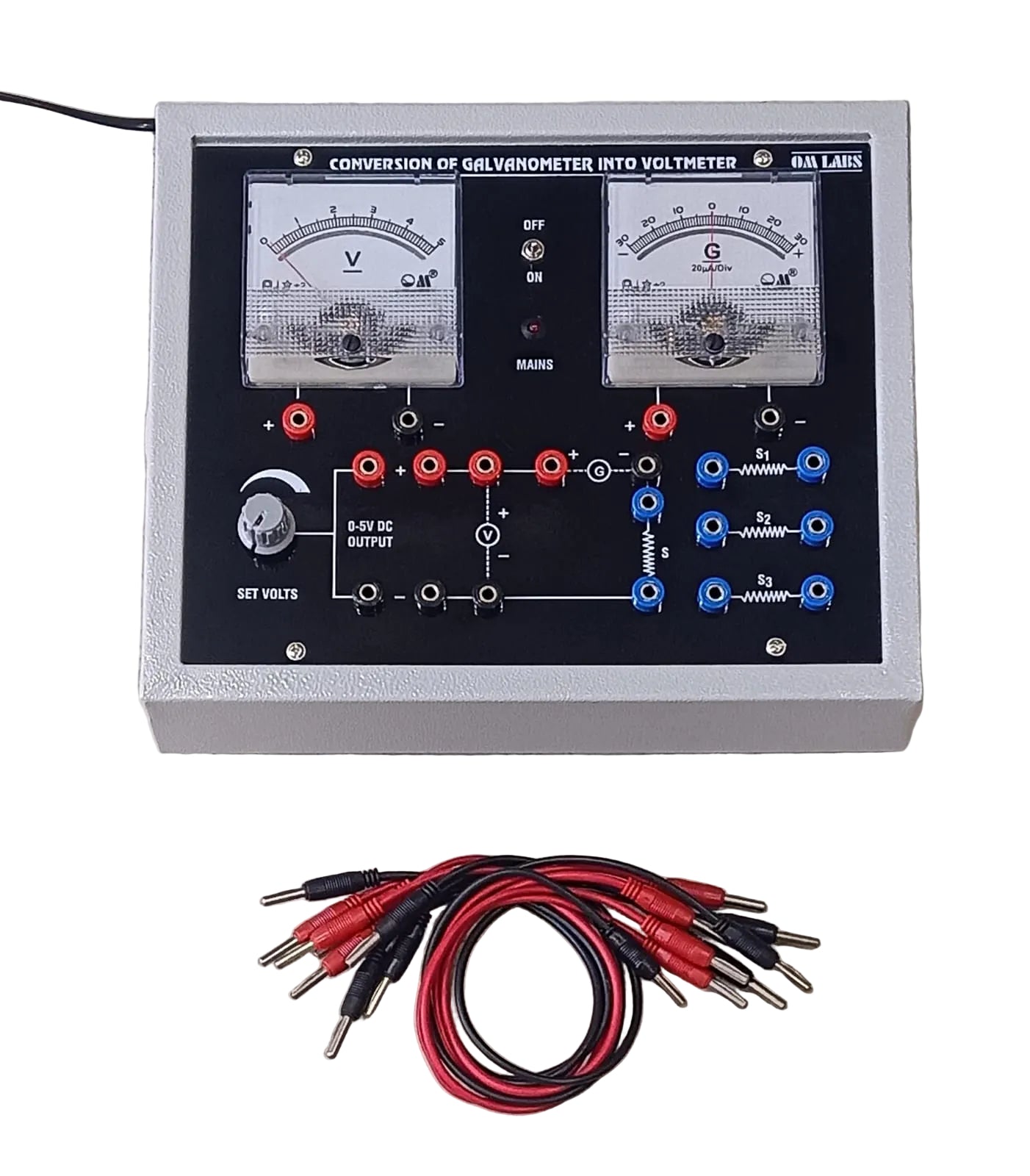

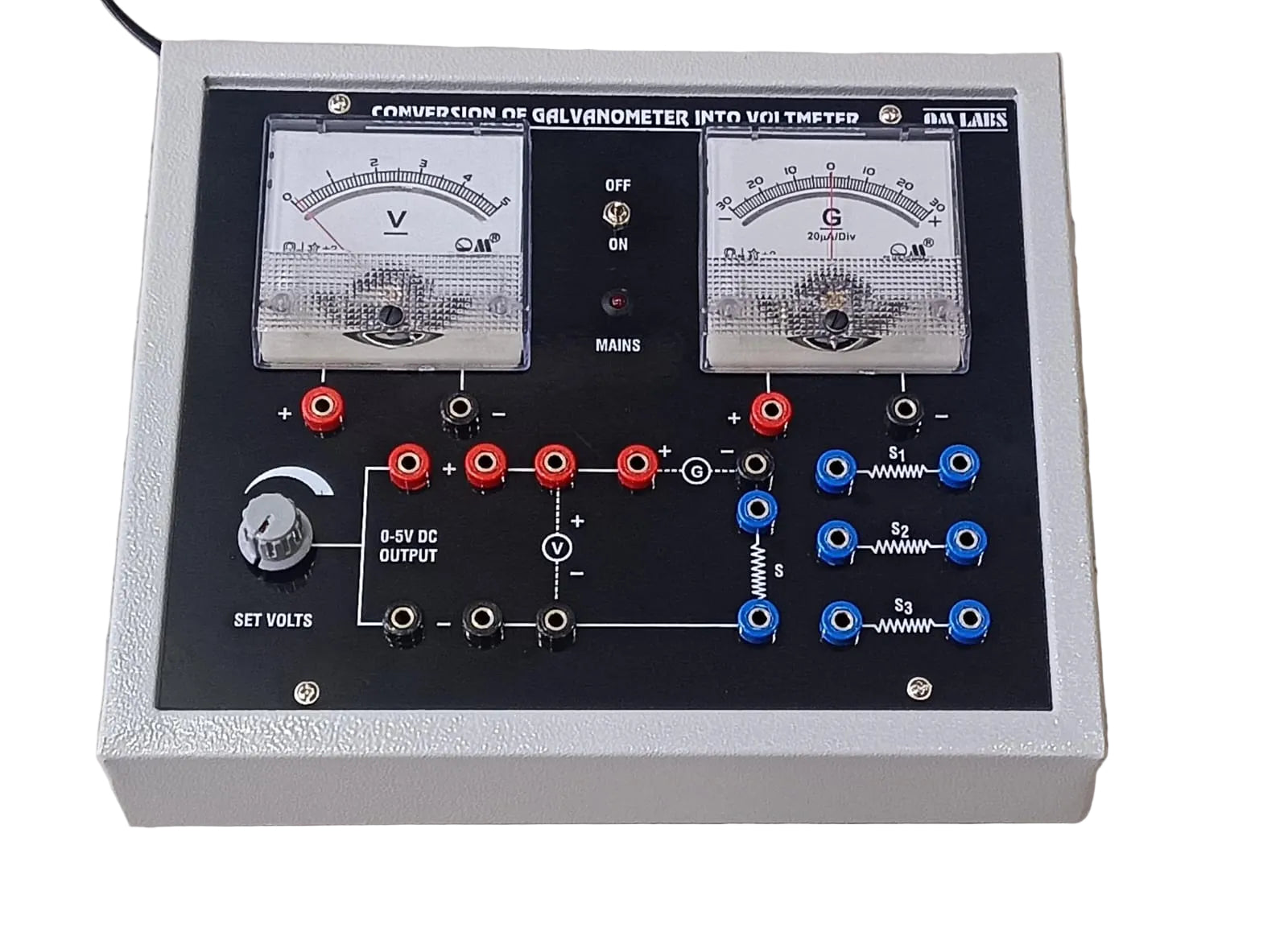

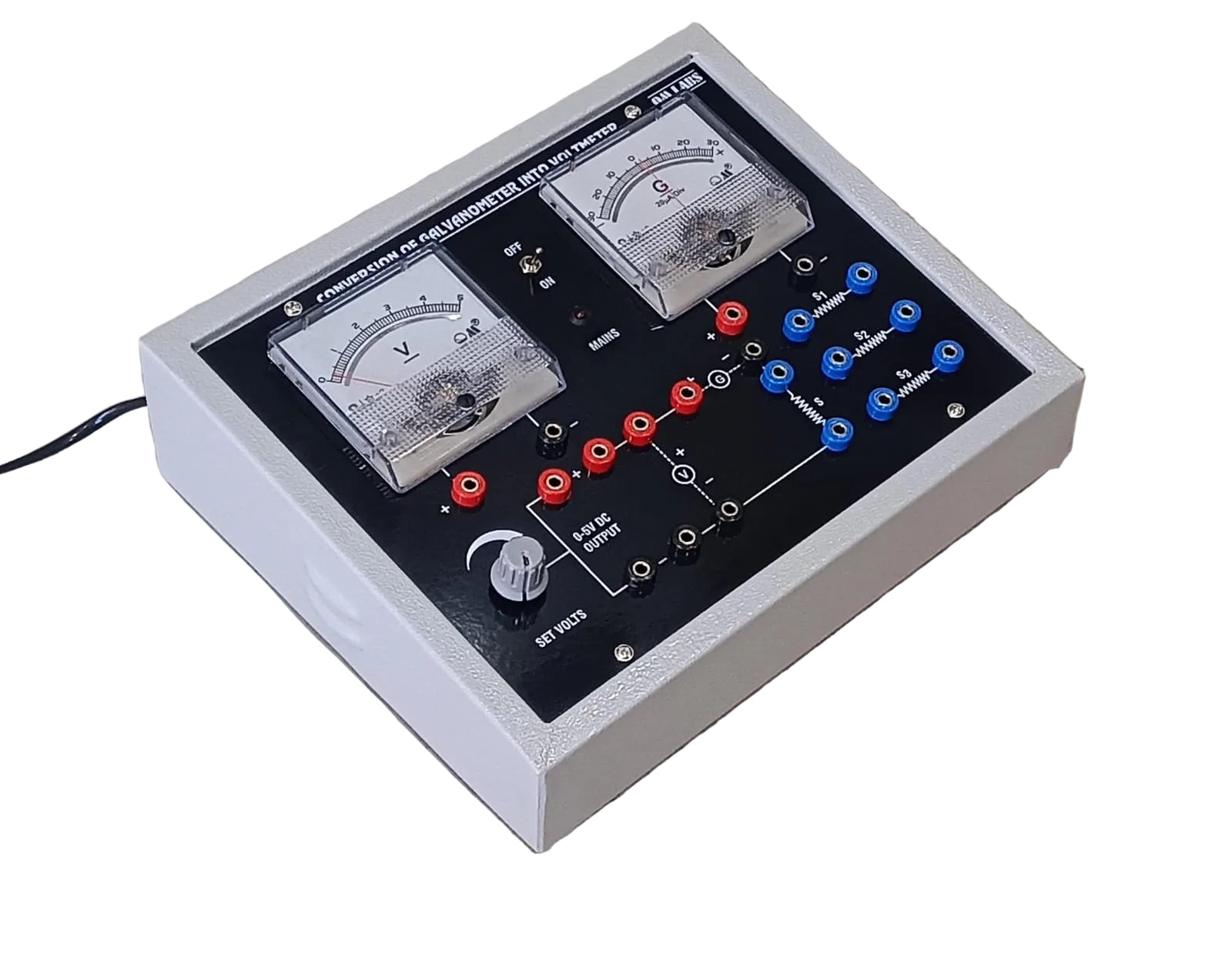

This Apparatus has been designed to calculate the value of resistance connected in series of galvanometer to convert it into voltmeter.
This instrument comprises of:
- D C Regulated Power Supply of 0-5 Volts
- Three different resistance: S1=8.28 KΩ for 5V range, S2=4.95 KΩ for 3V range, S3= 2.45 KΩ for 1.5V range.
- Moving coil galvanometer (Resistance G=50Ω)
- Full scale deflection current =600uA
- Voltmeter are mounted on front panel
- In this instrument the required resistance connected in the series with galvanometer, so that the combination becomes a voltmeter of required range.
-
Weight: 1.550 kg Approx.
-
Dimensions: 28 cm X 23 cm X 9 cm Approx.
-
Brand: OM LABS
-
GST: General Standard 18%
-
HSN CODE: 8541
- Package: 30*26*12, Weight: 1.790 kg
| Weight |
2.368 kg
|
| Dimensions |
13 × 27 × 33 cm |
