Clipping & Clamping Circuit Apparatus using diode ( Plastic Box)

Specification:

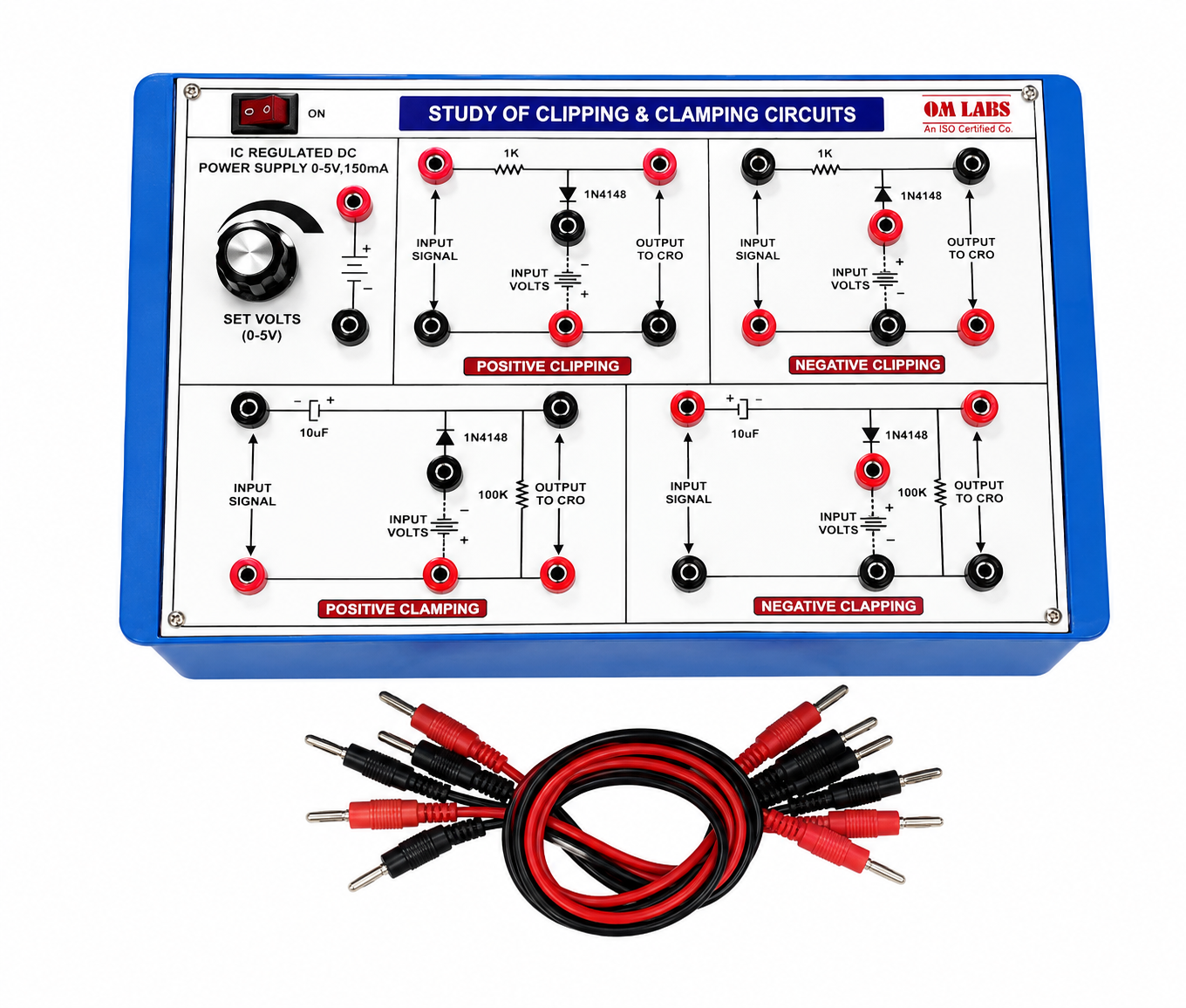

Product Name: Clipping & Clamping Circuit Apparatus Using Diode (Plastic Box)

Product Type: Electronics Laboratory Trainer Kit

Experiment: Study of Diode Clipping and Clamping Circuits

Enclosure: High-Impact ABS Plastic Box

Circuit Type: Built-in Clipper and Clamper Circuits

Components Used: Silicon Diodes, Resistors, Capacitors, PCB Mounted Components

Power Supply Input: 230 V AC ±10%, 50 Hz

Built-in DC Supply: Regulated DC Power Supply

Signal Input: External Function Generator Input (via 4 mm Banana Sockets / BNC, Model Dependent)

Input Terminals :4 mm Color-Coded Safety Banana Sockets

Output Terminals: 4 mm Color-Coded Safety Banana Sockets

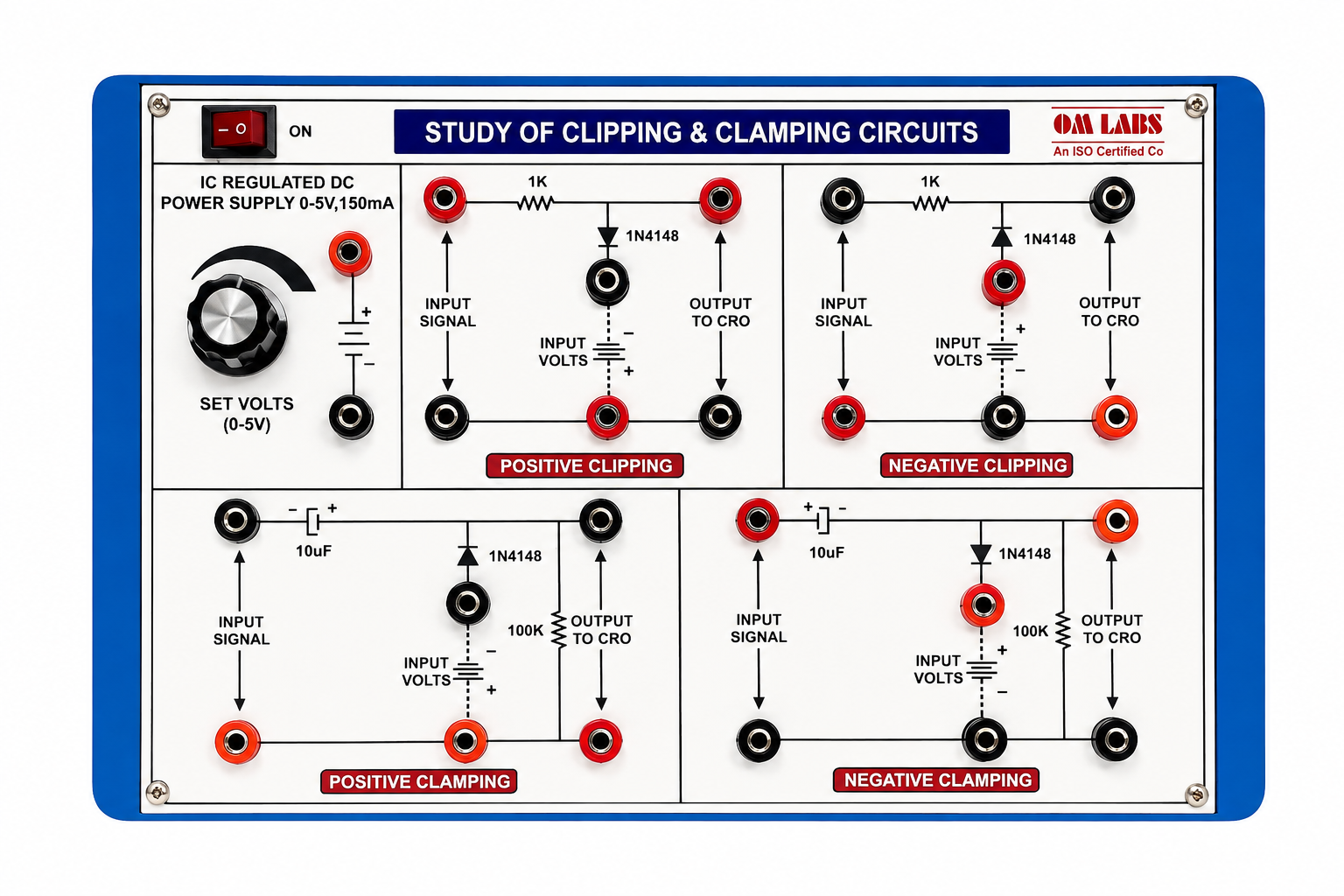

Front Panel: Printed Circuit Diagram with Component Identification

Protection: Short-Circuit and Reverse Polarity Protection

Features

• Designed to demonstrate positive and negative clipping circuits.
• Supports positive and negative clamping circuit experiments.

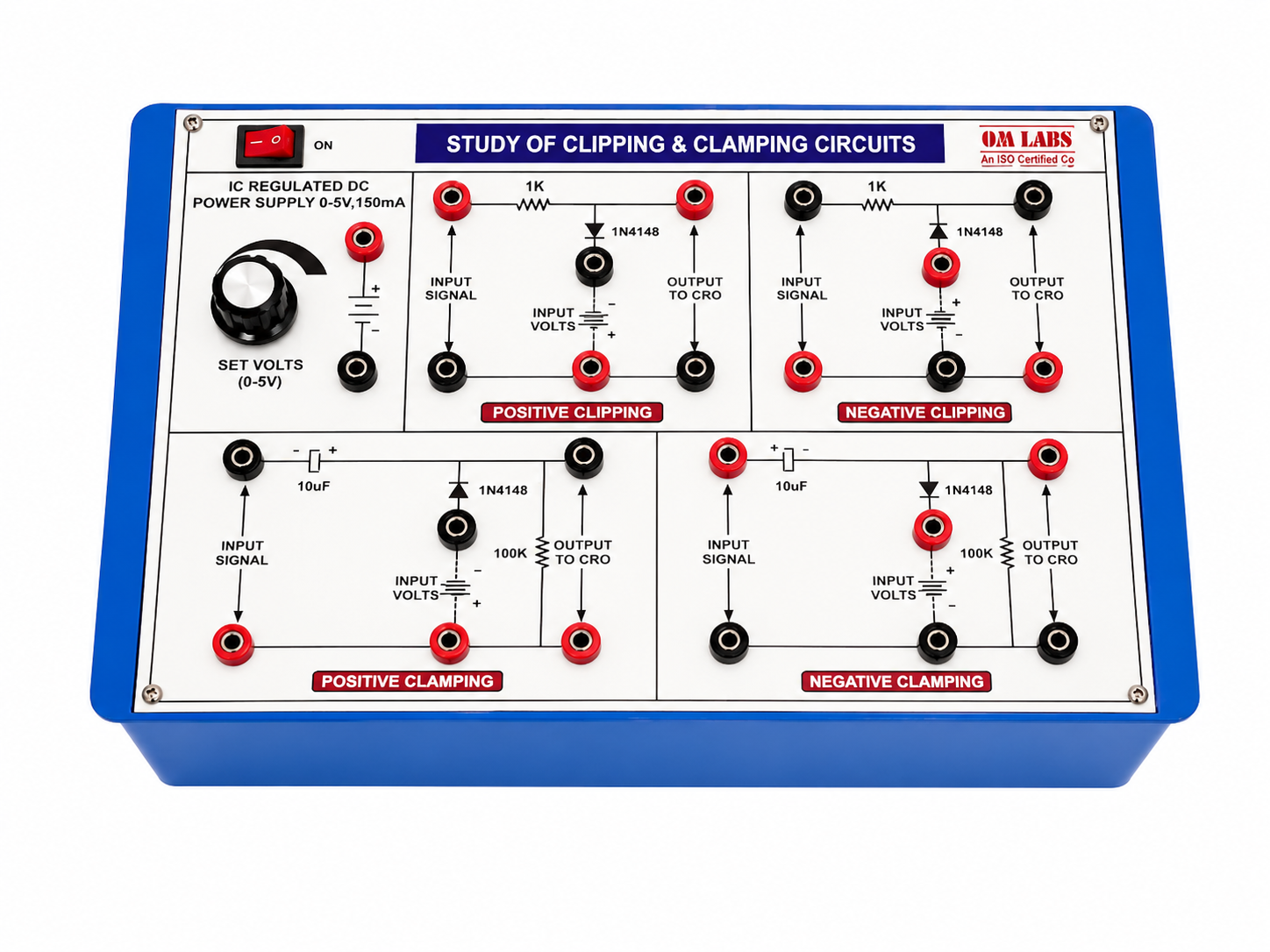

• Durable ABS plastic enclosure with printed front panel.
• Clearly marked input, output, and test terminals.
• Built-in regulated power supply for reliable operation.
• Easy-to-use design suitable for educational laboratories.
• Compact, portable, and maintenance-free construction.

• Dimensions: 32.5 x 20.5 x 8cm.
• Weight:1.260kg
• Packing: Card Board Box
• HSN CODE: 8541
• Box Dimensions:34 x 23.5 x13cm
• Weight: 1.520 kg
• GST: General Standard 18%
• CATAGORIES: ELECTRONIC APPARATUS
• BRAND: OM LABS
