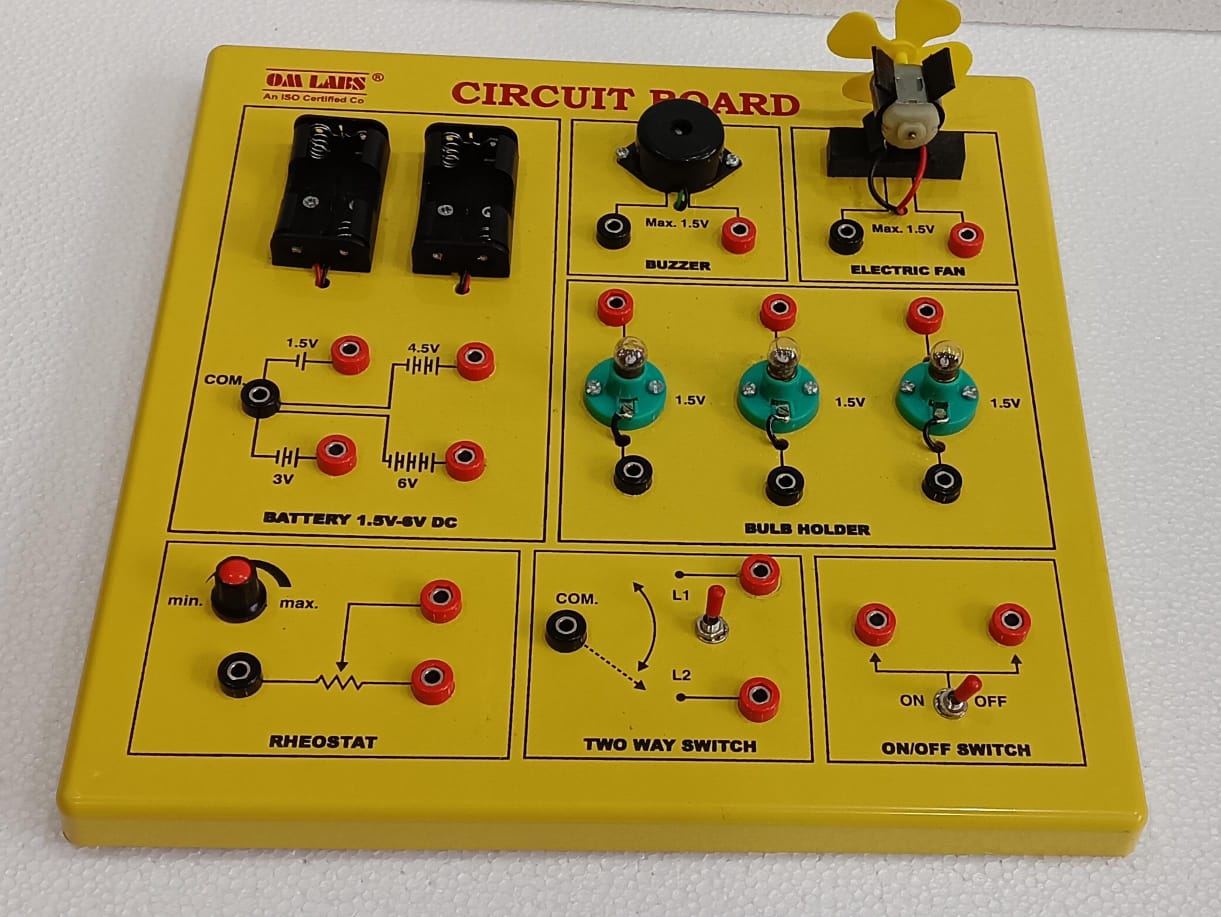

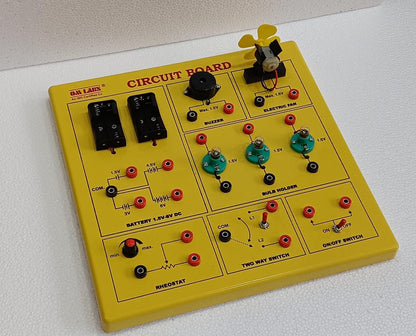

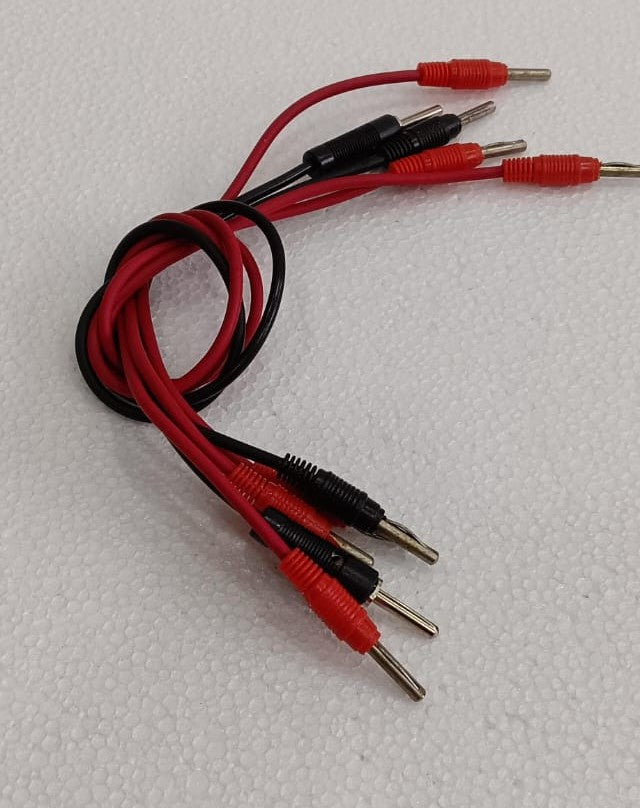

Circuit Board Model

Specification:

• Battery Section (1.5V–6V DC)

• Battery Holders: 2x holders (probably AA or AAA).
• Voltage Terminals:
  • COM (Common ground).
  • 1.5V, 3V, 4.5V, and 6V terminals.
  • Pre-configured internal series connection (1.5V steps).
• Use: Provides different voltage levels for experiments.

• Buzzer

• Voltage: Max 1.5V.
• Type: DC buzzer.
• Use: Emits sound when powered; used to indicate circuit completion or alarm.

• Electric Fan

• Voltage: Max 1.5V.
• Type: Small DC motor.
• Use: Demonstrates conversion of electrical energy to mechanical energy.

• Bulb Holders (x3)

• Voltage: 1.5V each.
• Sockets: Standard miniature screw-type.
• Use: Basic circuits, series/parallel connection experiments.

• Rheostat

• Adjustment: knob (min to max).
• Terminals: 3 (input, variable output, and ground).
• Use: Demonstrate resistance control and voltage drop.

• Two-Way Switch

• Terminals: COM, L1, L2.
• Use: Demonstrate switching between two outputs or toggling paths in a circuit

• On/Off Switch
• Use: Simple circuit control.

This circuit board is mainly used for:

• Basic electronics and physics experiments.
• School-level science education.
• Understanding current, voltage, resistance.
• Demonstrating concepts like:
  • Series and parallel connections.
  • Energy conversions (electrical → mechanical/sound/light).
  • Use of switches and controls in real-world circuits.

• Dimensions:30 x 30 x 07cm
• Weight: 618 gm
• Packing: Card Board Box
• Packing (Dimension & Weight): 31x31x8cm, Weight: 718 gm
• HSN CODE: 9023
• GST: General Standard 18%
• CATAGORIES: Physics Model
• BRAND: OM LABS
