Charging & Discharging of Condensor with Analog Meters

DISPATCHED WITHIN 1-5 Days

24 HOURS RETURN/EXCHANGE POLICY

Rs. 2,590.00

~~Rs. 3,700.00~~ Rs. 2,590.00

Sale Sold out

Shipping calculated at checkout.

SKU: OM-554

Tags: Analog meters , Charging & Discharging , Charging & Discharging of condenser with Analog Meters , Charging and discharging of capacitor , Condensor with Analog Meters , Educational Kit , educational-kits , Electronic Product , electronics

View full details

Specifications:

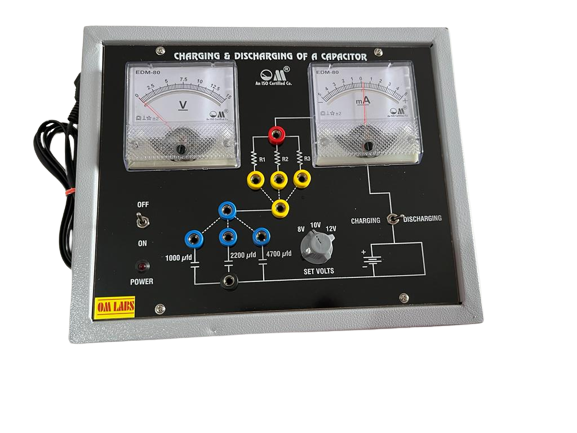

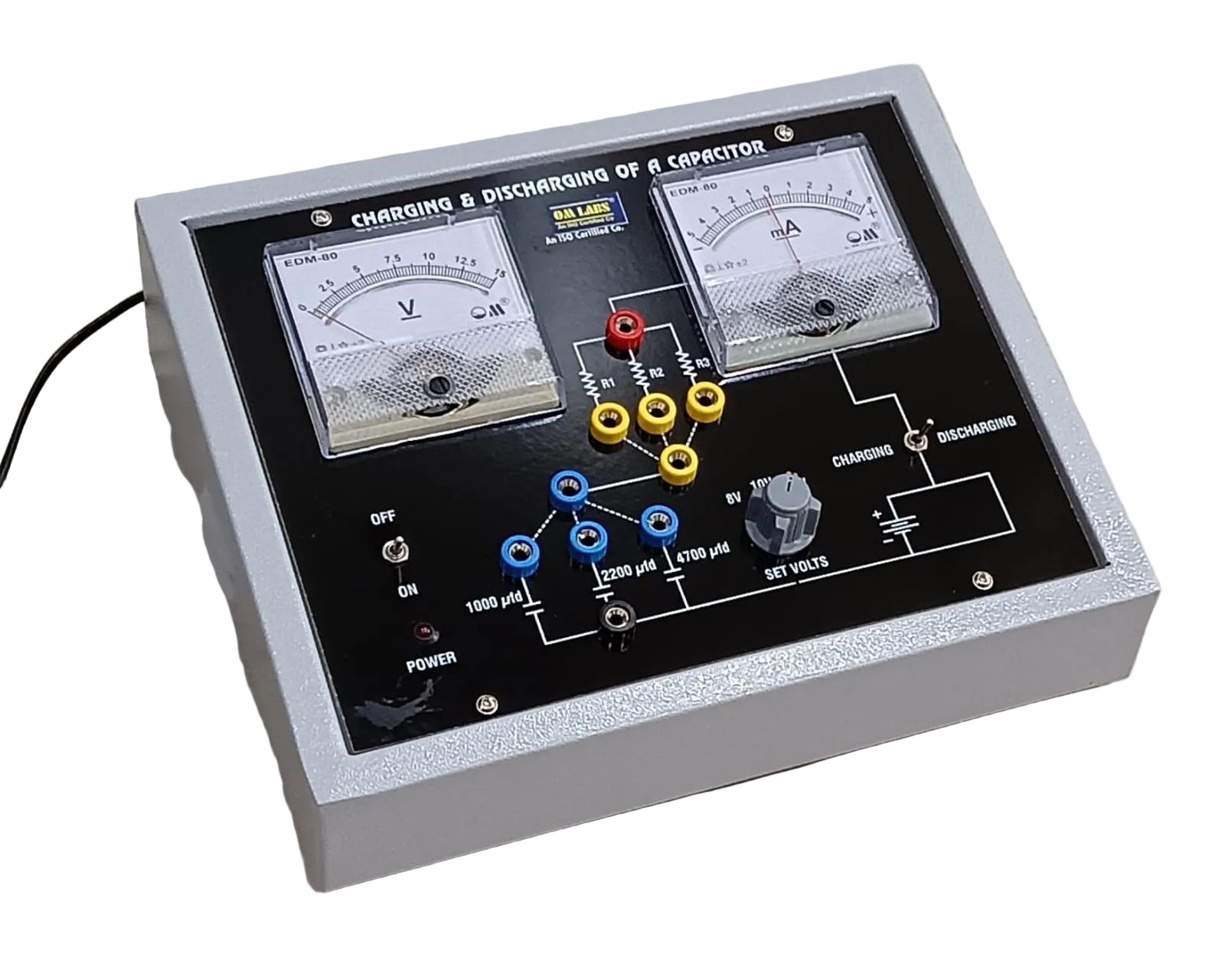

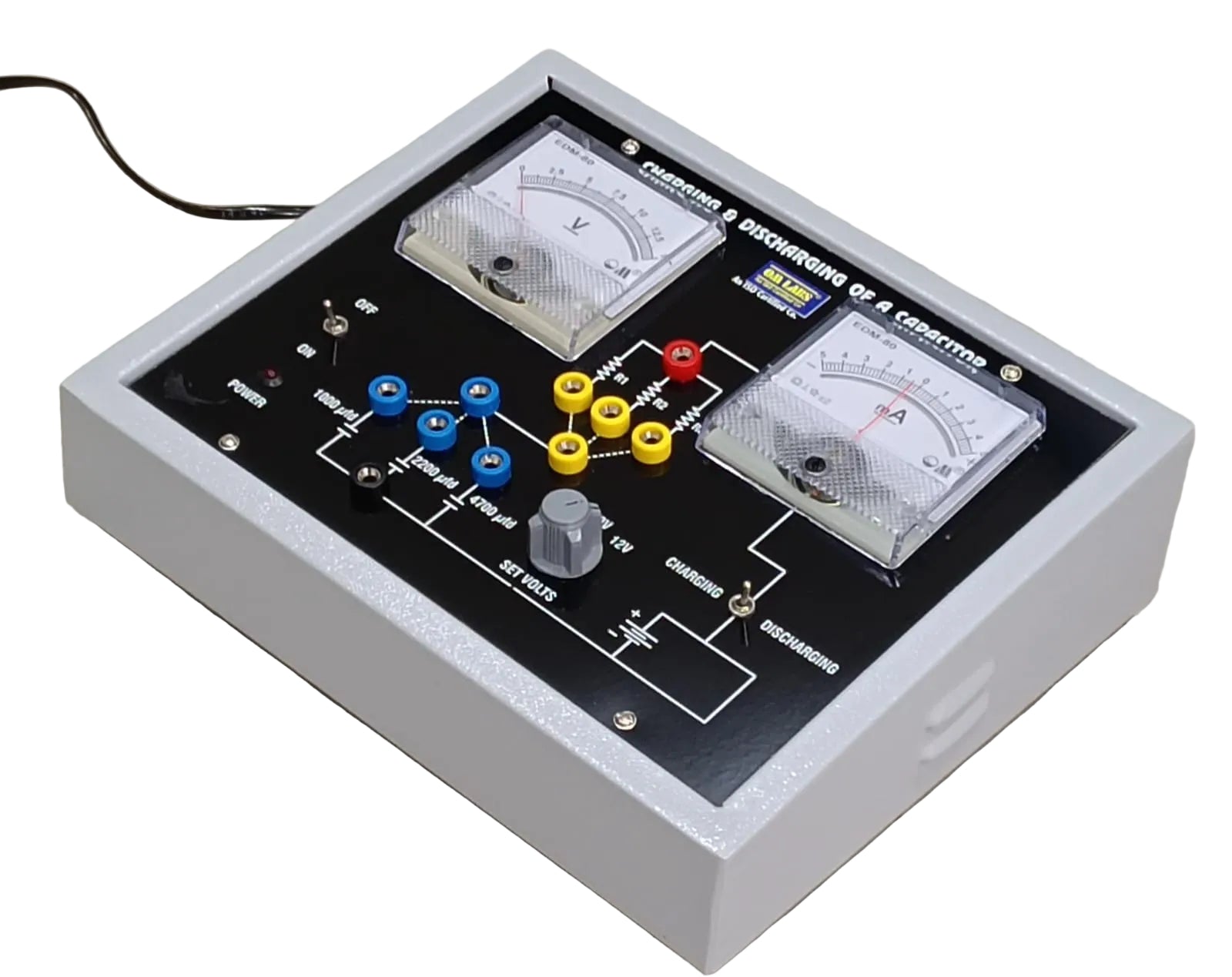

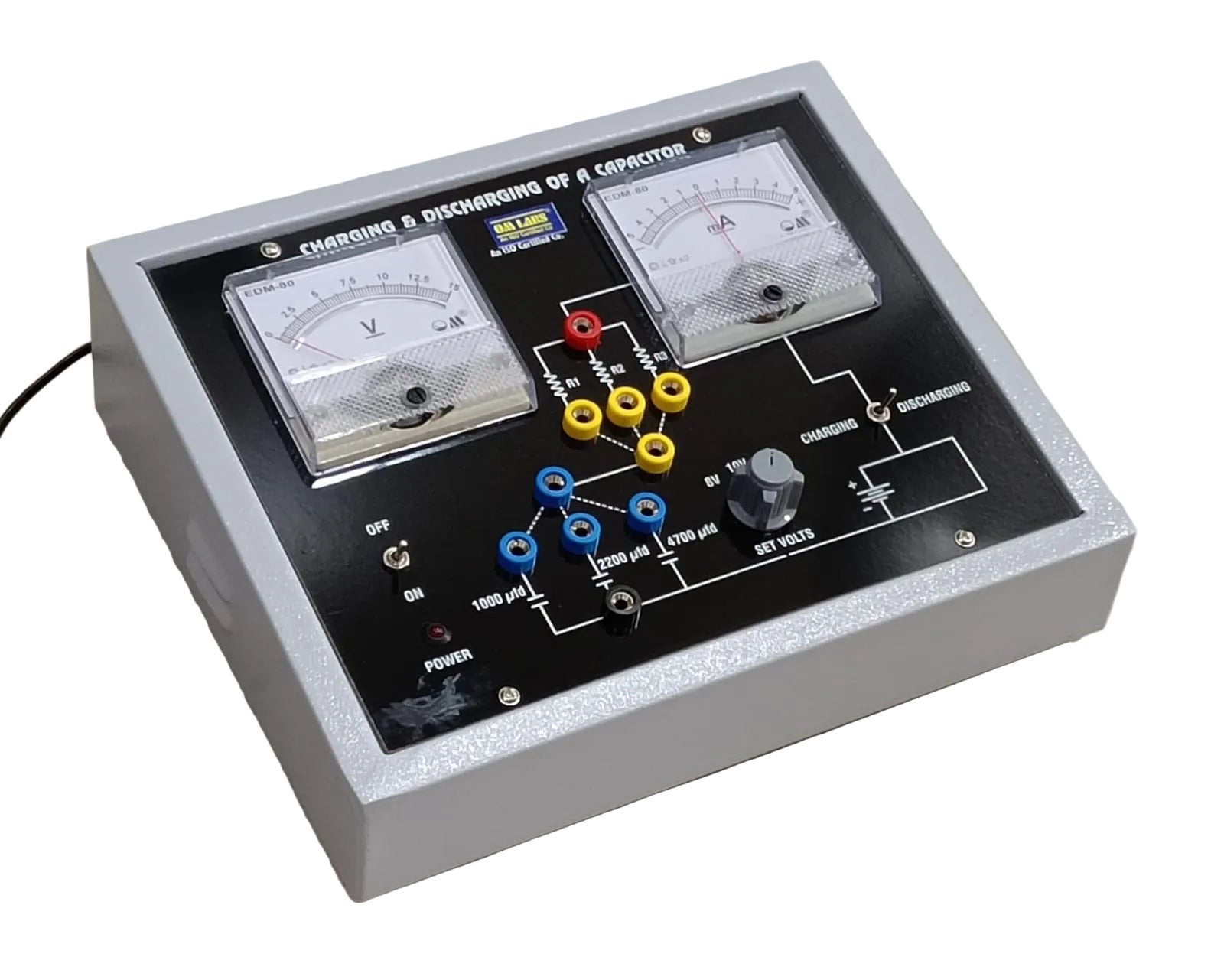

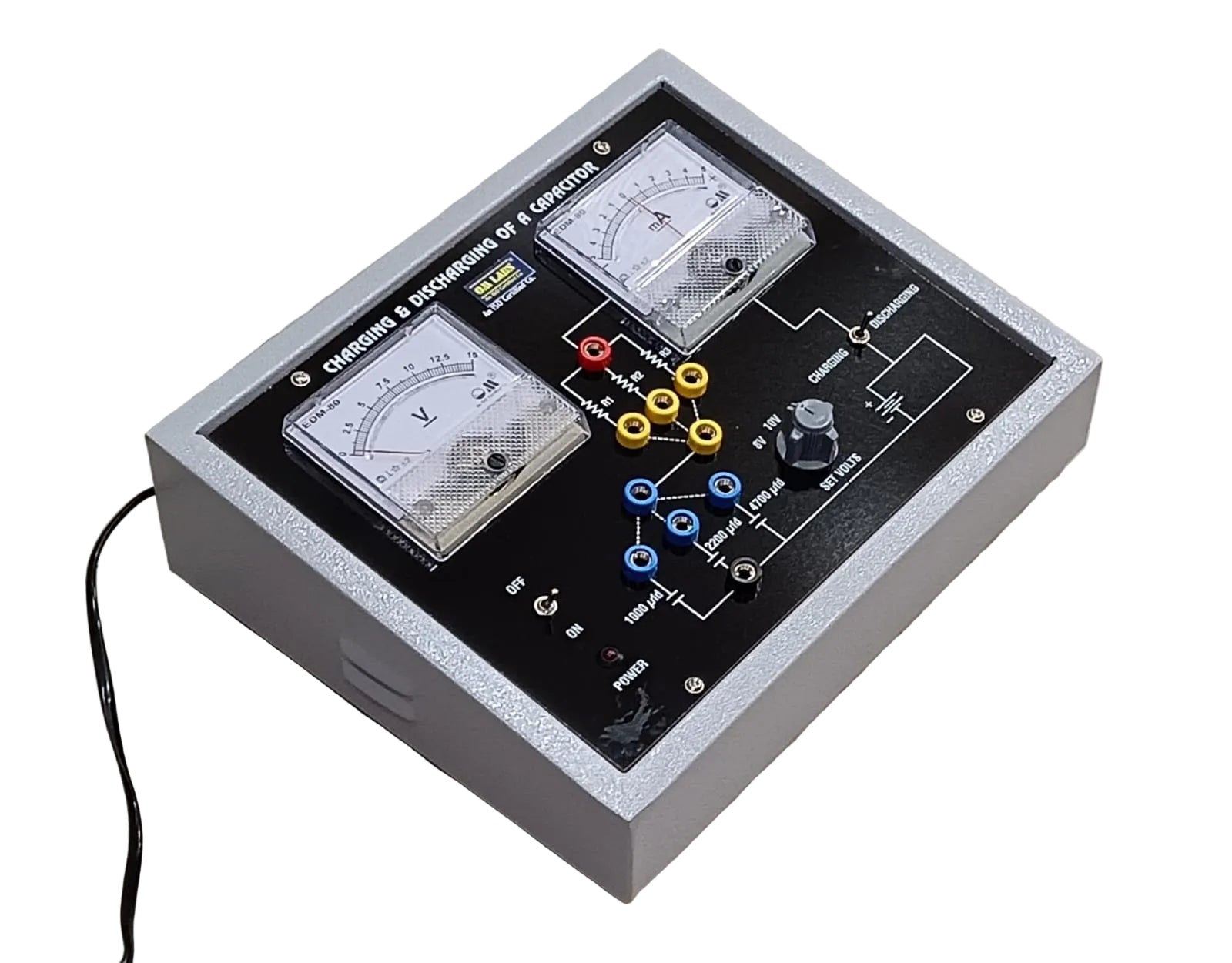

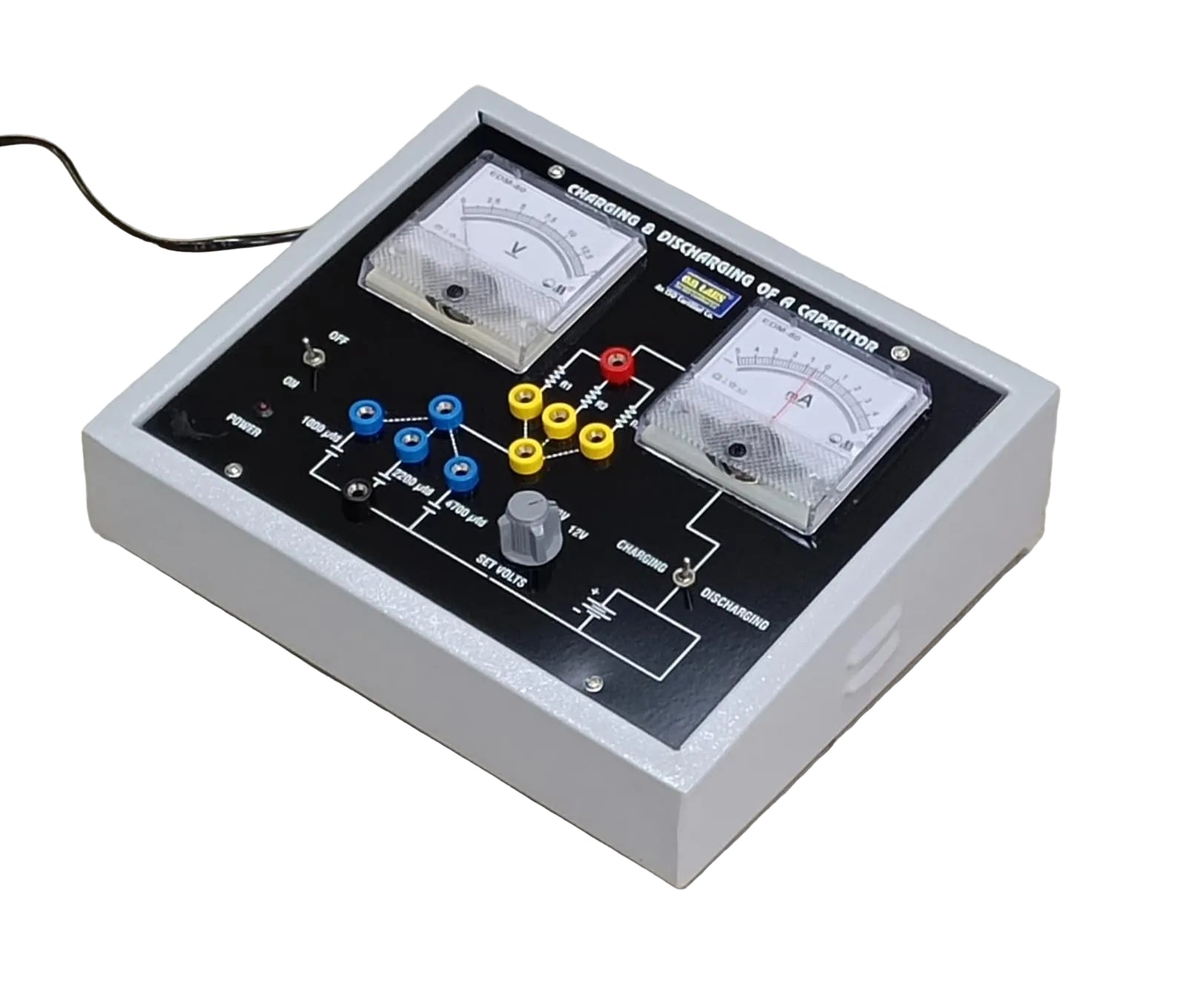

Charging & Discharging of condenser has been designed to note the charge & discharge time of condenser for different sets of Resistances & Capacitors

DC Regulated power supply of 8 V , 10 V , 12 V , Available at sockets using Bandswitch Provided on front panel
Two Analog meters are mounted on front Panel e 0.5-0-0.5 m A and one high impedence Voltmeter of 15 V
Three sets of Resistance & Capacitor connected inside & connections brought out at terminals provided on the front panel.
PACKING : Card Board Box Packing
WEIGHT : 1.8 kg Approx.
SIZE: 29 cm x 24 cm x 11 cm Approx.
HSN CODE : 854190
GST : General Standard 18%
BRAND : OM LABS

Weight	2.0 kg
Dimensions	12 × 25 × 30 cm
