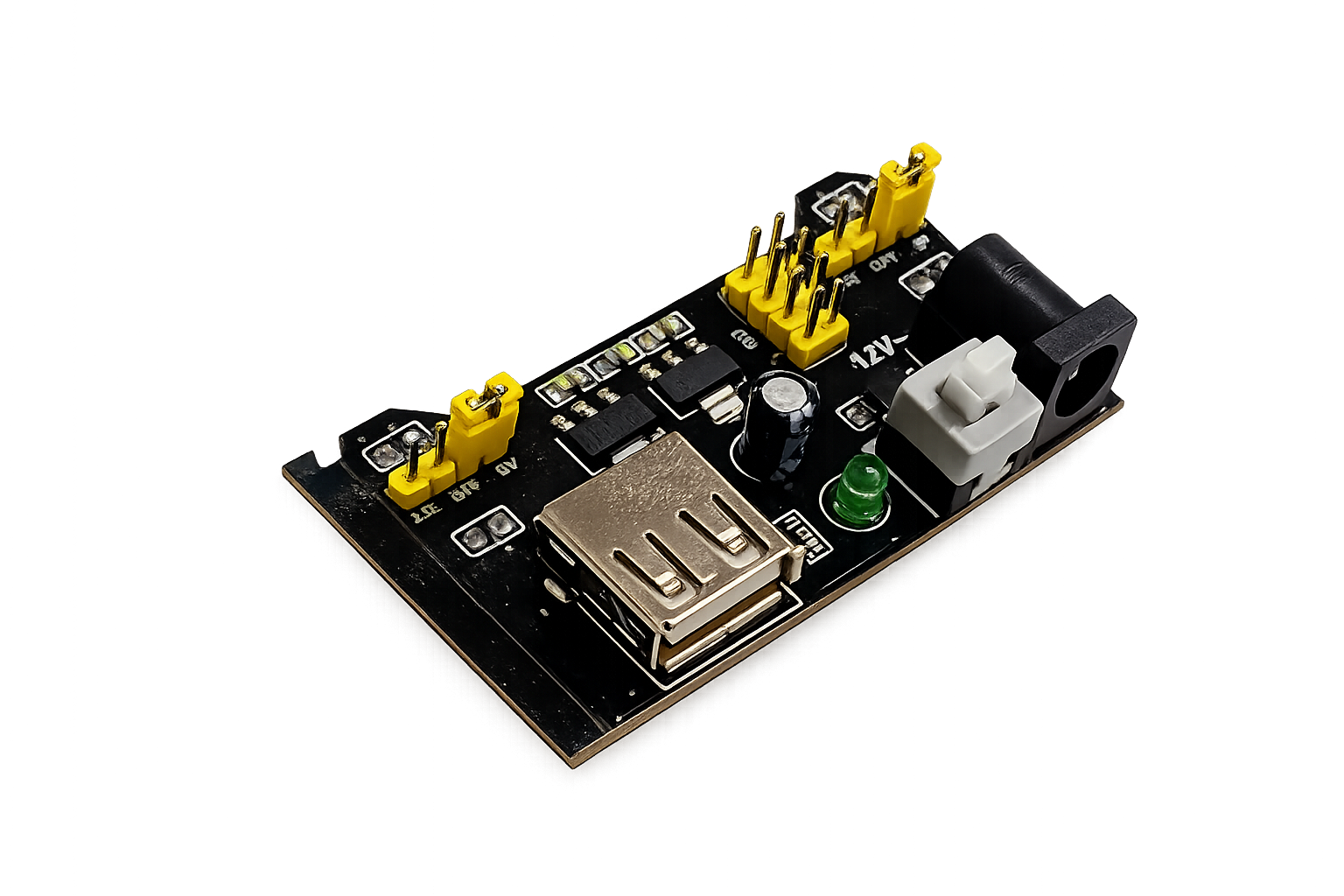

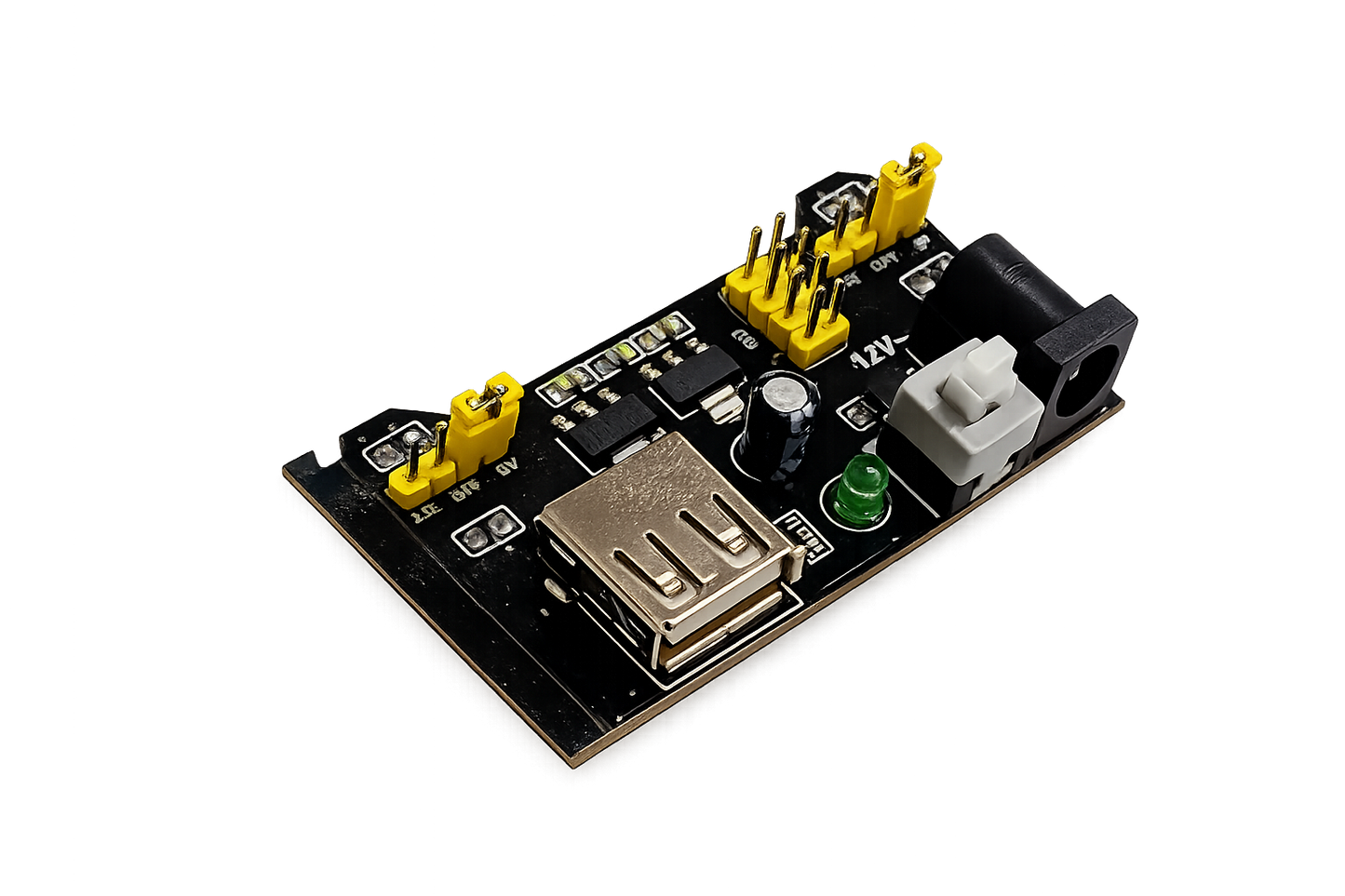

Breadboard Power Supply Module-MB102

Specification:

Ø  Product Name: Breadboard Power Supply Module

Ø  Compatibility: MB102 Breadboard Compatible

Ø  Input Voltage: 6.5V – 12V DC

Ø  Input Connector: 5.5 mm DC Barrel Jack

Ø  USB Input Voltage: 5V via USB Type-A Port

Ø  Output Voltages: 3.3V and 5V DC

Ø  Voltage Selection: Independent Jumper Selection for Left and Right Rails

Ø  Output Current: Up to 700 mA (Typical)

Ø  Voltage Regulators: AMS1117-3.3V and AMS1117-5V

Ø  Power Switch: ON/OFF Slide Switch

Ø  Power Indicator: Green LED

Ø  PCB Colour: Black

Ø  Operating Temperature: 0°C to +70°C

Ø  Dimensions: 55 × 30 × 20 mm

Ø  Weight Approx.: 12g

Ø  Mounting Type: Plug-in Breadboard Module

Ø  Electrical Characteristics Parameter:

Ø  Input Voltage Range: 6.5V – 12V DC

Ø  5V Output Accuracy: ±5%

Ø  3.3V Output Accuracy: ±5%

Ø  Maximum Output Current: 700 mA

Ø  Power Indicator: LED Green

Ø  USB Output: 5V DC

Ø  Features:

Ø  Dual regulated outputs: 3.3V and 5V.

Ø  Independent voltage selection for each breadboard power rail.

Ø  Standard DC barrel jack and USB power input.

Ø  Compact design suitable for prototyping.

Ø  Built-in ON/OFF power switch.

Ø  LED power status indication.

Ø  Directly plugs into MB102 solderless breadboards.

Ø  Ideal for STEM, robotics, Arduino, and electronics projects.

Ø  Applications: Breadboard Prototyping, Arduino Projects, STEM Education Kits, Robotics Development, Sensor Testing, Electronic Circuit Design, Educational Laboratories, DIY Electronics Projects

Ø  Dimensions:9 x 8 x 3cm Approx.

Ø  Weight:30 gm Approx.
