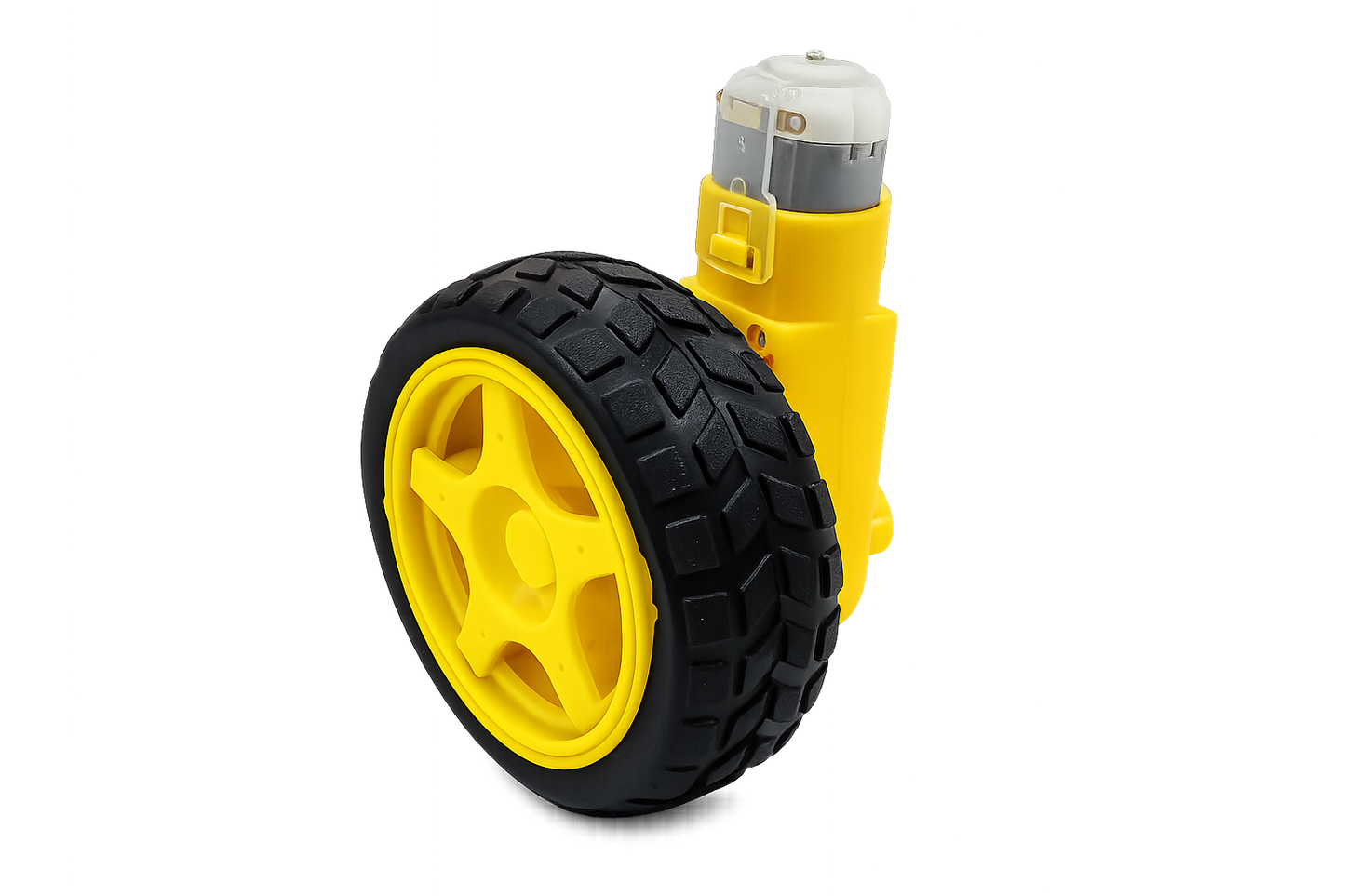

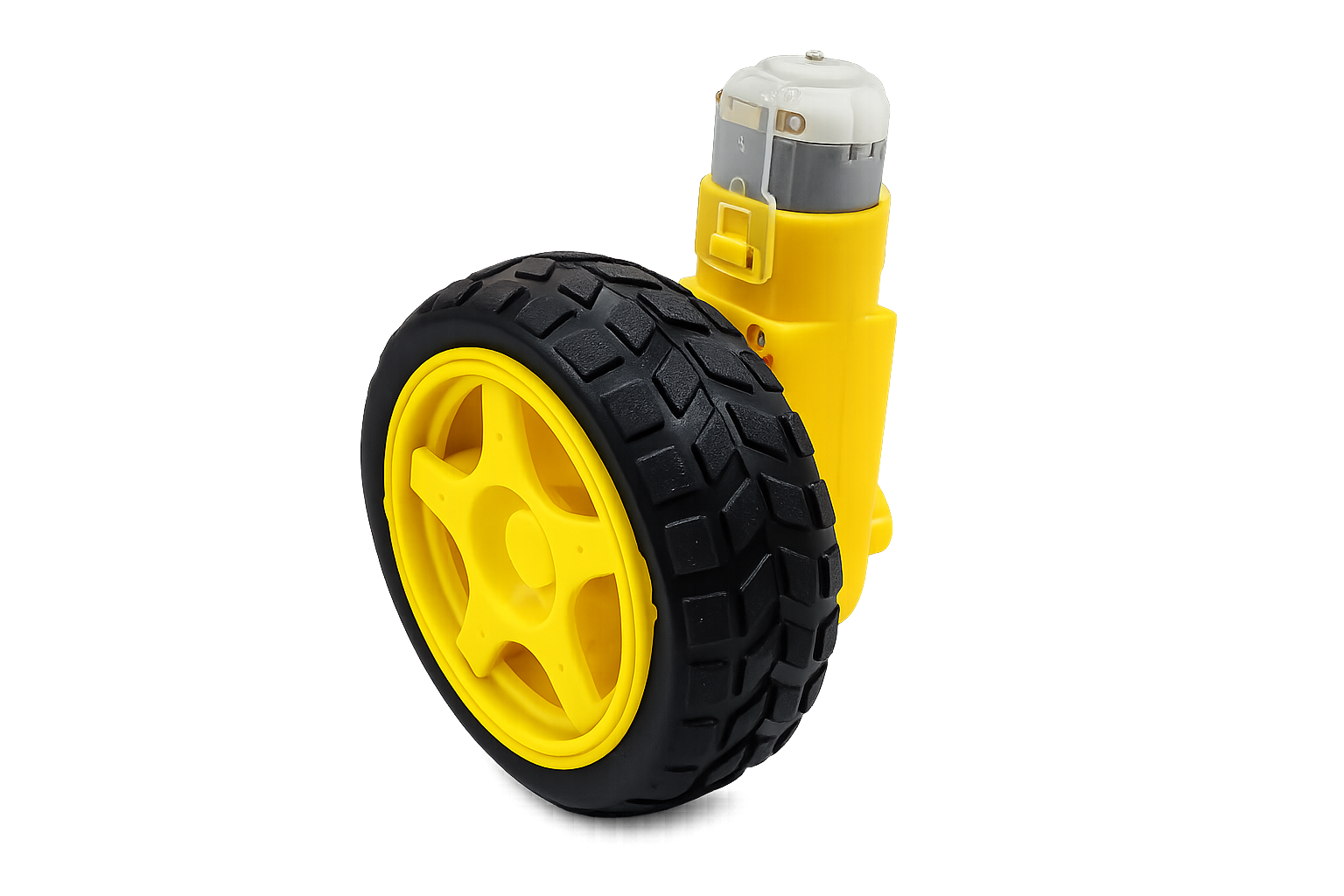

BO MOTOR WITH WHEEL ( SIDE SHAFT)

Specification:

The BO Motor with Wheel (Side Shaft) is a compact and lightweight DC geared motor supplied with a durable plastic wheel, specifically designed for robotics, STEM education, and DIY electronics projects. Its integrated gearbox provides high torque at low speed, making it ideal for driving robot cars and other mobile platforms. The side-mounted output shaft ensures secure wheel attachment and smooth power transmission, while the lightweight construction makes it suitable for educational and hobby applications.

Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms (when used with a motor driver), this motor is widely used in line follower robots, obstacle avoidance robots, smart vehicles, and automation projects. The included wheel features a high-grip rubber tire that provides excellent traction on various indoor surfaces.

Technical Specification

·         Product Type: DC Geared BO Motor with Wheel

·         Shaft Type: Side Shaft

·         Motor Type: Brushed DC Geared Motor

·         Operating Voltage: 3V – 12V DC

·         Rated Voltage: 6V DC

·         No-Load Speed: 100–300 RPM (model dependent)

·         Typical Speed: 200 RPM

·         Gearbox Type: Plastic Spur Gear Reduction

·         Output Shaft: Double D-Type Side Shaft

·         Shaft Diameter: Approximately 5.5 mm

·         Wheel Diameter: Approximately 65 mm

·         Wheel Width: Approximately 27 mm

·         Wheel Material: ABS Plastic with Rubber Tire

·         Motor Current: 70–250 mA (Typical)

·         Stall Current: Up to 1 A (Approx.)

·         Rotation Direction: Clockwise (CW) / Counter clockwise (CCW)

·         Mounting: Compatible with Standard BO Motor Brackets

·         Operating Temperature: -10°C to +60°C
