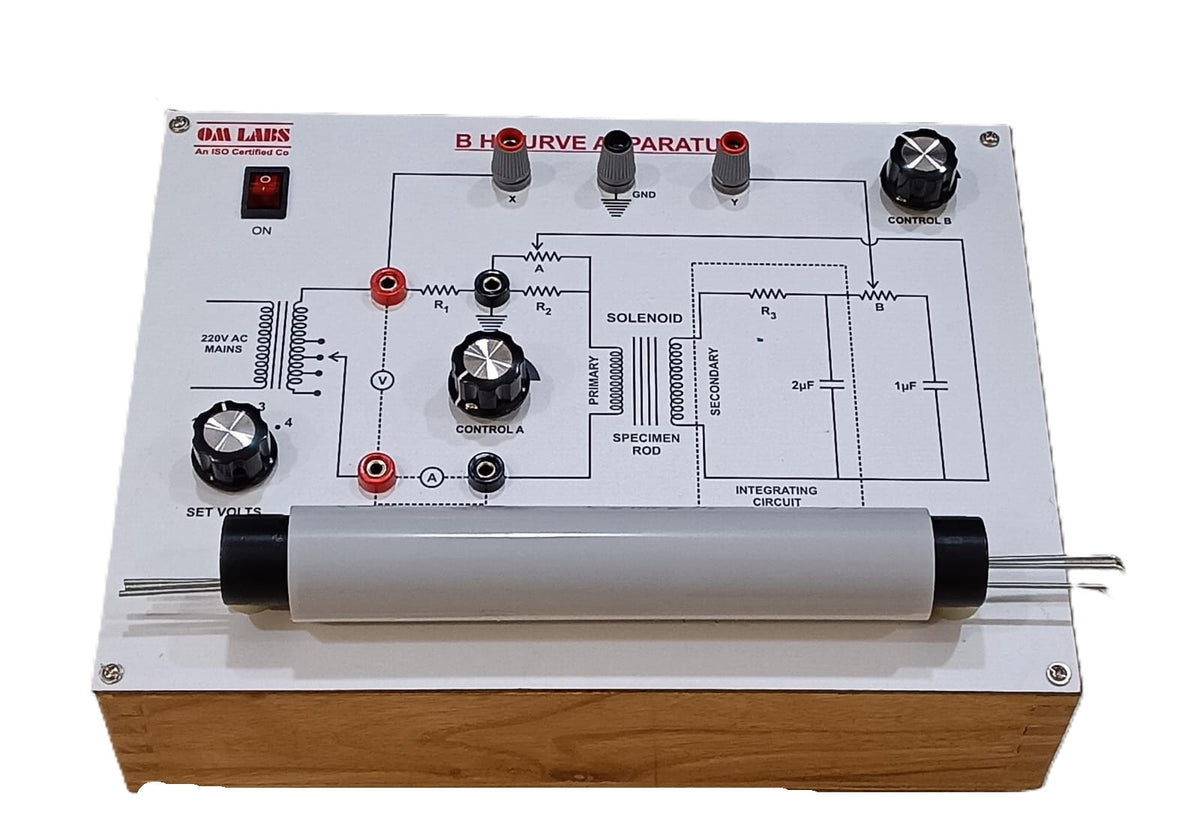

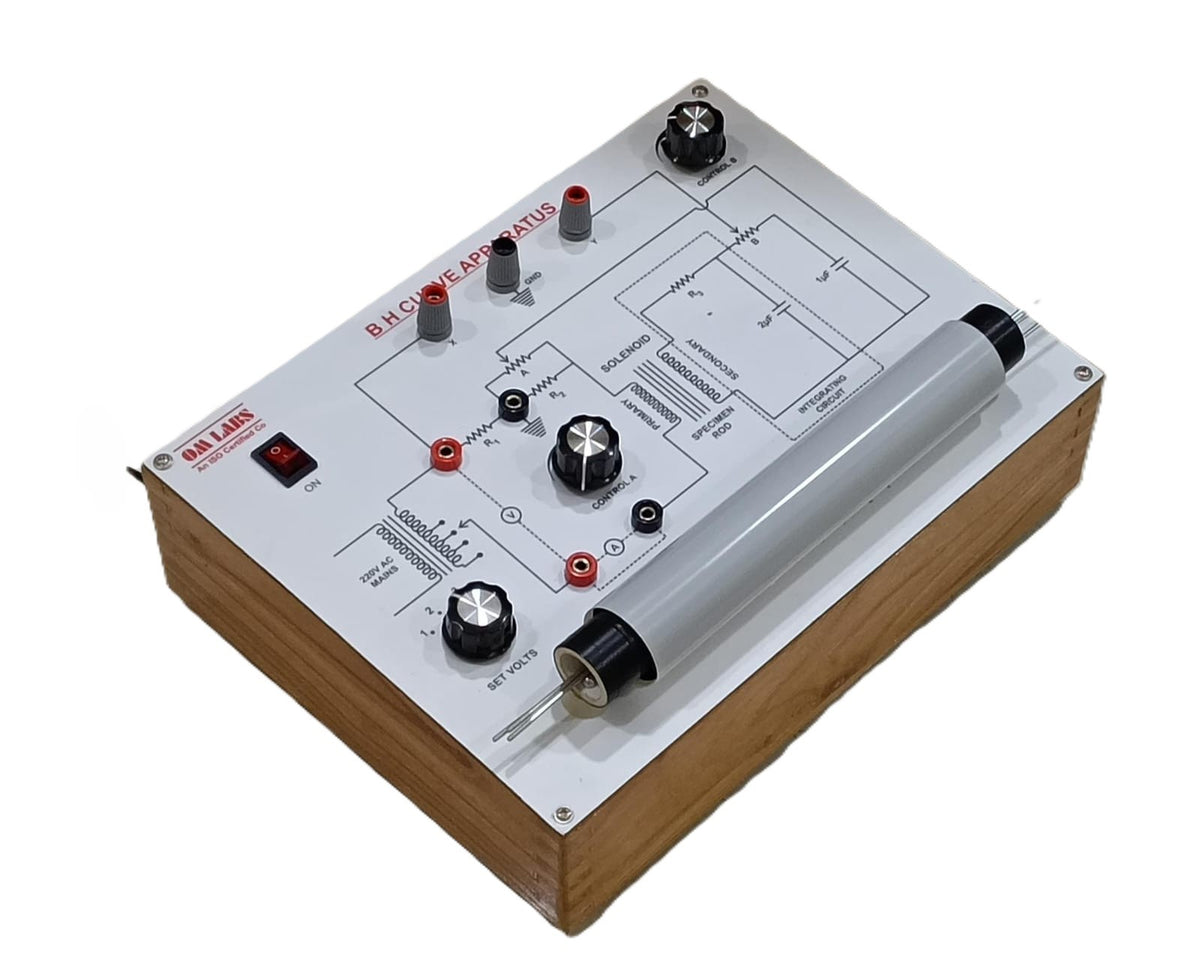

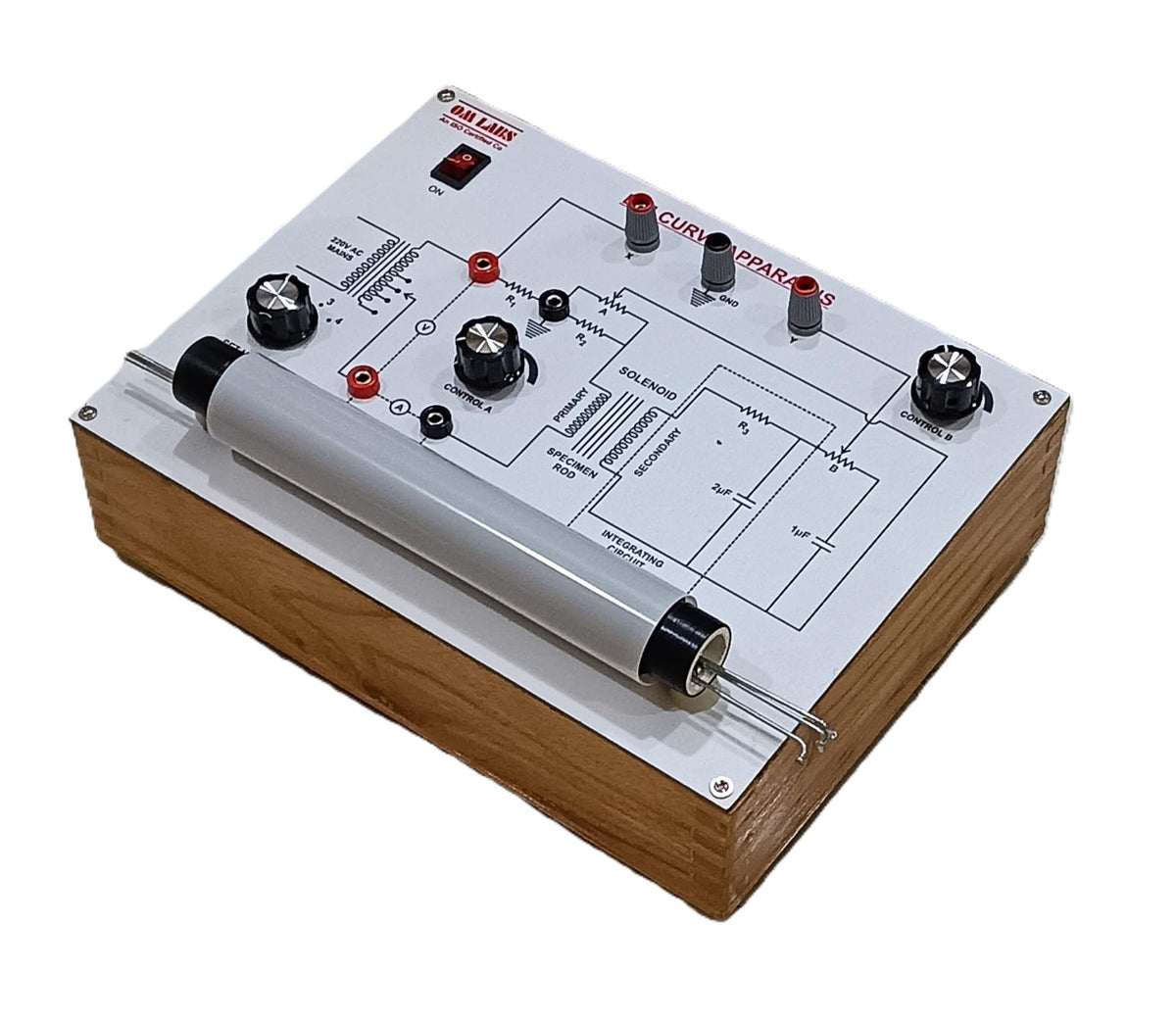

BH CURVE APPARATUS WOODEN BOX

Specification:

Model / Type: B-H Curve / Hysteresis Loop Apparatus

Input Supply: 220 V AC Mains

Magnetizing Unit: Solenoid with primary winding

Specimen: Removable magnetic specimen rod

Secondary Winding: Provided for induced EMF measurement

Integrating Circuit: Built-in electronic/passive integrating network

Capacitors: 2 µF and 1 µF, as marked on the panel

Resistors: R1, R2 and R3 integrated into the circuit

Controls: Control A, Control B and Set Volts control

Terminals: X, Y and GND terminals provided

Panel Indicators :Circuit symbols/connection points for V and A measurement

Construction: Sturdy wooden base with laminated/printed control panel

Safety:  ON/OFF mains switch and dedicated ground terminal

Experiment: Plotting B-H curve and studying magnetic hysteresis

Educational Level: B.Sc., M.Sc., Engineering and Physics Laboratory
