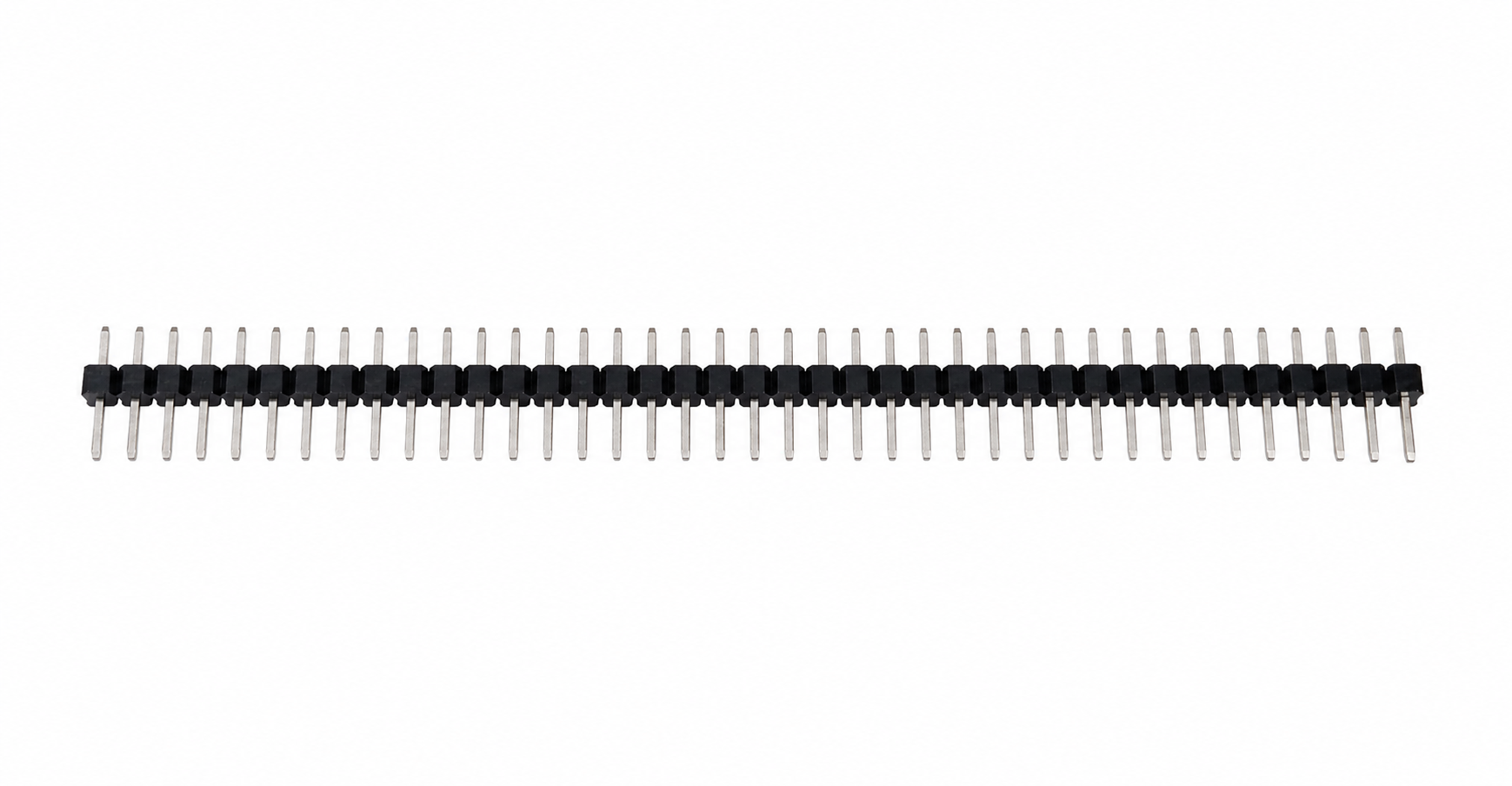

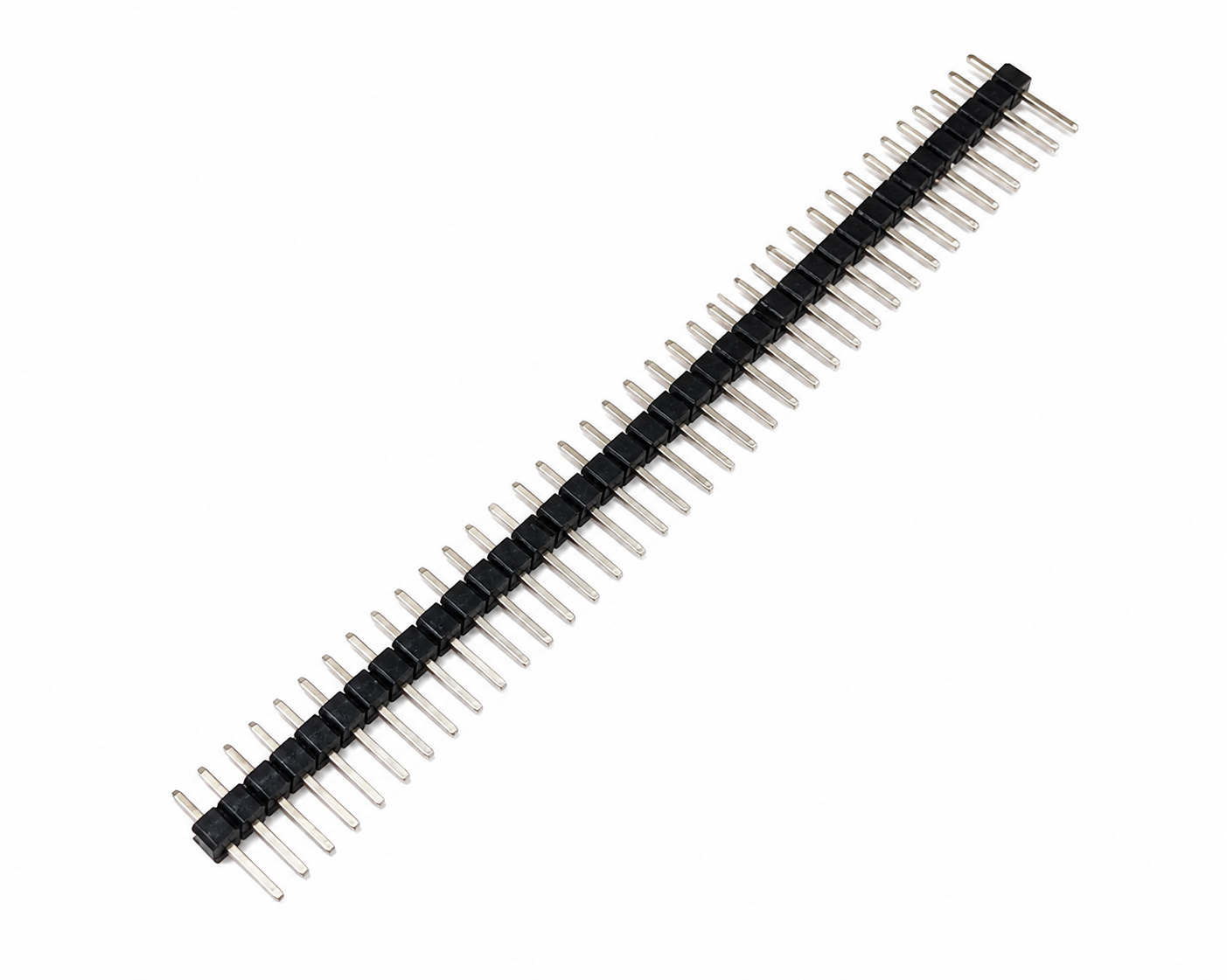

BERG STRIPS MALE 1 x 40 PINS

Specification:

The Male Berg Strip (40 Pins) is a widely used electronic connector consisting of a row of 40 male header pins mounted on an insulating plastic base. These strips are commonly used for making electrical connections on printed circuit boards (PCBs), breadboards, development boards, and electronic modules.

The 40-pin male berg strip can be easily cut into smaller sections as required, making it highly versatile for prototyping, circuit development, educational projects, and electronic equipment assembly. It is compatible with standard 2.54 mm (0.1 inch) pitch connectors and breadboards, making it a fundamental component in electronics laboratories and STEM projects.

Technical Specifications

Ø  Product Name: Male Berg Strip

Ø  Number of Pins: 40 Pins

Ø  Pin Type: Male Header

Ø  Pitch:2.54 mm (0.1 inch)

Ø  Mounting Type: Through-Hole PCB Mount

Ø  Contact Material: Brass / Copper Alloy

Ø  Contact Plating: Tin-Plated or Gold-Flashed (varies by model)

Ø  Insulator Material: High-Temperature Thermoplastic

Ø  Pin Length: Approx. 11 mm

Ø  Pin Thickness: Approx. 0.64 mm Square Pin

Ø  Current Rating: Up to 3 A per Pin (Typical)

Ø  Voltage Rating: Up to 250 V AC/DC (Typical)

Ø  Operating Temperature: -40°C to +105°C

Ø  Colour: Black Insulator with Metallic Pins

Ø  Length: 10cm*1cm @ Weight: 3gm
