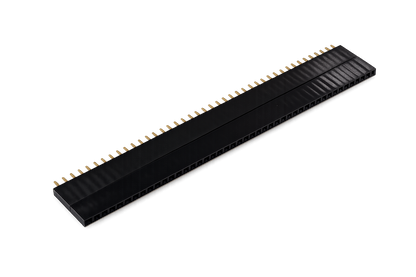

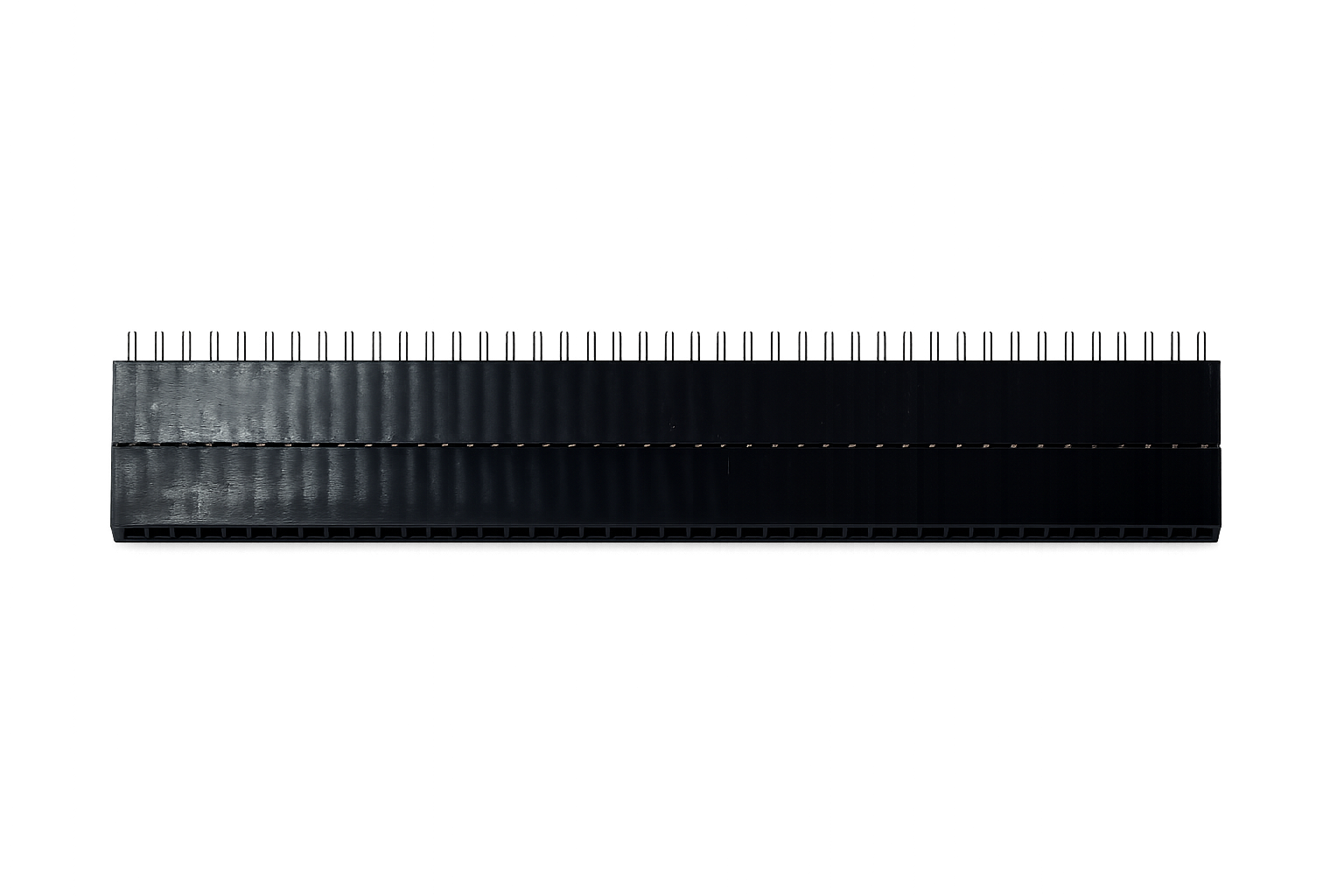

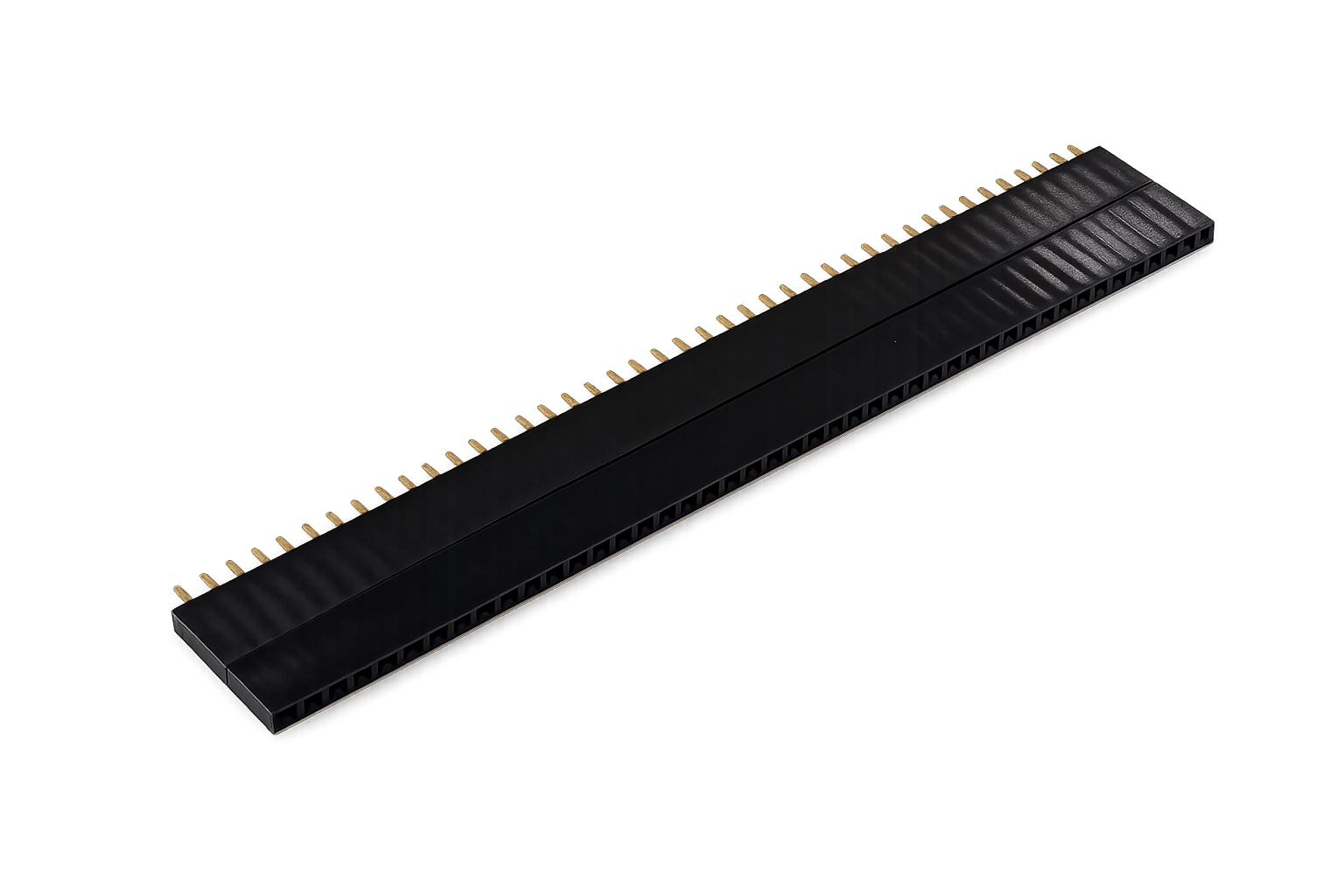

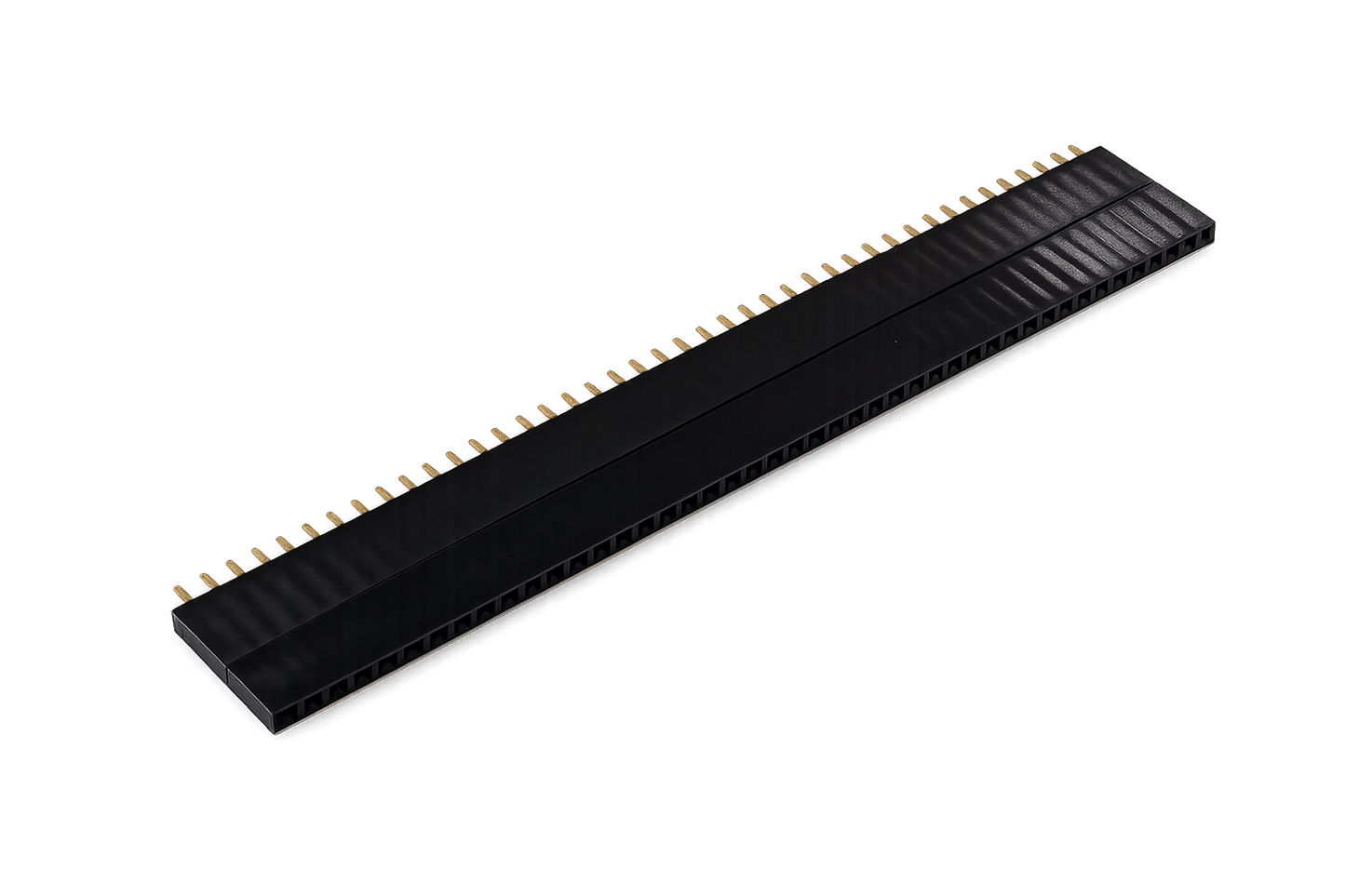

BERG STRIPS FEMALE 1 x 40 PINS

Specification:

The Berg Strip Female 1×40 Pins is a single-row female header connector widely used in electronic circuits, development boards, prototyping, PCB assemblies, and embedded systems. It provides a reliable socket interface for standard male header pins, jumper wires, and module connections. The strip can be easily cut into smaller sections to achieve the required pin count for custom applications.

Key Features

·         Single-row female header with 40 pins

·         Standard 2.54 mm (0.1 inch) pitch

·         Through-hole PCB mounting

·         Breakaway design for custom pin lengths

·         Compatible with Arduino, Raspberry Pi, ESP32, sensors, and breadboard projects

·         Durable plastic housing with metal contacts

·         Suitable for signal and power connections

·         Easy soldering and reliable electrical contact

Technical Specifications

Ø  Product Type: Female Berg Strip Header

Ø  Configuration: 1 × 40 Pins

Ø  Number of Rows: 1

Ø  Number of Pins: 40

Ø  Pitch (Pin Spacing): 2.54 mm (0.1")

Ø  Strip: Female

Ø  Mounting Type: Through-Hole

Ø  Orientation: Straight

Ø  Contact Material: Phosphor Bronze / Metal Contacts

Ø  Housing Material: PBT / Engineering Plastic

Ø  Contact Resistance: ≤ 20 MΩ

Ø  Insulation Resistance: ≥ 1000 MΩ

Ø  Strip Length: 100mm

Ø  Width: 2.0–2.4 mm

Ø  Height: 8mm

Ø  Dimension: 10*1cm

Ø  Weight: 6gm
