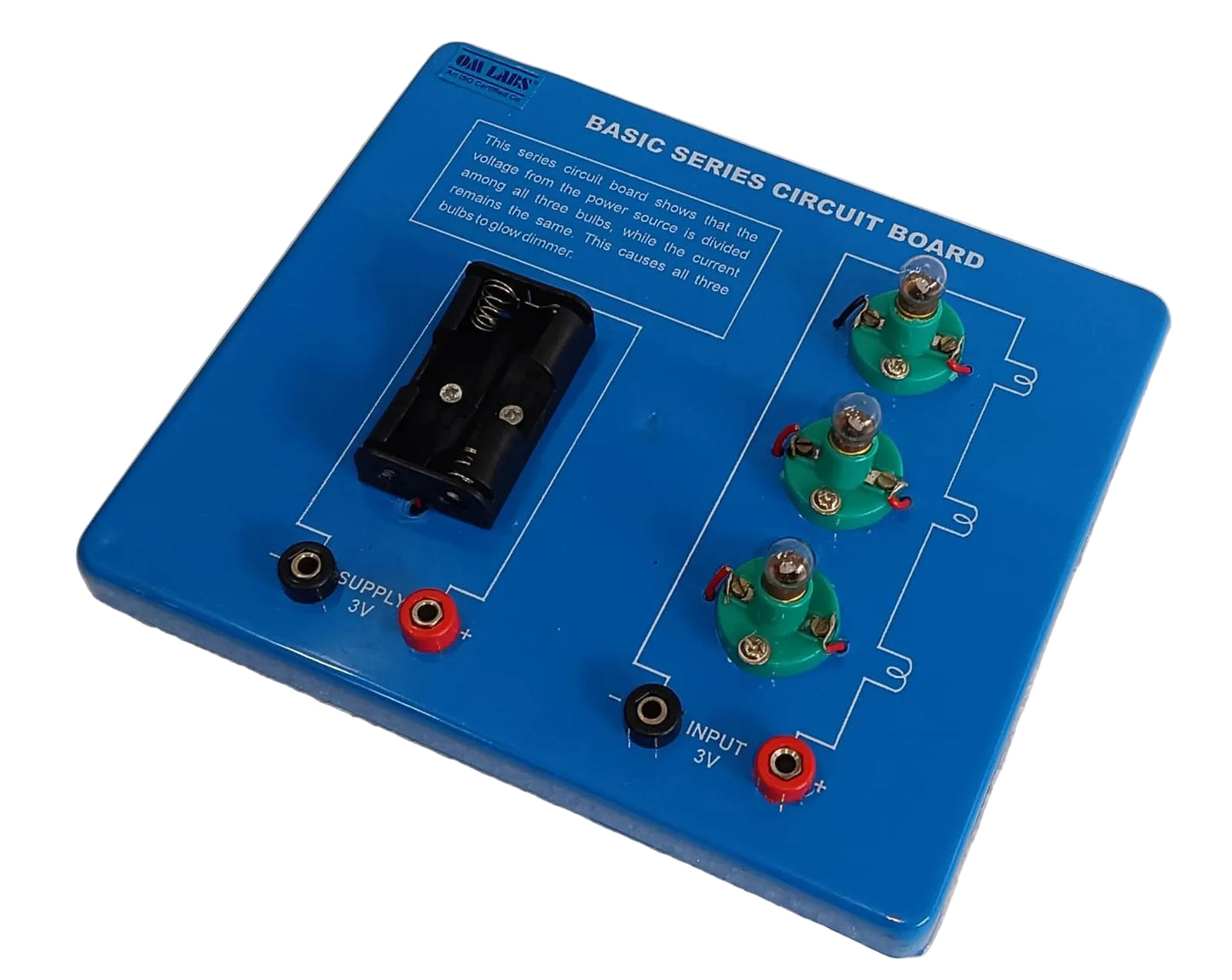

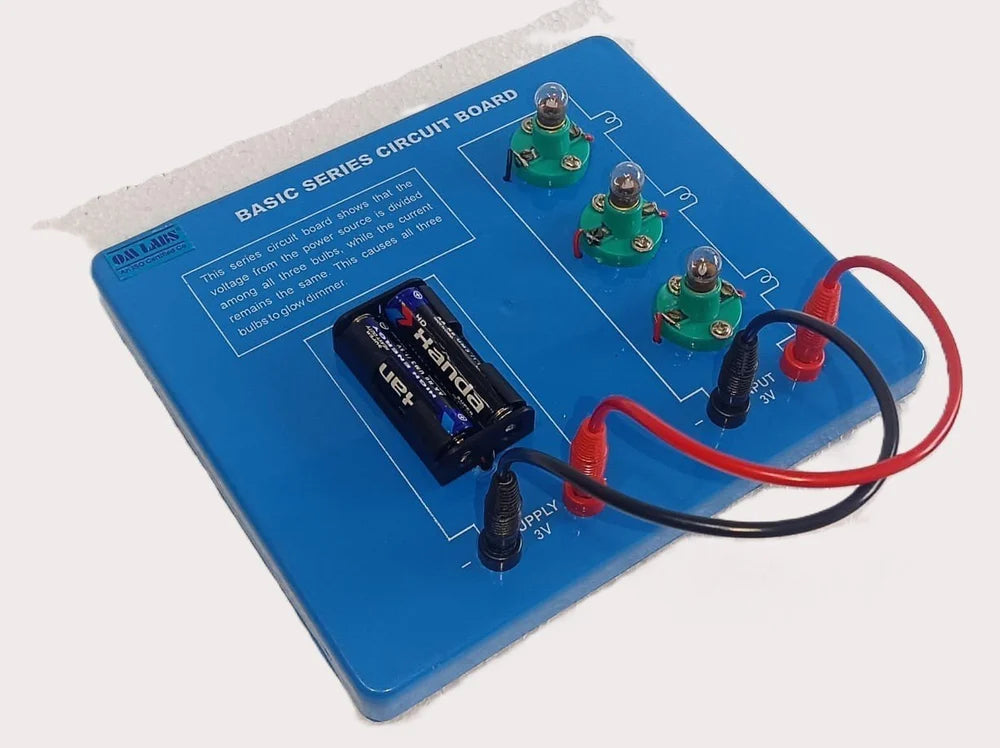

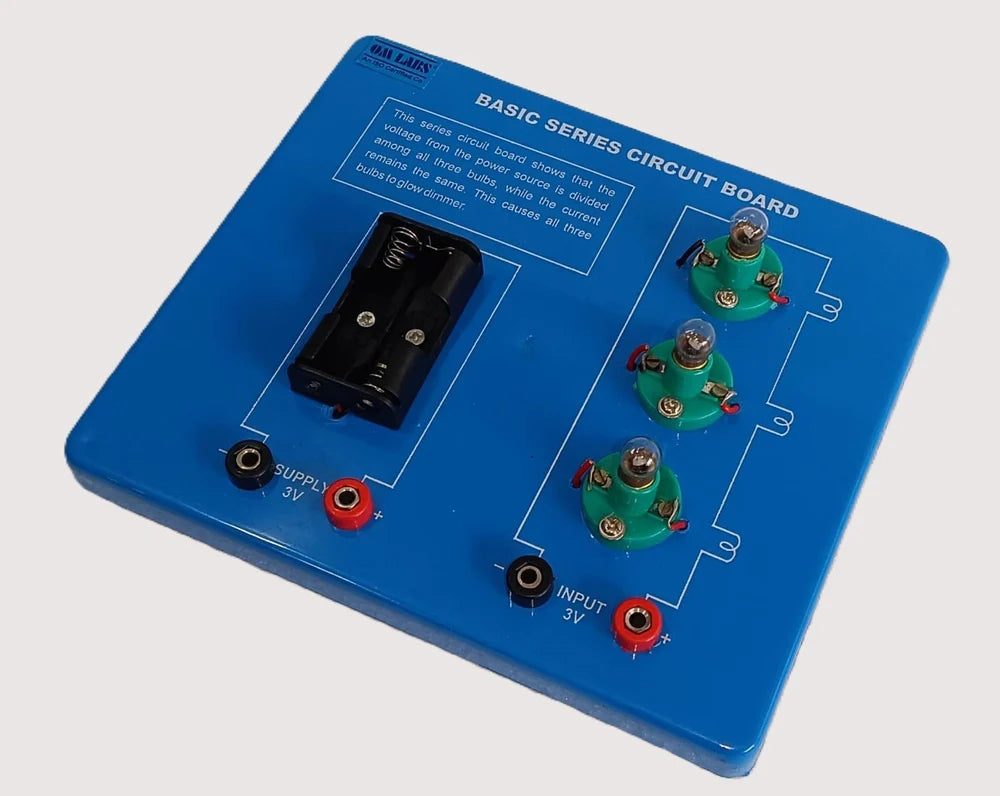

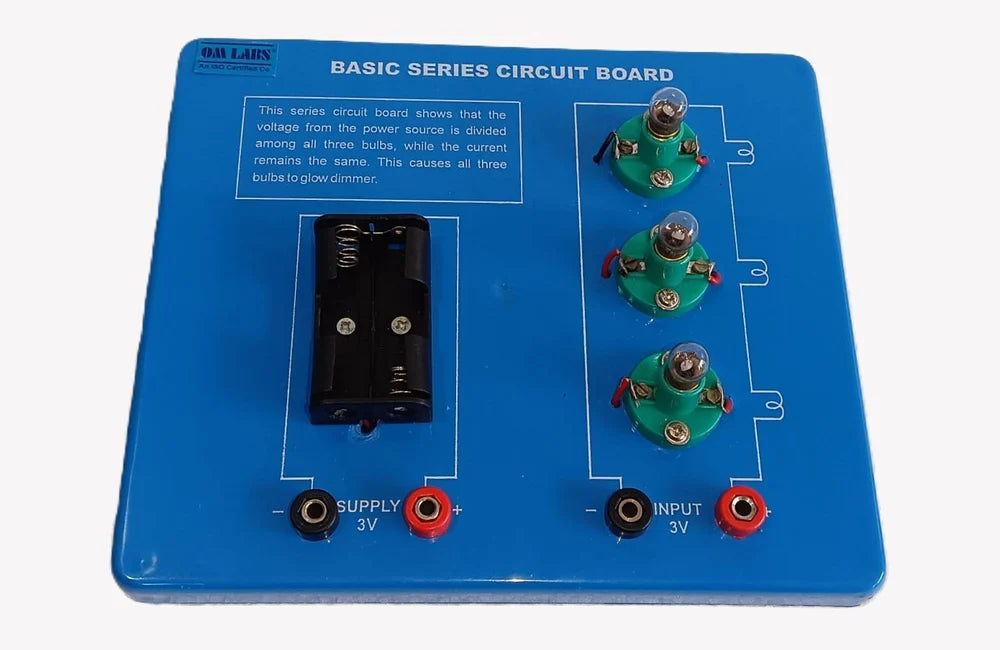

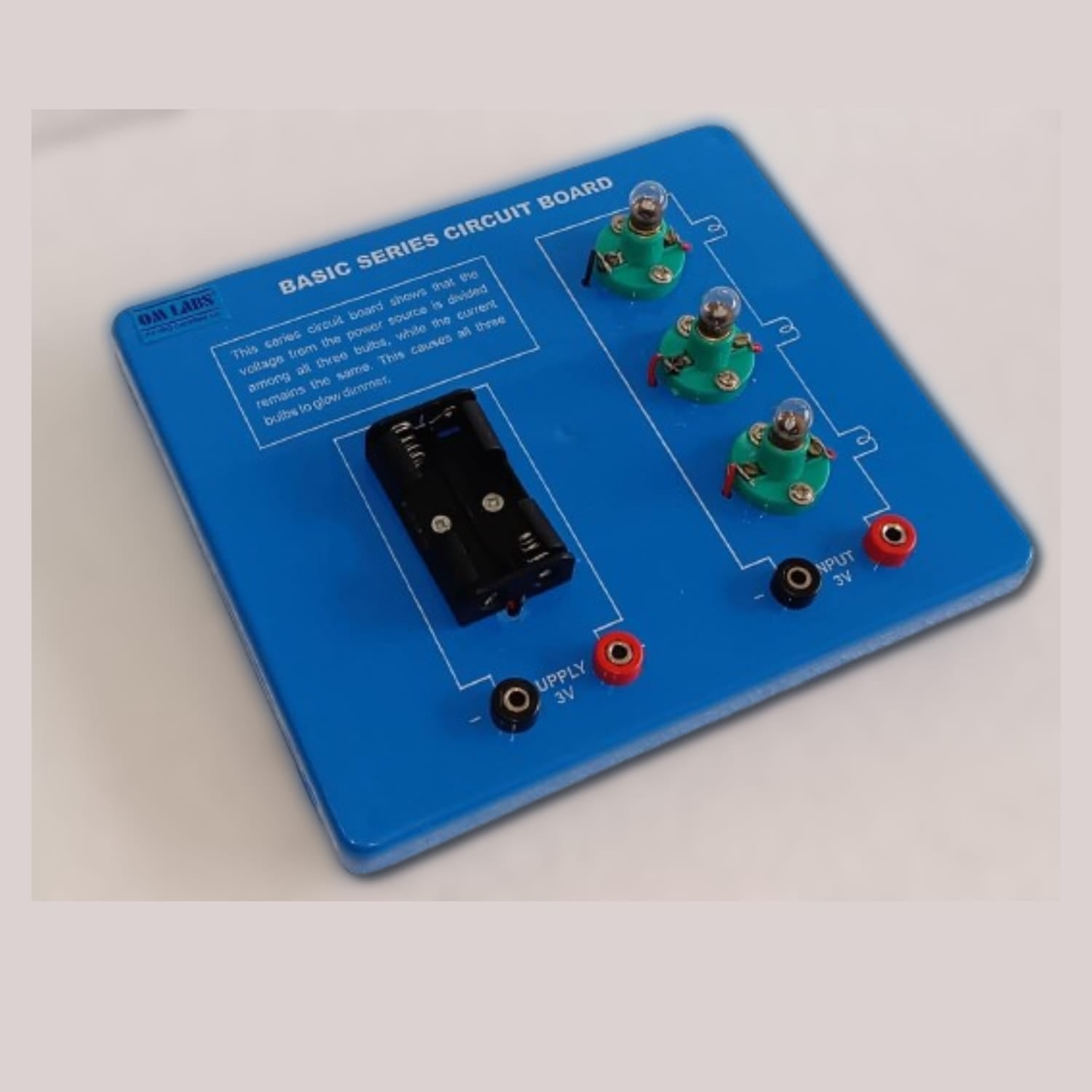

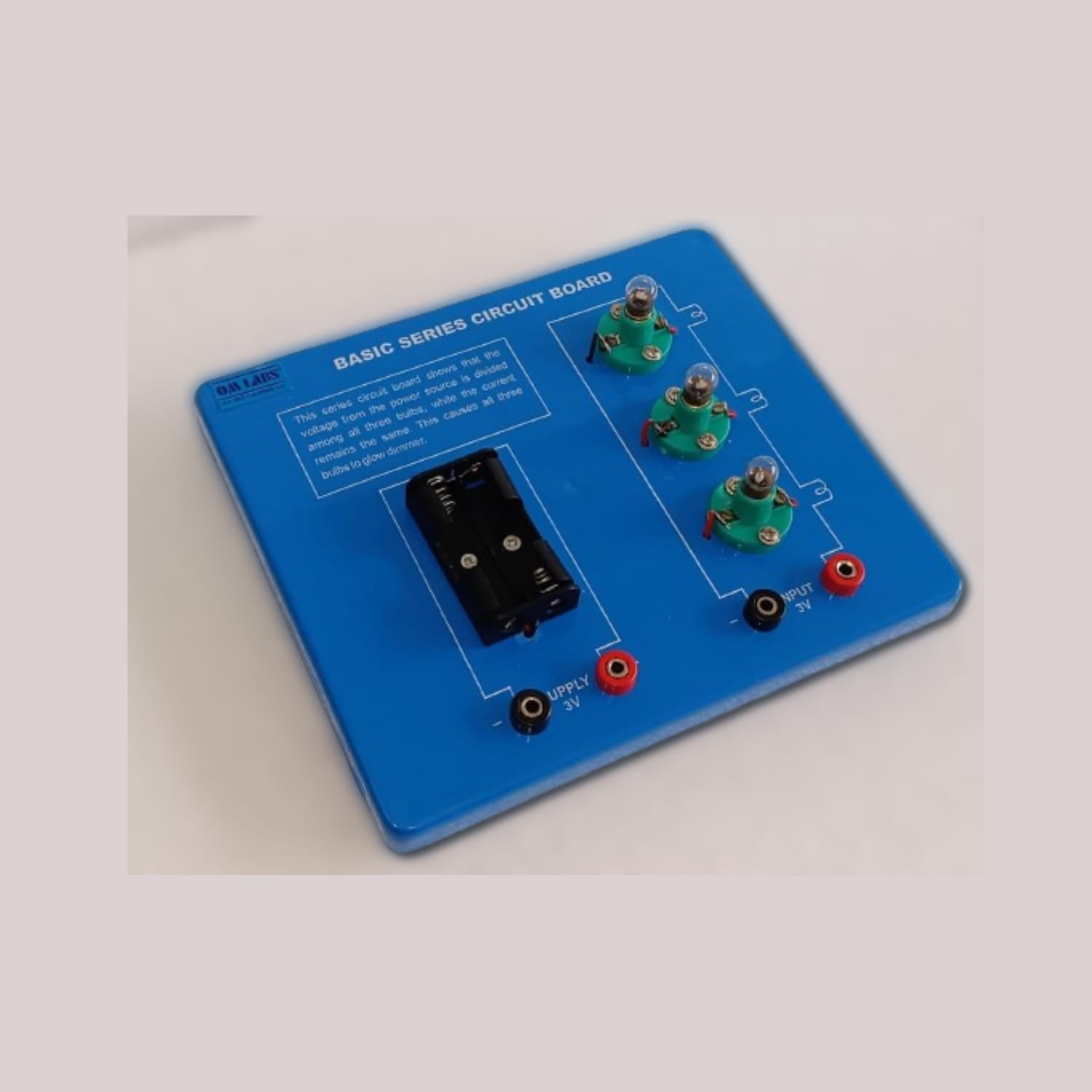

Basic Series Circuit on Board Model

Specification:

Product Name: Basic Series Circuit Board

Component:

Ø  Bulb Holders: 3 mini bulb holders with green bases, connected in series.

Ø  Mini Bulbs: 3 small bulbs (typically rated for 1.5V–3V).

Ø  Battery Holder: Holds (+ and -) batteries (total 3V DC supply).

Ø  Input Terminals: 2 terminals (Red = Positive, Black = Negative) for connecting power supply

Ø  Wires: Red and Black Connecting wire.

Ø  Board Material: Durable blue plastic board,

Ø  Printed Circuit Diagram: Printed circuit path for visual understanding of the series connection.

Electrical Specifications:

Ø  Operating Voltage:3V DC (from 2 (+ and - batteries)

Ø  Circuit Type: Series Circuit

Ø  Bulb Rating: 1.5V or 3V (low voltage)

Ø  Current Flow: Same current flows through all bulbs; voltage is divided across them.

Concept Demonstrated:

·         Voltage division in a series connection

·         When more components are added in series, voltage is shared and bulbs glow dimly

·         Current remains same through all components

• Dimensions:22.5 x 15 x 05cm Approx.
• Weight: 370 gm Approx.
• Packing: Card Board Box
• HSN CODE: 9023
• GST: General Standard 18%
• CATAGORIES: Physics
• BRAND: OM LABS
