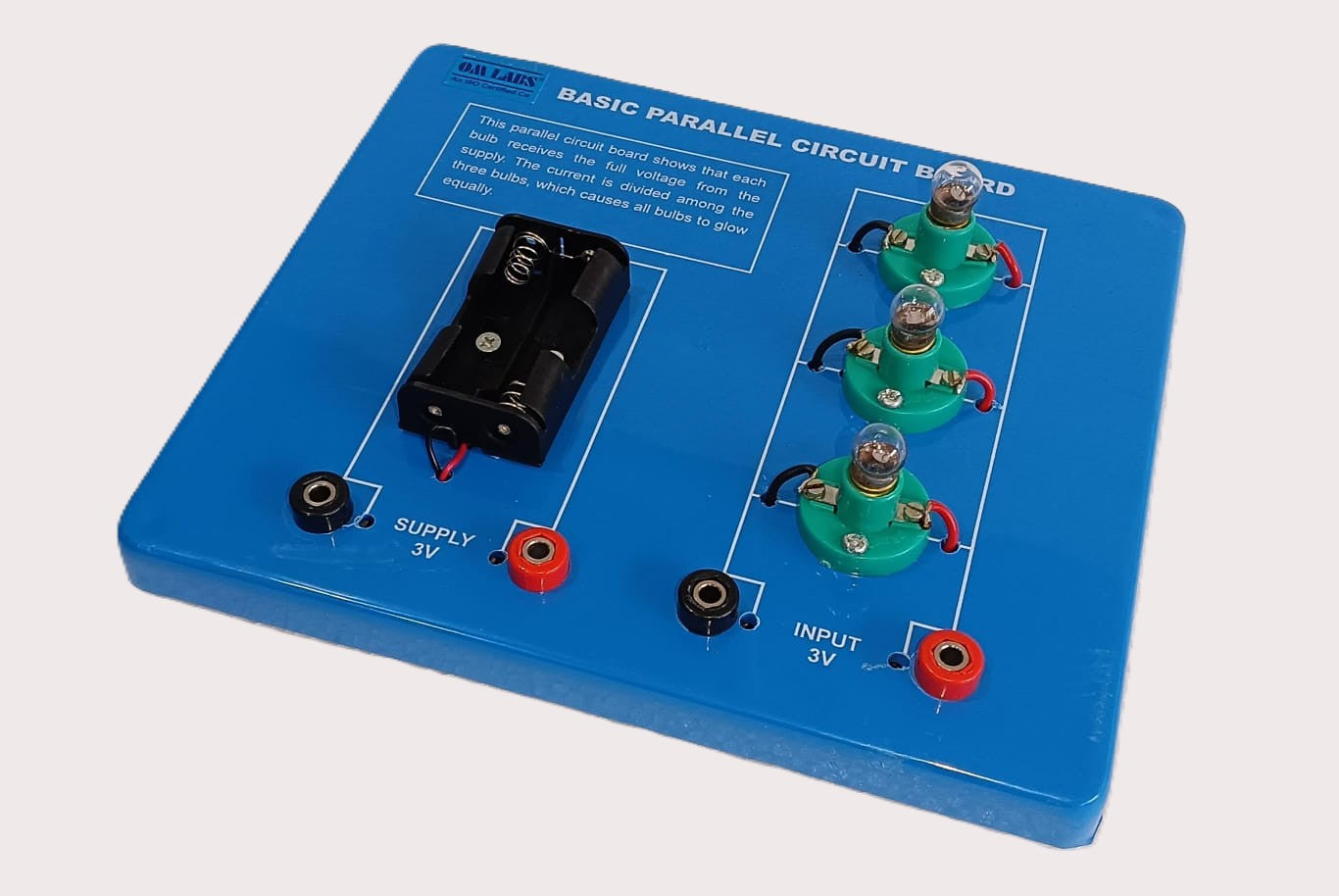

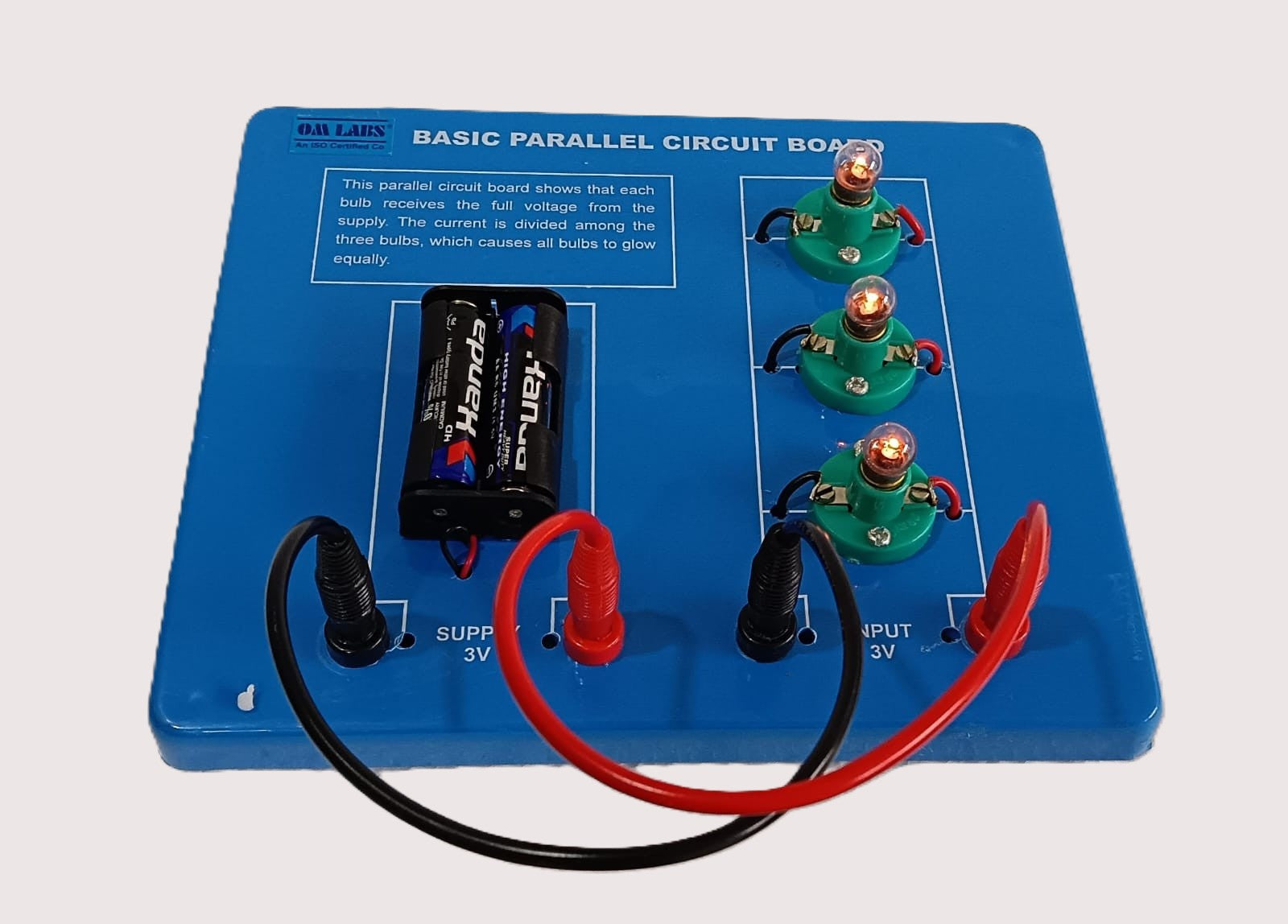

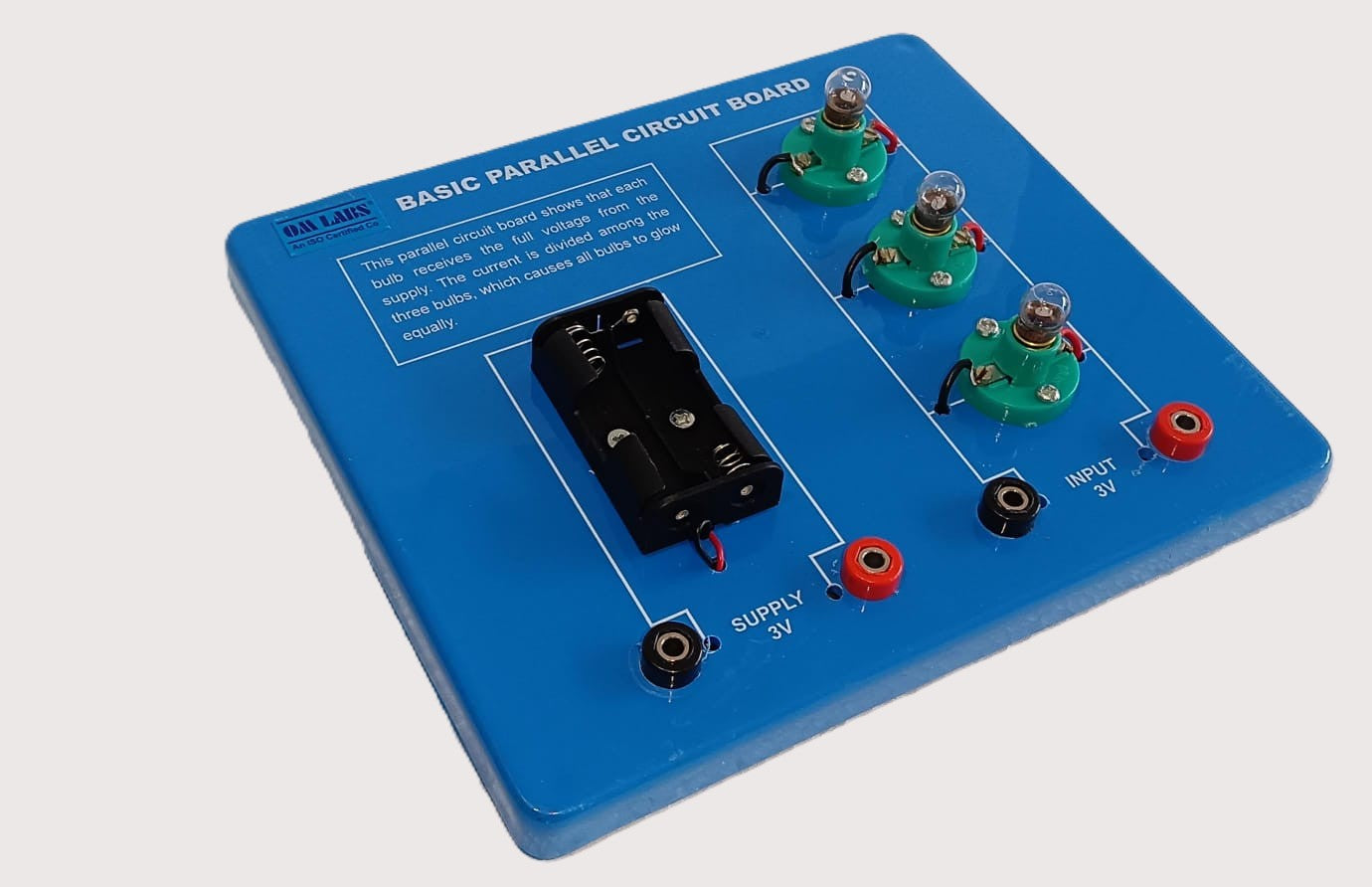

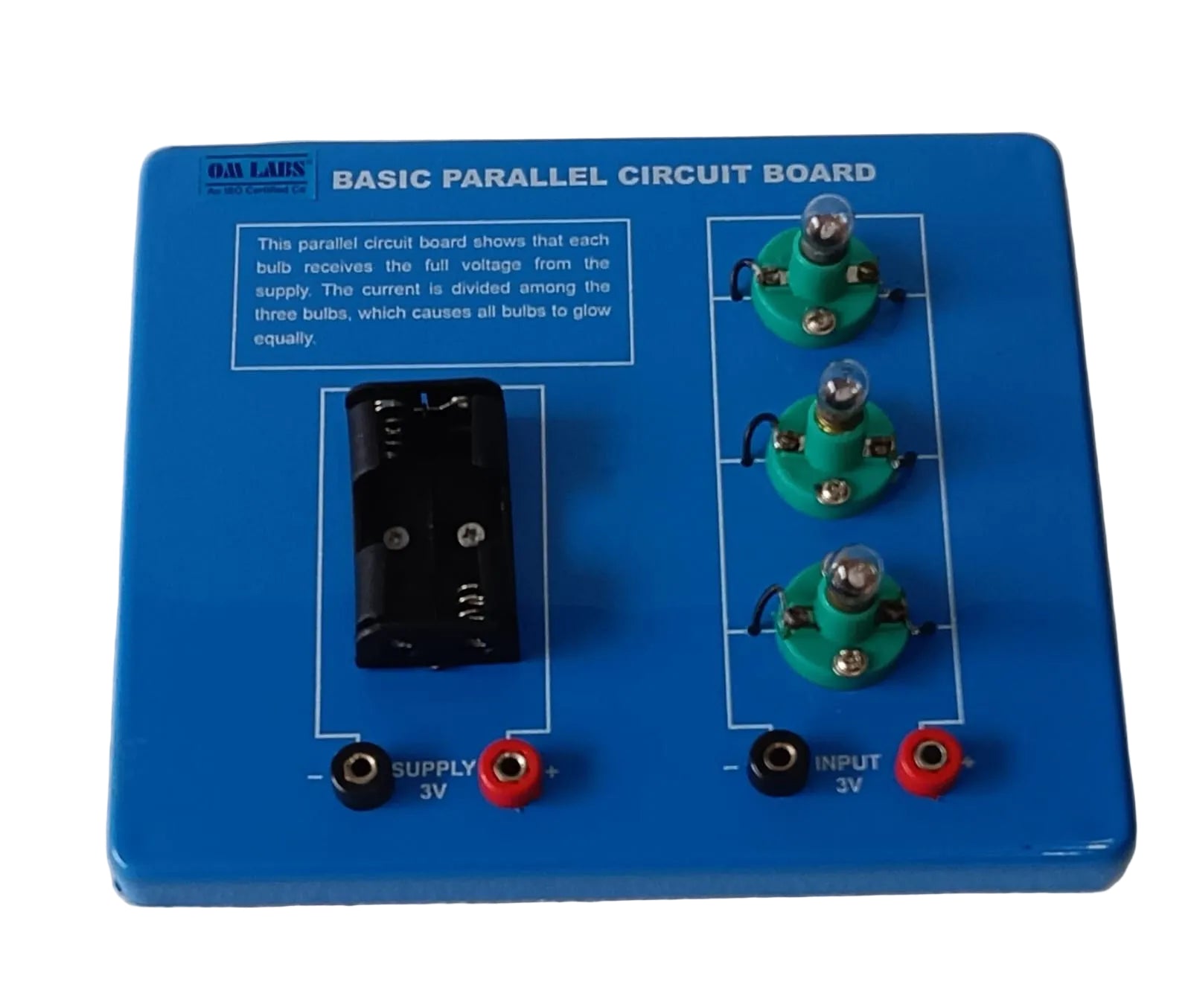

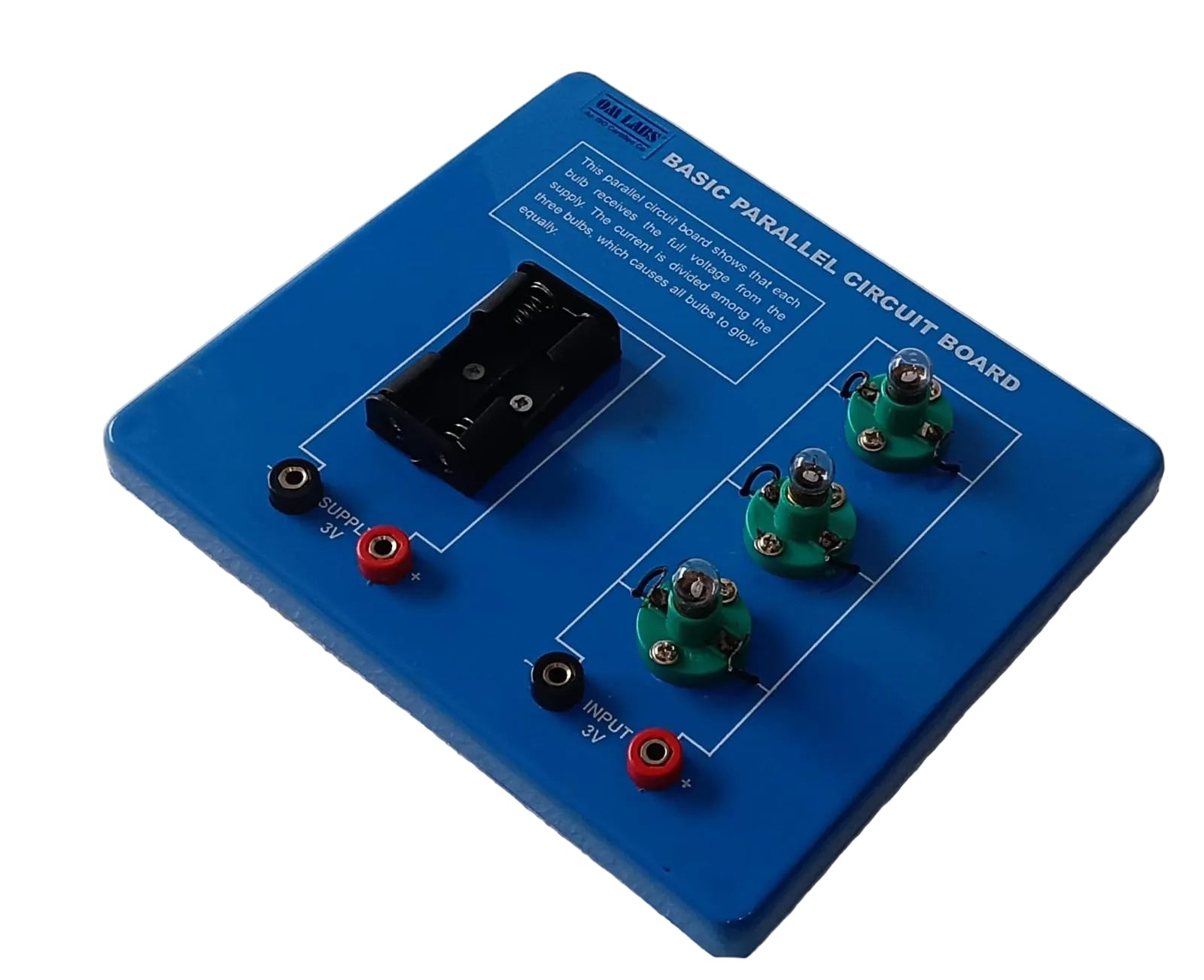

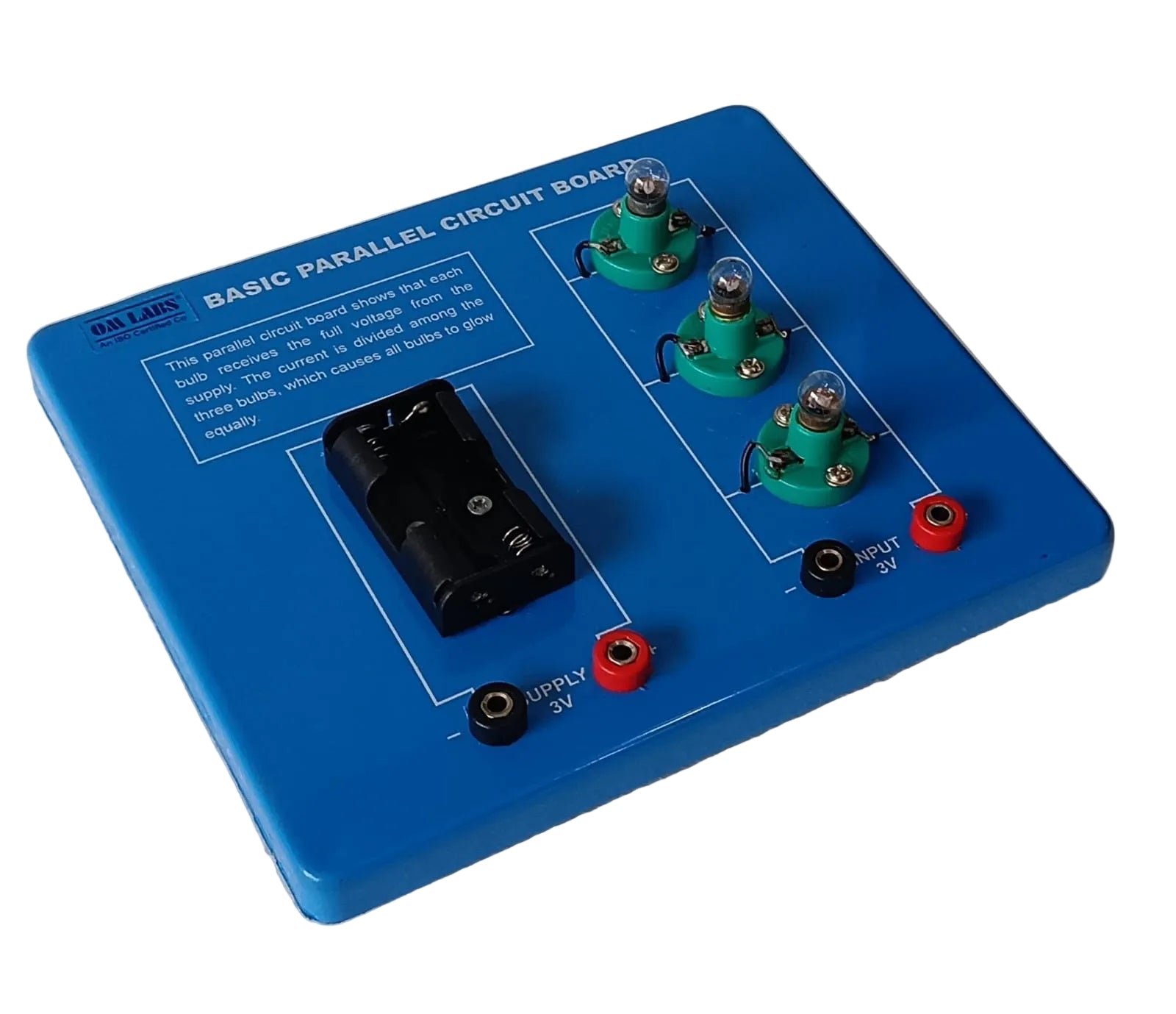

Basic Parallel Circuit Board

Specification:

Ø  Product Name: Basic Parallel Circuit Board

Ø  Function: Educational demonstration model for understanding parallel electrical circuits. It shows how each bulb receives the same voltage but shares the current equally.

Ø  Components Included:

·         Power Supply Holder: Holds 2 × 1.5V AA batteries (total 3V supply).

·         Connecting Terminals:

o    2 supply terminals (3V DC input)

o    2 input terminals connected to the circuit

·         Wiring:

o    Red wire for positive connection

o    Black wire for negative connection

·         Bulb Holders: 3 miniature bulb holders connected in parallel configuration.

·         Bulbs: 3 small incandescent bulbs (rated for ~3V).

Ø  Voltage Rating: Input Voltage: 3V DC

Ø  Working Principle:

·         Each bulb is connected across the same supply voltage (parallel connection).

·         Voltage across each bulb = Supply Voltage (3V).

·         Current divides among the bulbs, but each bulb glows with the same brightness (indicating equal voltage across each branch).

Ø  Educational Use:

·         Demonstrates principles of parallel circuits.

·         Used in physics or electrical labs for students learning about Ohm’s law, voltage division, and current flow in parallel connections.

Ø  Construction Material:

·         Base: Insulated plastic board (blue).

·         Connectors: banana plug terminals.

• Dimensions:22.5 x 15 x 05cm Approx.
• Weight: 370 gm Approx.
• Packing: Card Board Box
• HSN CODE: 9023
• GST: General Standard 18%
• CATAGORIES: Physics
• BRAND: OM LABS
