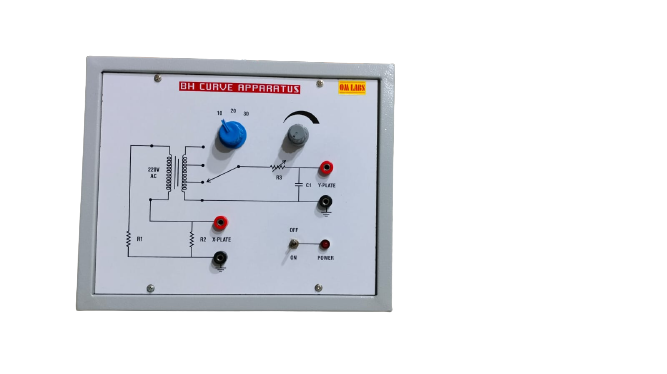

B H Curve Apparatus

Specifications:

The B-H Curve Apparatus is usually used to describe the magnetization properties of such materials by characterization the permeability which is defined as ; where and represent the magnetic flux density in tesla (T). The magnetic field intensity in ampere per meter (A/m) respectively.

The B-H Curve or magnetization curve is the graph plotted between magnetic flux density (B) and magnetizing force (H). The B-H Curve indicates the manner in which the magnetic flux density varies with the change in magnetizing force.

Extra Accessories:

CRO

The instrument comprises of the following built in parts:

• AC step down transformer of 10V AC to 30V AC in steps of 10Volts.
• One sample coil is kept inside the cabinet (No. of turns N=1430, Length L=0.033 meter)
• Circuit diagram is printed on the front panel and provision has been made for connecting CRO.
• Body: Metal
• Packing : Corrugated Box
• Weight: 2 kg Approx.
• Dimensions: 28.5 cm X 25.5 cm X 11 cm Approx.
• GST: General Standard 18%
• HSN Code: 8541
• Brand: OM LABS
