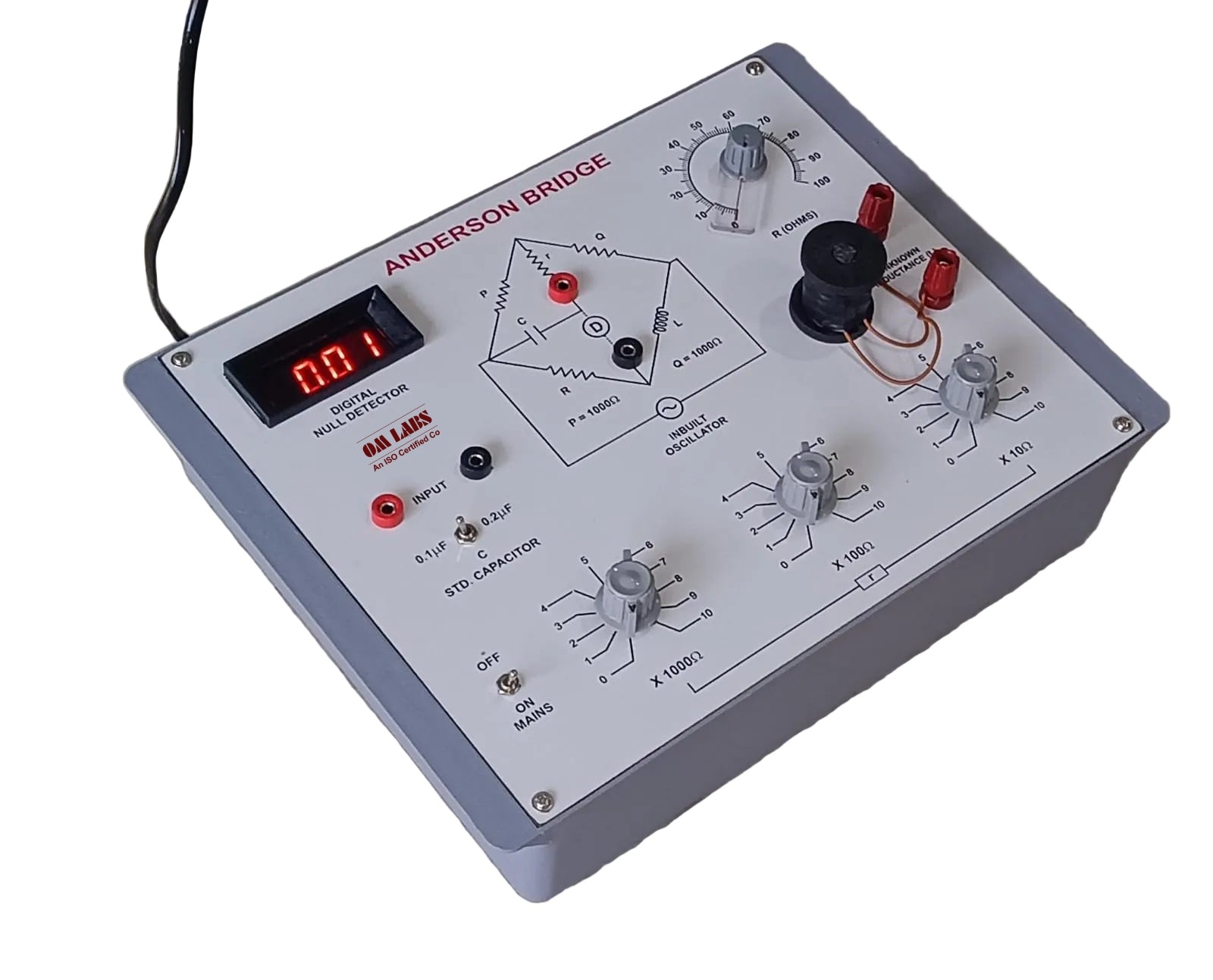

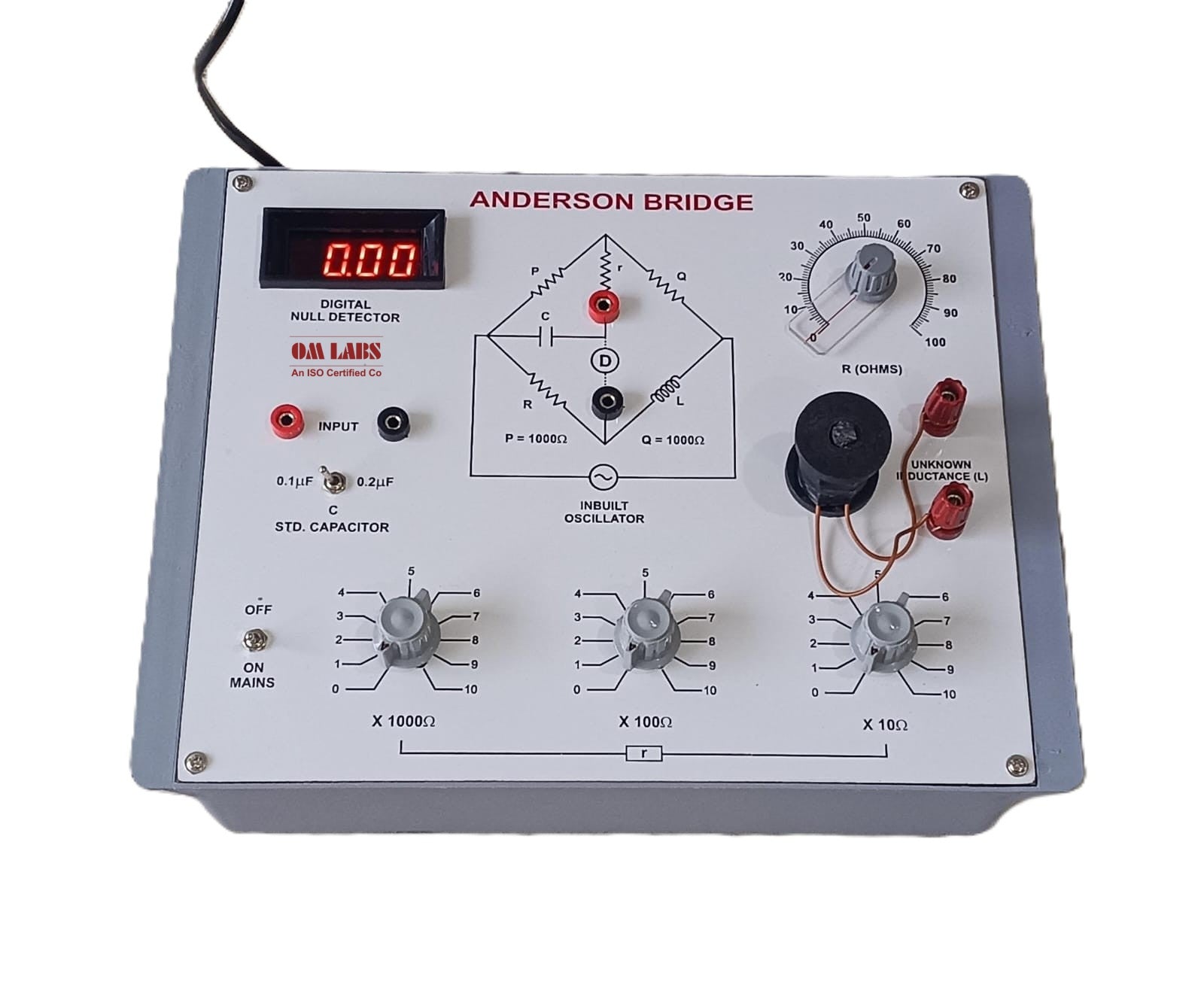

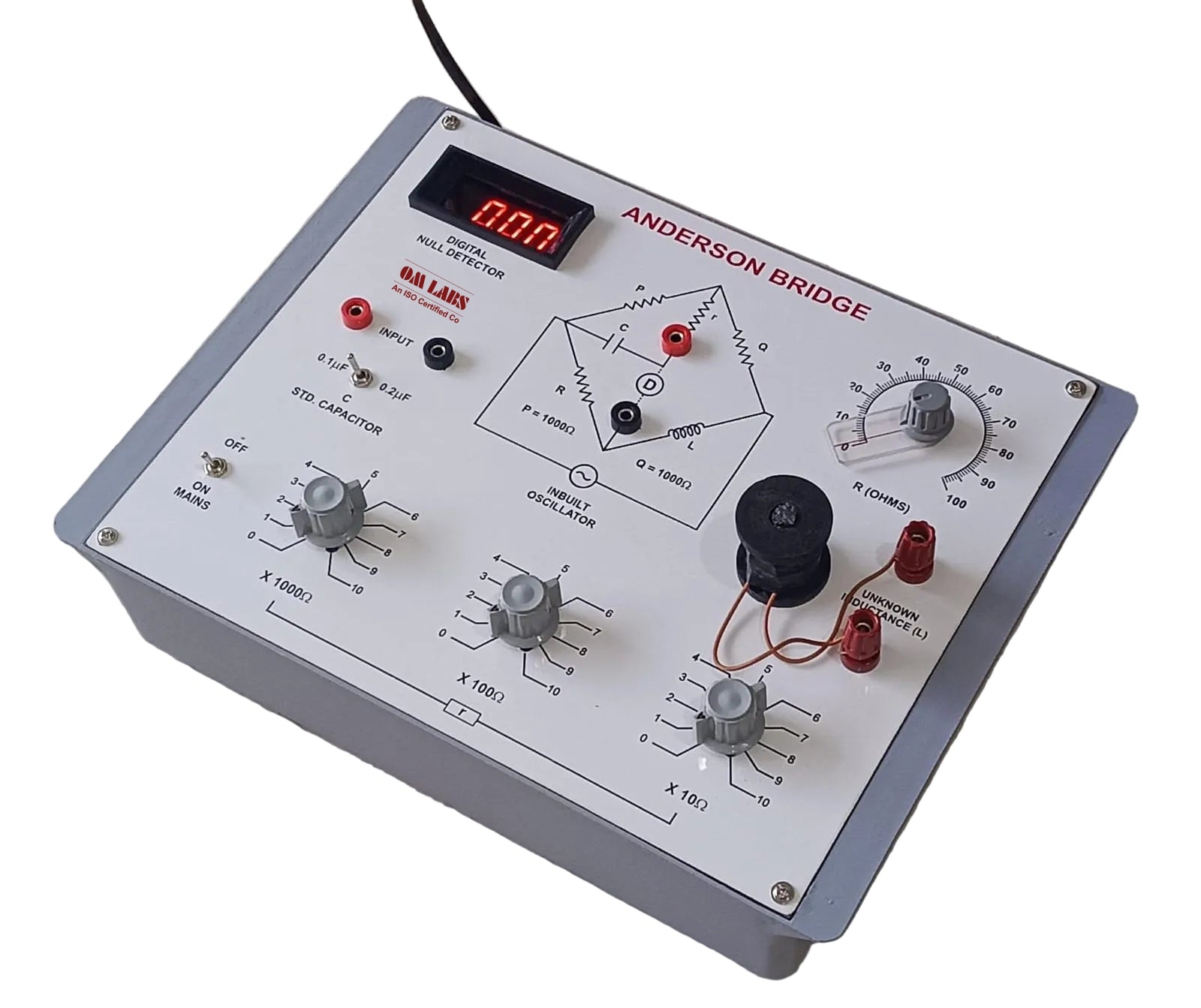

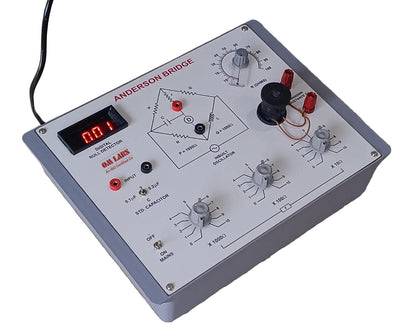

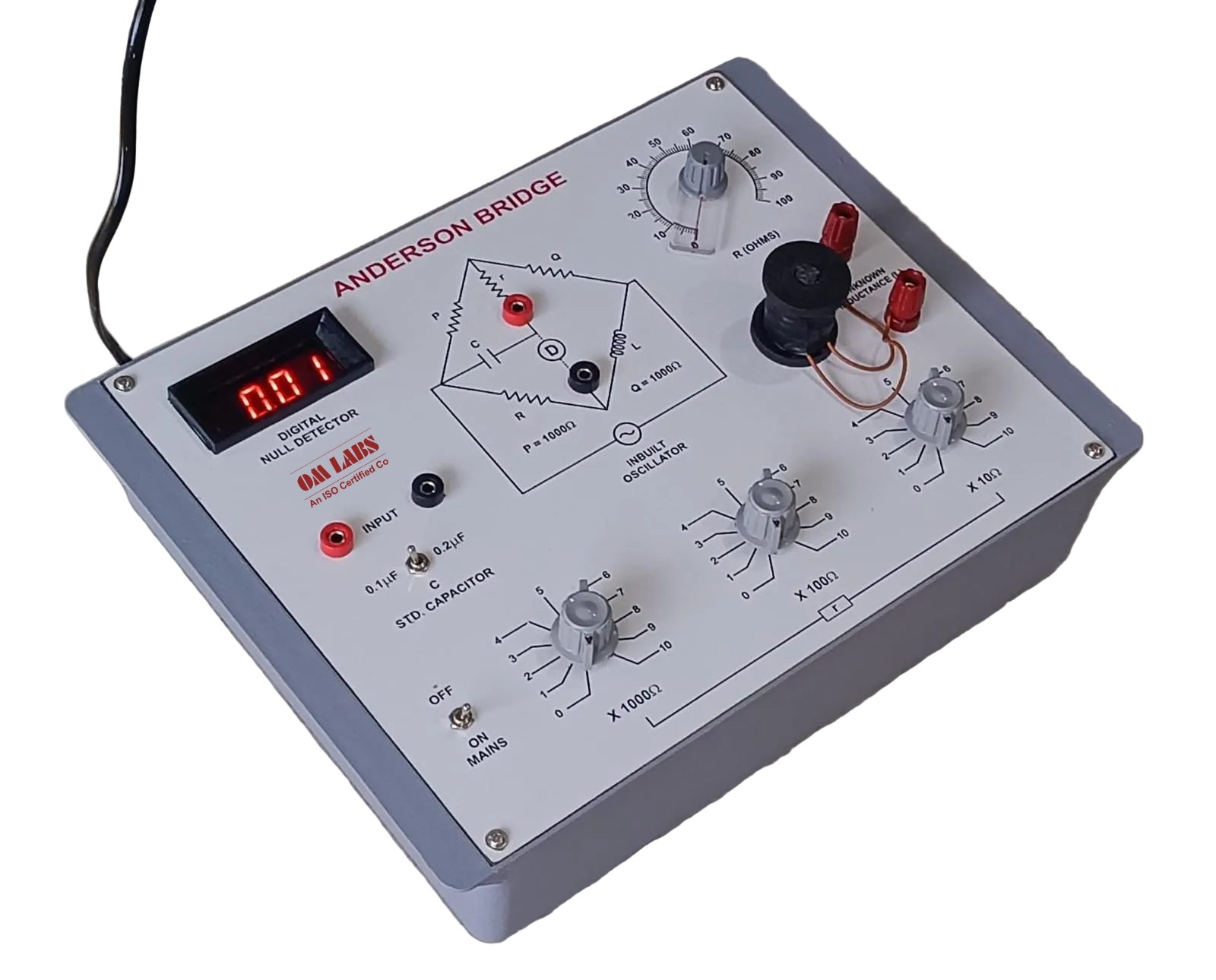

Anderson Bridge with Null detector & Oscillator (Plastic Box)

Anderson Bridge with Null detector & Oscillator (Plastic Box)

DISPATCHED WITHIN 1-5 Days
24 HOURS RETURN/EXCHANGE POLICY
Rs. 6,300.00
Rs. 9,000.00 Rs. 6,300.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-713/P
Tags: Anderson Bridge , Anderson Bridge (Plastic Box) , Anderson Bridge with Null detector & Oscillator (Plastic Box) , Anderson Bridge With Null Detector & Oscillator , Anderson Bridge With Null Detector & Oscillator with Wooden Box , De-Sauty Bridge , De-Sauty Bridge with Null detector & Oscillator , Digital Anderson Bridge , Educational Kits , electronics , Portable Wheatstone Bridge , potentiometer wheatstone bridge , Wheatstone bridge , Wheatstone Bridge With Galvanometer & Inbuilt Power Supply Plastic Box
View full details

Specification:

v  Anderson Bridge (With Inbuilt Oscillator 1 khz And Digital Null Detector)

v  Experiment: Measurement of a Unknown Self - Inductance Using Anderson Bridge.

v  Main Features of The Bridge

o  R --- A Continuously Variable Resistance From 0-100 Ohms

o  R — Three Decade Resistance Dials Having Value 10x1000 Ohm’s, 10x100 Ohm’s,10x10 Ohm’s

o  P=Q — Fixed Standard Resistances having value 1000 Ohms.

o  C — Two Fixed Standard Capacitors Having Value 0.1Uf and 0.2Uf. (Loss Free)

o  L — Unknown Inductance.

v  Terminals Are Provided for External Connections To Connect Unknown Inductance And Digital Null Detector Or Head Phone.

v  Formula Used: L=C R(Q-2r)

Where Q is a known standard resistance 1000 ohms and C is a standard known capacitor. R and r are known resistances from resistance dials.

  • Dimensions: 29.5 x 21.5 x 11.5 cm Approx.
  • Weight: 1.4 kg Approx.
  • Packing: Card Board Box
  • HSN CODE: 9023
  • GST: General Standard 18%
  • CATAGORIES: Electronics
  • BRAND: OM LABS
Weight

3.5 kg

Dimensions 16 × 32 × 30 cm
