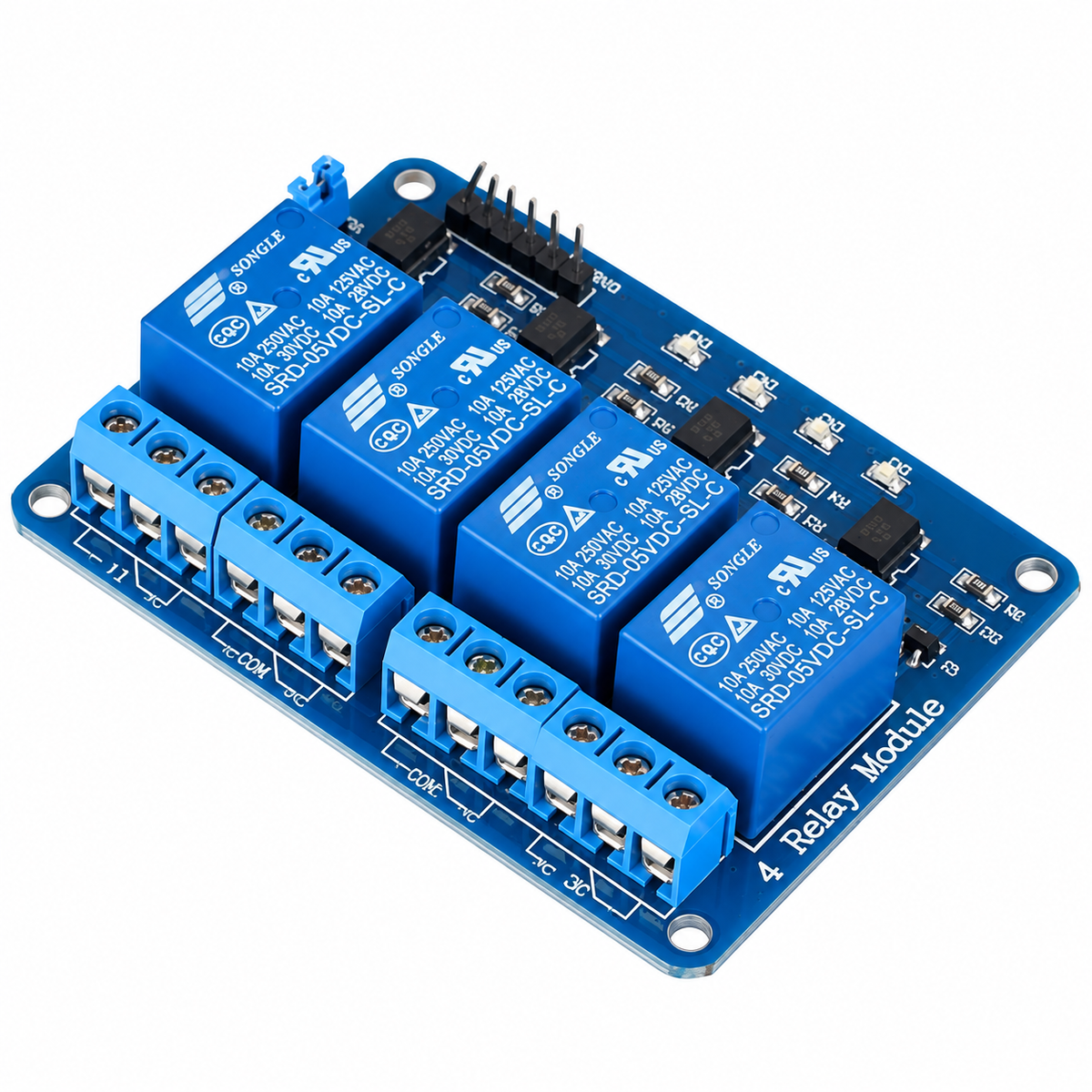

5V 4-Channel Relay Module

5V 4-Channel Relay Module

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 219.00
Rs. 312.00 Rs. 219.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31057/2
Tags: 4 Channel Relay , 4 Channel Relay Module , 4CH Relay Board , 5V 4CH Relay , 5V Relay Module , 5V Switching Module , Arduino Projects , Arduino Relay Module , Automation Module , DIY Electronics , Electronic Switching , Embedded Projects , Home Automation , IoT Relay Module , IoT Sensors and Modules , Microcontroller Relay , PCB Relay Board , Raspberry Pi Relay , Relay Board , Robotics and IoT
View full details

Specification: The 5V 4-channel relay module is an electromechanical switching device used to control high-voltage or high-current appliances using low-voltage signals from microcontrollers like Arduino or Raspberry Pi. In a laboratory setting, it is commonly used for automated control of peripheral equipment such as stirrers, pumps, solenoids, or lighting systems.

Technical Specifications:
* Channels: 4 independent relays
* Coil Voltage: 5V DC
* Maximum Load (AC): 10A / 250VAC
* Maximum Load (DC): 10A / 30VDC
* Trigger Signal: TTL level (compatible with 3.3V or 5V logic)
* Interface: Opto-isolated inputs for circuit protection
* Connection: Standard screw terminals for high-voltage output and pin headers for control inputs
* Status Indicators: On-board LED indicators for each relay channel
* Switching Type: Normally Open (NO) and Normally Closed (NC) contacts per channel

Package: 11.5 x 5.5 x 2cm
Weight: 49gm

(The dimensions and weight mentioned in the additional information section are of the product with box/packaging.)

Weight

0.235 kg

Dimensions 7 × 10 × 16.5 cm
