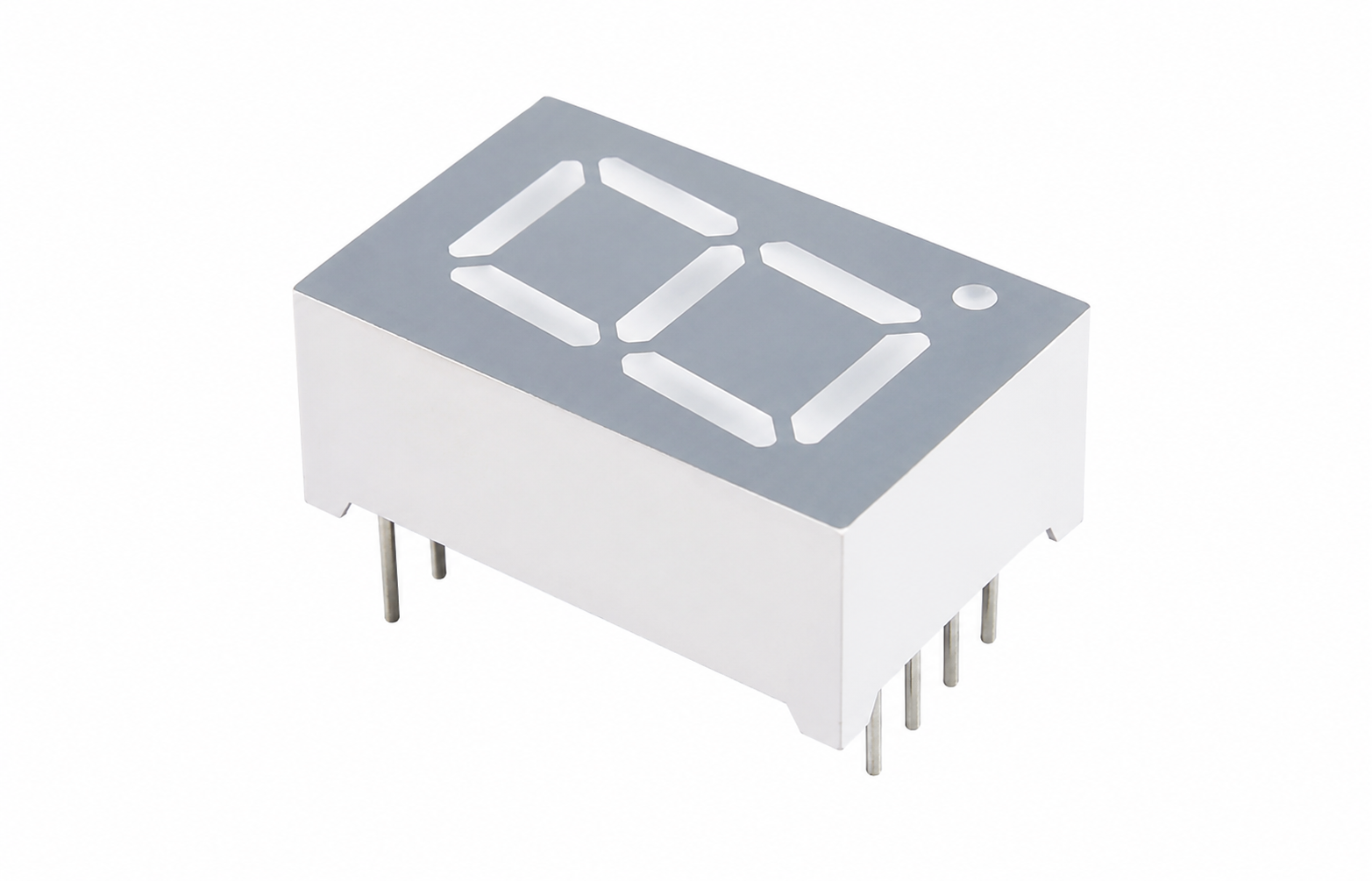

1 Digit Seven Segment Display

1 Digit Seven Segment Display

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 9.00
Rs. 13.00 Rs. 9.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31090
Tags: 1 Digit 7 Segment Display , 7 Segment LED Display , Arduino 7 Segment Display , Calculator Display , Clock Display Module , Common Anode Display , Common Cathode Display , Control Panel Display , Digital Circuit Display , Digital Counter Display , Digital Display Module , DIY Electronics , Electronic Parts , Electronics Component , Embedded System Display , ESP32 Display , Indicator Display , Learning Electronics , LED Display , LED Module , Maker Project , Microcontroller Display , Number Display , Numeric Indicator. , Numeric LED Display , One Digit LED Display , PCB Display , Raspberry Pi Display , Seven Segment Display , Single Digit Display
View full details

Specification: A 1-digit 7-segment display is an optoelectronic component used to represent numerical digits 0–9 via seven individual LED segments. In a laboratory setting, it is primarily used for rapid prototyping of instrumentation, status indicators on custom control panels, and real-time visual monitoring of digital counter outputs.

Technical Specifications:
* Digit Height: Typically 0.28 to 2.3 inches
* Configuration: Common Anode or Common Cathode
* LED Color Options: Red, Green, Blue, Yellow, or White
* Forward Voltage: 1.8V to 3.3V per segment
* Operating Temperature: -40°C to +85°C
* Peak Forward Current: 20mA to 30mA per segment
* Interface: Parallel 10-pin or 12-pin DIP mounting
* Surface Color: Grey or Black face with milky white diffused segments
Dimensions:19*12*11mm
Weight: 1gm

Weight

0.025 kg

Dimensions 5 × 5 × 5 cm
